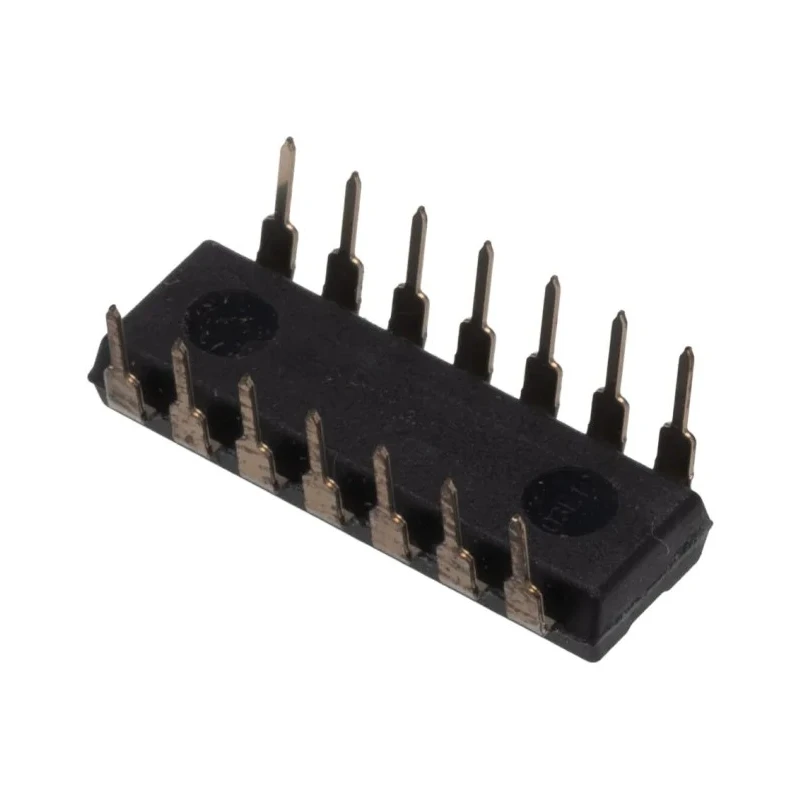

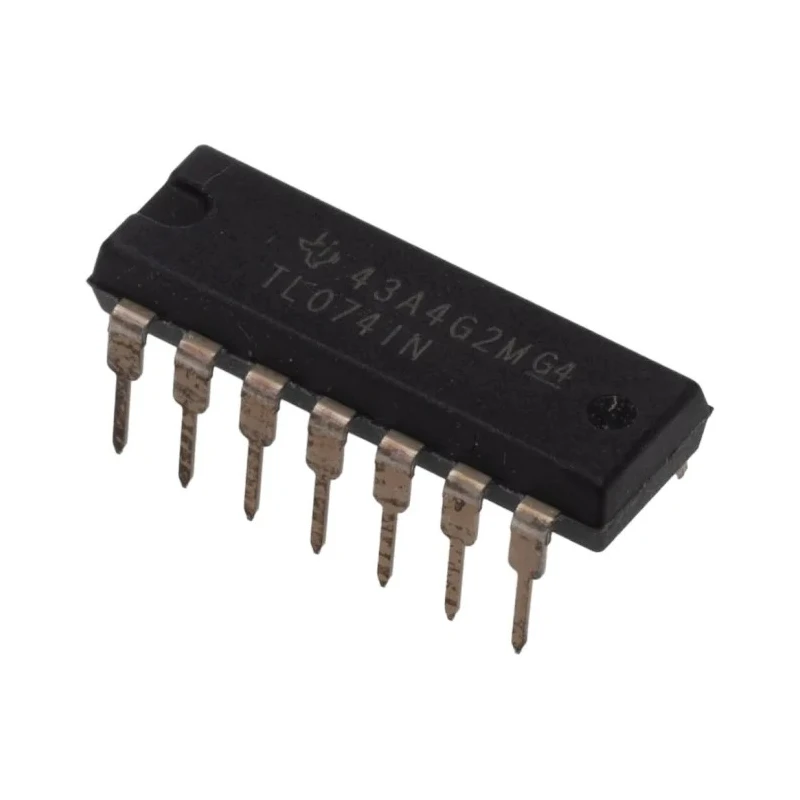

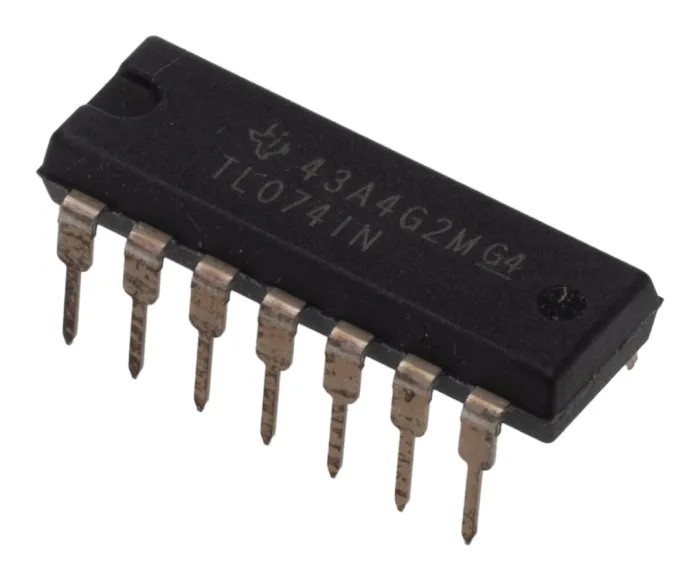

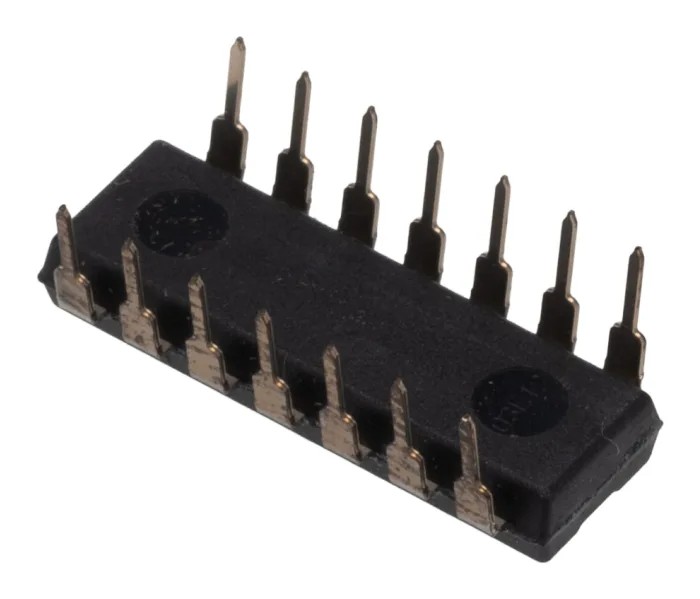

Texas Instruments Operational Amplifier , 3 MHz Gain Bandwidth, 14-Pin PDIP Package, 15V MAX Through Hole Mount TL074IN

Texas Instruments TL074IN is a high-performance operational amplifier designed for industrial, laboratory, and electronic applications. It features a 3 MHz gain bandwidth product with a 14-Pin PDIP package and through hole mount suitability. The JFET input topology minimizes input bias and offset currents, making it ideal for precision audio and signal processing circuits.

This quad op amp device supports a wide supply voltage range from ±5 V to ±15 V, allowing flexible power configurations. Its low noise characteristics (18nV/√Hz typical at 1 kHz) and high slew rate of 13 V/μs enable fast and clean amplification suitable for demanding applications requiring low distortion and low signal interference.

The device operates reliably over a temperature range from -40°C to 85°C, making it suitable for industrial environments. The 14-pin PDIP package dimensions (19.3mm length, 6.35mm width, 4.57mm height) facilitate through hole mounting on printed circuit boards.

Key precision attributes include a low input offset voltage of 8 mV, input offset current of 2 nA, and input bias current of 7 nA, which contribute to stable and accurate amplification in sensitive circuits. The quad-channel configuration integrates four amplifiers into a single device, enhancing compactness and efficiency.

This operational amplifier finds diverse use in electronics manufacturing, audio equipment design, laboratory instrumentation, measurement systems, and other industrial electronic applications requiring high accuracy and reliability.

This op amp is a JFET input device suited for audio and signal processing applications. It offers low input bias currents for minimal circuit loading effects. The device operates with a wide supply range of ±5 to ±15V supporting versatile designs.

Low noise of 18nV/√Hz typical at 1 kHz ensures high signal integrity. It exhibits a high slew rate of 13 V/μs typical for fast signal response. The total harmonic distortion is low at 0.003% typical for high fidelity amplification.

Operating temperature range is from -40°C to 85°C to cover various environments. The PDIP package measures 19.3mm in length and 6.35mm in width, suitable for through hole PCB mounting. Inputs include low input offset voltage (8 mV) and input offset current (2 nA) for precision applications.

This device includes 4 independent amplifier channels in one package. Explore EnvMart for a wide range of Operational Amplifiers and related semiconductor components for all your electronics design and manufacturing needs.
