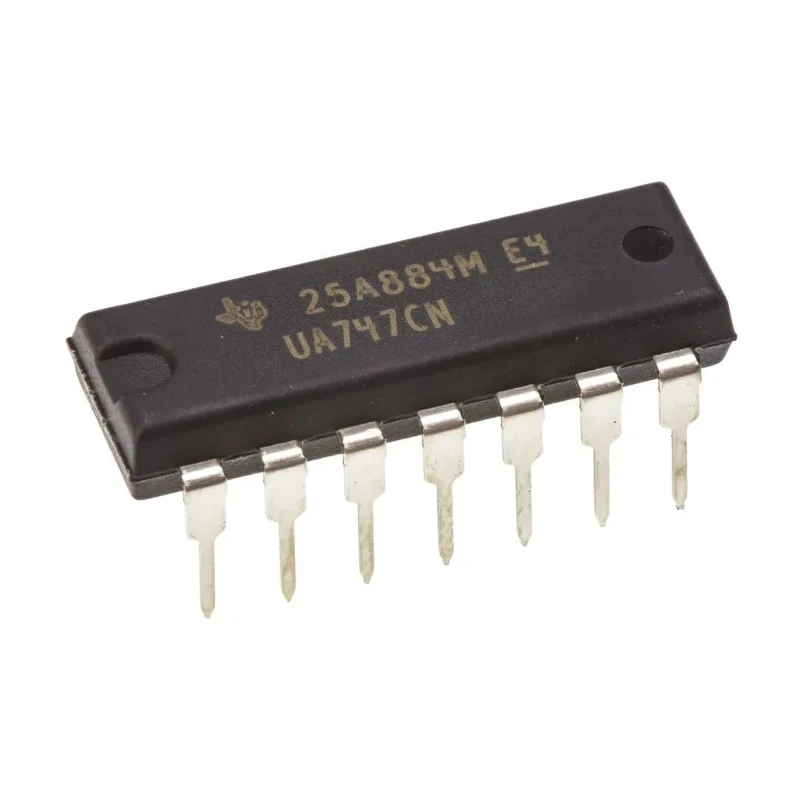

Texas Instruments Operational Amplifier 1 MHz 14-Pin 18V PDIP UA747CN
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 19.3mm |
| Model | UA747CN |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Series | UA747CN |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 2 |
| Pin Count | 14 |
| Maximum Supply Voltage | 18V |
| Minimum Supply Voltage | -18V |
| GBP - Gain Bandwidth Product | 1MHz |
| Input Bias Current | 800 nA |
| Vos - Input Offset Voltage | 7.5 mV |
| Slew Rate | 0.5V/μs |
| Input Offset Current | 300 nA |
Key Features
- This operational amplifier supports a dual channel configuration for varied applications.
- Through-hole mount type for easy PCB integration.
- Operates with supply voltage range from -18V to 18V.
- Input offset voltage rated at 7.5 mV ensuring precision.
- Slew rate of 0.5 V/µs for moderate signal response speed.
- Operating temperature ranges from 0°C to 70°C suitable for industrial environments.
- Compact dimensions of 19.3 mm length, 6.35 mm width, and 4.57 mm height.
- Package type is PDIP with 14 pins designed for general purpose use.
Product Description
Texas Instruments UA747CN is a high-quality operational amplifier designed for general purpose amplification tasks in electronic and semiconductor applications. It features a gain bandwidth product (GBP) of 1 MHz and is housed in a 14-pin PDIP package which supports through-hole mounting, making it compatible with standard printed circuit boards.
This model operates efficiently with a supply voltage range of -18V to 18V, providing flexibility for diverse circuit requirements. The input offset voltage of 7.5 mV and input bias current of 800 nA allow for precision amplification with minimal signal distortion.
The UA747CN incorporates a moderate slew rate of 0.5 V/µs, enabling it to handle reasonably fast signal changes without significant delay. Its operating temperature range from 0°C to 70°C ensures reliable performance in typical industrial and commercial environments.
Physically compact, the amplifier measures 19.3 mm in length, 6.35 mm in width, and 4.57 mm in height, making it straightforward to incorporate into space-constrained designs. This product does not hold specific automotive standards but adheres to general quality manufacturing practices, with its country of origin being Mexico.
This operational amplifier supports a dual channel configuration for varied applications. Through-hole mount type for easy PCB integration. Operates with supply voltage range from -18V to 18V. Input offset voltage rated at 7.5 mV ensuring precision.
Slew rate of 0.5 V/µs for moderate signal response speed. Operating temperature ranges from 0°C to 70°C suitable for industrial environments. Compact dimensions of 19.3 mm length, 6.35 mm width, and 4.57 mm height. Package type is PDIP with 14 pins designed for general purpose use.
Origin manufactured in Mexico ensuring quality assurance.
This Texas Instruments UA747CN Operational Amplifier is ideal for electronic circuit designers and engineers engaged in industrial, laboratory, and semiconductor device development projects. Explore more amplifiers and semiconductor components from Texas Instruments at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product (GBP) of the UA747CN is 1 MHz, making it suitable for a variety of amplification tasks.
It operates with a supply voltage range from -18V to 18V, providing flexibility for diverse circuit requirements.
The input offset voltage is rated at 7.5 mV, ensuring precision in amplification with minimal signal distortion.
The UA747CN has a slew rate of 0.5 V/µs, allowing it to handle reasonably fast signal changes without significant delay.
This model measures 19.3 mm in length, 6.35 mm in width, and 4.57 mm in height, making it compact for various applications.
The operational amplifier supports a dual channel configuration, suitable for varied applications.
The input bias current is rated at 800 nA, which contributes to its precision in amplification tasks.
It operates within a temperature range from 0°C to 70°C, suitable for typical industrial environments.
This operational amplifier features a through-hole mount type, facilitating easy integration into printed circuit boards.
The UA747CN is housed in a 14-pin PDIP package, designed for general-purpose use in electronic applications.
The operational amplifier is manufactured in Mexico, adhering to general quality manufacturing practices.
This model is designed for general purpose amplification tasks in electronic and semiconductor applications.
