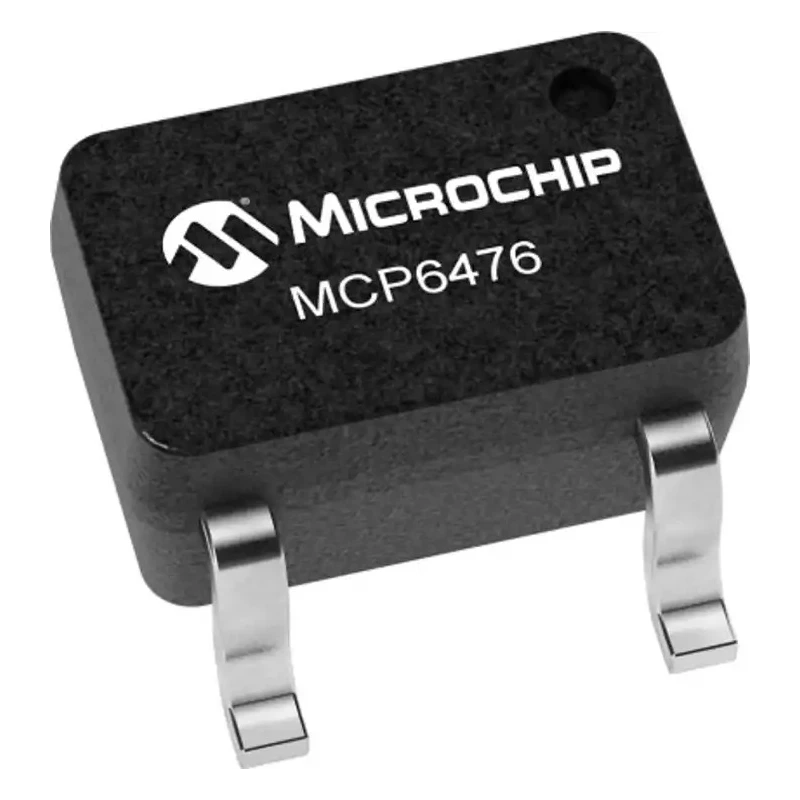

Microchip MCP6476UT-E/LT Operational Amplifier, 3 MHz, Rail-to-Rail I/O, 5-Pin SC-70-5, 5.5V
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.1mm |
| Length | 2mm |
| Model | MCP6476UT-E/LT |
| Width | 2.1mm |
| Mount Type | Surface |
| Series | MCP6476 |
| Output Current | 30mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SC-70-5 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Pin Count | 5 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| GBP - Gain Bandwidth Product | 3MHz |
| Input Bias Current | 1 pA |
| Vos - Input Offset Voltage | 1.6 mV |
| Slew Rate | 3.2V/μs |
Key Features
- Single-channel operational amplifier with a 3 MHz gain-bandwidth product.
- Features rail-to-rail input and output for maximum dynamic range.
- Operates on a supply voltage range from 1.8V to 5.5V.
- Low input offset voltage and very low input bias current for precision applications.
- EMI-filtered and AEC-Q100 qualified for automotive and industrial environments.
- Low quiescent current of 170 μA (max) ideal for battery-powered designs.
- Supports unity gain stability for a wide variety of circuit topologies.
- Compact SC-70-5 package simplifies PCB design in space-constrained applications.
Product Description
The Microchip MCP6476UT-E/LT operational amplifier provides robust, high-speed analog signal processing for demanding electronic applications. Featuring a single channel in a compact 5-pin SC-70-5 surface-mount package, this op amp offers a 3 MHz typical gain-bandwidth product and rail-to-rail input/output operation, maximizing dynamic range and versatility in both low- and high-voltage circuits.
With a supply voltage operating window from 1.8V to 5.5V and ultra-low quiescent current (170 μA max), the MCP6476UT-E/LT is ideal for power-sensitive, portable and battery-operated systems. Its low input offset voltage (±1.6 mV max) and low input bias current (1 pA typ) guarantee high accuracy and minimal signal distortion in precision instrumentation, medical devices, sensor signal conditioning, and active filtering circuits.
3 MHz gain bandwidth and 3.2 V/μs slew rate enable fast signal response for audio, sensor, and measurement systems. Enhanced EMI immunity with internal filtering helps minimize external interference, increasing circuit reliability in noisy industrial and automotive environments.
Quick start-up time (6 μs typ) supports rapid system wake-up requirements. AEC-Q100 qualification meets automotive-grade standards for reliability and operation across extended temperature ranges (−40°C to +125°C). 30 mA output current capability supports low-power actuation and interface applications.
Its tiny SC-70-5 footprint and surface-mount package facilitate high-density, miniaturized board designs, while RoHS compliance ensures suitability for global production standards. Typical customers include manufacturers and engineers developing solutions for automotive electronics, industrial process control, wireless communication devices, and portable consumer electronics.
Common industrial use cases include signal amplification, transducer interfacing, low-power filtering, data acquisition systems, and sensor front-ends in automotive, instrumentation, and commercial electronics.
Explore more Operational Amplifiers and analog ICs by Microchip and similar brands in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MCP6476UT-E/LT has a typical gain-bandwidth product of 3 MHz.
The input offset voltage for this model is ±1.6 mV maximum.
This operational amplifier operates with a maximum supply voltage of 5.5V.
The MCP6476UT-E/LT can provide an output current of up to 30 mA.
The dimensions of the SC-70-5 package are 2 mm in length, 2.1 mm in width, and 1.1 mm in height.
The operating temperature range for the MCP6476UT-E/LT is from -40°C to +125°C.
The typical input bias current for the MCP6476UT-E/LT is 1 pA.
The slew rate of this operational amplifier is 3.2 V/μs.
Yes, it is RoHS compliant and has AEC-Q100 qualification for automotive applications.
The MCP6476UT-E/LT uses surface mounting.
This operational amplifier is suitable for applications such as signal amplification, transducer interfacing, and low-power filtering.
The maximum quiescent current for the MCP6476UT-E/LT is 170 μA.
