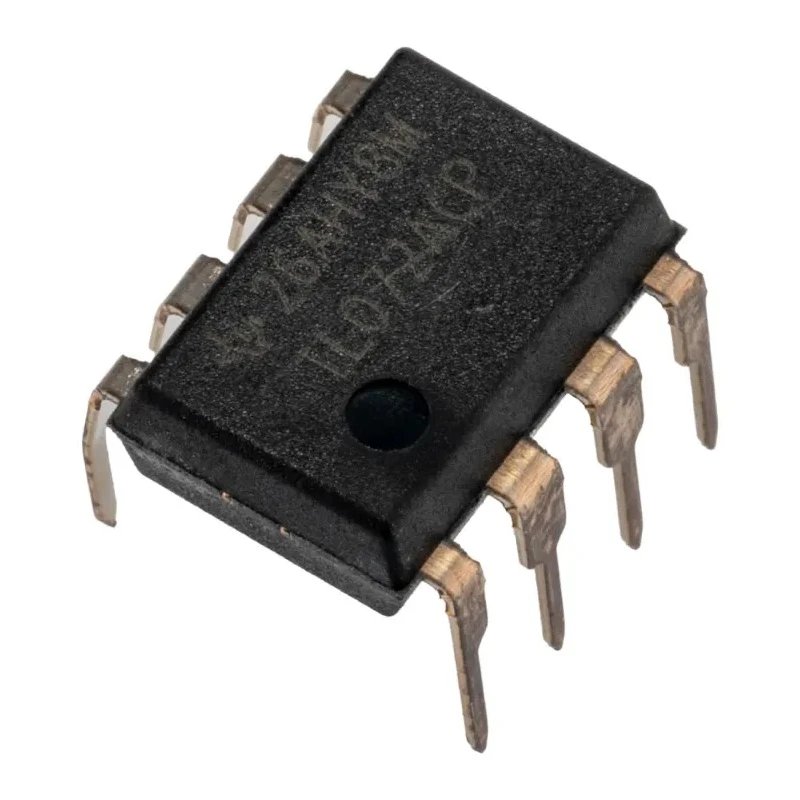

Texas Instruments Operational Amplifier Dual Channel 8-Pin PDIP 5V to 15V 3 MHz TL072ACP
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 9.81mm |
| Model | TL072ACP |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Low Noise | 18nV/√Hz typical at 1 kHz |
| Series | TL072 |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 2 |
| Pin Count | 8 |
| Maximum Supply Voltage | 15V |
| Minimum Supply Voltage | 5V |
| GBP - Gain Bandwidth Product | 3MHz |
| Input Bias Current | 7 nA |
| Vos - Input Offset Voltage | 7.5 mV |
| Slew Rate | 13V/μs |
| Input Offset Current | 2 nA |
| Wide supply voltage range | ±5 to ±15V |
| High Slew Rate | 13 V/μs typical |
| Low Total Harmonic Distortion | 0.003% typical |
Key Features
- JFET input amplifier with low input bias current and high slew rate.
- Wide supply voltage range from ±5 V to ±15 V.
- Low noise of 18 nV/√Hz typical at 1 kHz ensuring signal integrity.
- High slew rate of 13 V/μs typical for fast signal processing.
- Low total harmonic distortion of 0.003% typical for precise amplification.
- Compact 8-pin PDIP package suitable for through-hole mounting.
- Operating temperature range from 0°C to 70°C for reliable performance.
- Ideal for audio, signal processing, and various industrial applications.
Product Description
Texas Instruments TL072ACP is a high-performance Operational Amplifier designed with JFET input stage, dual channels, and packaged in an 8-pin PDIP format. Its wide supply voltage range of ±5V to ±15V makes it suitable for a variety of industrial and laboratory applications requiring low noise and high slew rate. The device features a Gain Bandwidth Product of 3 MHz and a low input bias current of 7 nA.
This amplifier provides low total harmonic distortion at 0.003% typical, enabling clear and accurate signal amplification. With a slew rate of 13 V/μs typical and low input offset voltage of 7.5 mV, the TL072ACP is ideal for audio processing, instrumentation, and control systems. The device operates reliably across 0°C to 70°C temperature range and includes offset adjustment and compensation options for flexible circuit design.
Packaged in a compact 8-pin PDIP with dimensions of approximately 9.81mm length, 6.35mm width, and 4.57mm height, this amplifier is optimized for through-hole mounting applications. Its low noise characteristic of 18 nV/√Hz at 1 kHz further enhances its suitability for sensitive electronic circuits.
JFET input stage for low input bias currents. Wide supply voltage range of ±5 to ±15 V. Low noise and low distortion amplifier. High slew rate of 13 V/μs for rapid signal response. Dual channel operation in one package. Through-hole 8-pin PDIP package for easy assembly.
Operating temperature from 0 to 70 degrees Celsius. Low input offset voltage and current for precision tasks. Ideal for audio and general purpose signal amplification. Manufactured in Mexico ensuring high quality.
Discover more high-quality amplifiers and electronic components from Texas Instruments in EnvMart’s Electronics & Electricals category, ideal for professionals and engineers seeking reliable performance and precision.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This operational amplifier operates within a wide supply voltage range of ±5V to ±15V.
The TL072ACP features a Gain Bandwidth Product of 3 MHz, suitable for various signal processing applications.
This model is a dual-channel operational amplifier, allowing for simultaneous amplification of two signals.
It has a low noise characteristic of 18 nV/√Hz at 1 kHz, ensuring signal integrity in sensitive applications.
The typical slew rate for this operational amplifier is 13 V/μs, which supports fast signal processing.
The dimensions of this operational amplifier are approximately 9.81 mm in length, 6.35 mm in width, and 4.57 mm in height.
The TL072ACP has a low input bias current of 7 nA, which is beneficial for precision applications.
The input offset voltage for this model is 7.5 mV, contributing to its precision in amplification tasks.
The TL072ACP exhibits low total harmonic distortion of 0.003% typical, ensuring clear and accurate signal amplification.
This operational amplifier operates reliably within a temperature range of 0°C to 70°C.
The amplifier is packaged in a compact 8-pin PDIP format, suitable for through-hole mounting applications.
The TL072ACP is manufactured in Mexico, ensuring consistent quality in its production.
