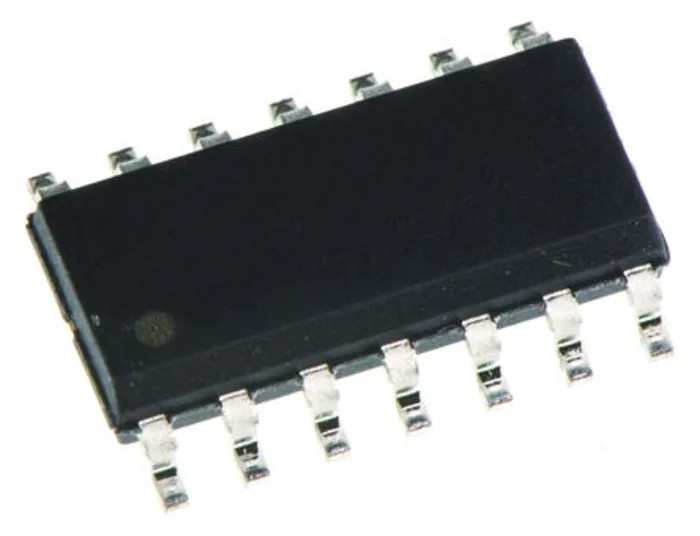

onsemi Precision Operational Amplifier 4-Channel SOIC, 350kHz GBW, 14-Pin, 1.8 - 5.5V, Zero Drift, NCS4333DR2G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 1.5mm |
| Zero drift | 0.07 μV/°C Max |
| Length | 8.75mm |
| Model | NCS4333DR2G |
| Width | 4mm |
| Mount Type | Surface |
| Low Noise | 1.1 μV |
| Series | NCS4333 |
| Output Current | 11mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 4 |
| Power Supply Voltage | 1.8 V to 5.5 V |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 0.3V |
| Minimum Supply Voltage | 1.8V |
| GBP - Gain Bandwidth Product | 350kHz |
| Input Bias Current | 400 pA |
| Slew Rate | 0.15V/μs |
| Input Offset Current | 800 pA |
| Low Quiescent Current | 17 μA Typical at 3.3 V |
Key Features
- Features rail-to-rail input and output for maximum signal swing.
- Gain bandwidth product of 350 kHz enables a broad frequency response.
- Zero-drift architecture provides very low offset voltage (10 μV Max) and minimal drift (0.07 μV/°C Max).
- Operates on a low supply voltage range from 1.8 V to 5.5 V.
- Low noise performance of 1.1 μV and low quiescent current 17 μA (typical at 3.3 V).
- Supports surface-mount assembly in SOIC footprint with 14 pins for efficient layout.
- Wide operating temperature range from -40°C to +125°C for robust industrial use.
- Input bias current as low as 400 pA supporting high-impedance signal sources.
Product Description
onsemi NCS4333DR2G is a high-precision, low-power operational amplifier designed for demanding analog signal processing tasks in industrial, instrumentation, and automotive applications. The device is housed in a compact 14-pin SOIC surface-mount package, supporting modern automated assembly lines and offering robust thermal and mechanical performance.
With a gain bandwidth product of 350 kHz, the NCS4333DR2G is well suited for applications requiring moderate frequency response, such as sensor interfaces, transducer signal conditioning, and active filters. The amplifier delivers ultra-low input offset voltage (10 μV Max), zero-drift operation with maximum drift of 0.07 μV/°C, and low noise measured at 1.1 μV, ensuring signal fidelity for precision measurement tasks.
Operating from a wide single supply voltage range of 1.8 V to 5.5 V, the op-amp supports low-voltage systems and delivers low quiescent current (17 μA typical at 3.3 V), minimizing power consumption in battery-powered or energy-sensitive designs. Rail-to-rail input and output maximize the usable signal swing across the supply range for full utilization in analog front-ends.
Four operating channels provide versatile multi-signal amplification for compact system layouts. Safely functions within an extended temperature span (-40°C to +125°C), suitable for industrial, medical, and automotive environments.
Output current capability of 11 mA supports direct driving of moderate loads. Precision performance makes this part ideal for control systems, data acquisition, PLCs, and test equipment.
Key package dimensions are 8.75 mm (Length) × 4 mm (Width) × 1.5 mm (Height), and the IC complies with AEC-Q100 automotive qualification and RoHS standards for reliability and environmental safety.
The NCS4333DR2G is a member of the onsemi NCS4333 family, benefiting engineers who require consistency and low-drift performance in analog designs. It is supplied in reels for efficient pick-and-place insertion in manufacturing environments.
Explore our complete range of Operational Amplifiers and precision signal conditioning ICs in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of the NCS4333DR2G is 350 kHz, making it suitable for applications requiring moderate frequency response.
It operates on a supply voltage range from 1.8 V to 5.5 V, accommodating low-voltage systems.
The output current capability of this model is 11 mA, which supports direct driving of moderate loads.
The input bias current is as low as 400 pA, which supports high-impedance signal sources.
The package dimensions are 8.75 mm in length, 4 mm in width, and 1.5 mm in height.
This model operates within a temperature range of -40°C to +125°C, making it suitable for industrial and automotive environments.
The zero-drift architecture provides a maximum drift of 0.07 μV/°C, ensuring minimal offset voltage changes over temperature.
The low noise performance is measured at 1.1 μV, contributing to signal fidelity in precision measurement tasks.
It complies with RoHS standards and is qualified under AEC-Q100 for automotive applications.
The typical quiescent current at 3.3 V is 17 μA, which helps minimize power consumption in energy-sensitive designs.
It supports surface-mount assembly in a 14-pin SOIC footprint, facilitating efficient layout in manufacturing environments.
