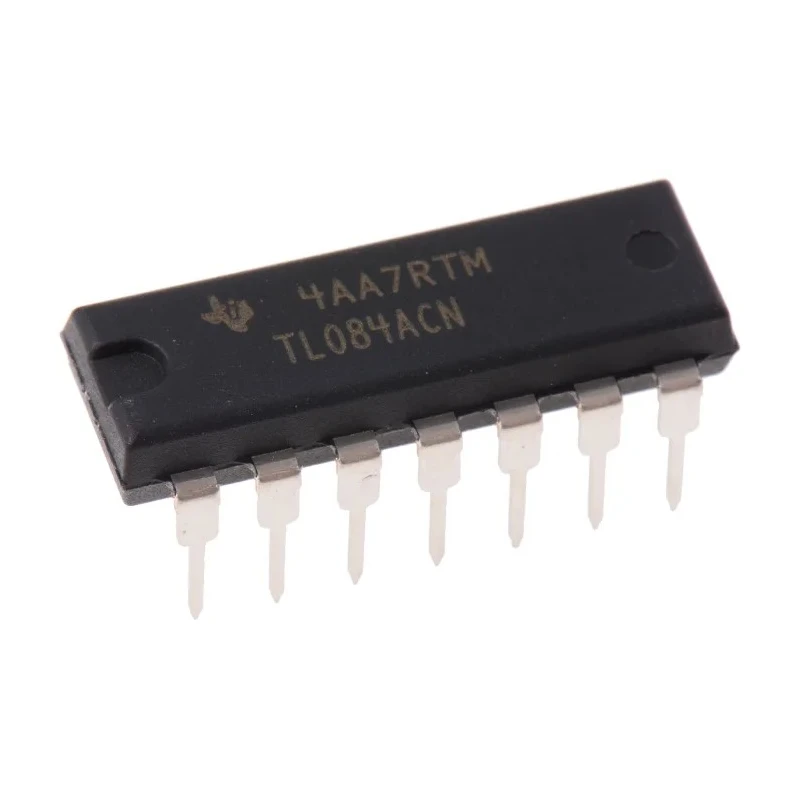

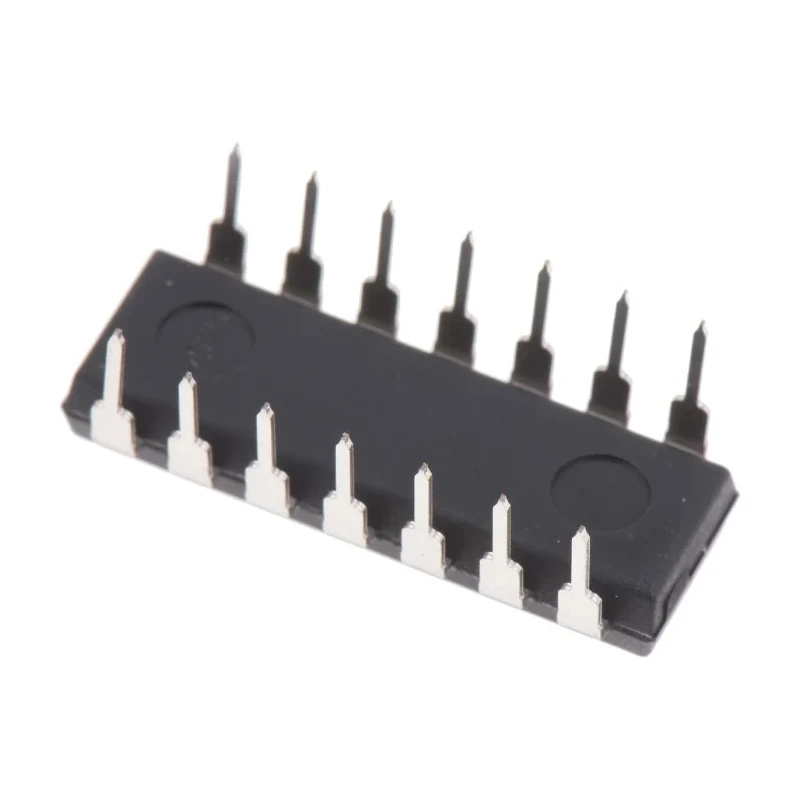

Texas Instruments Operational Amplifier 3 MHz 14-Pin 15V PDIP TL084ACN
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 19.3mm |
| Model | TL084ACN |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Low Noise | 18nV/√Hz typical at 1 kHz |
| Series | TL084 |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 4 |
| Pin Count | 14 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 15V |
| Minimum Supply Voltage | 5V |
| GBP - Gain Bandwidth Product | 3MHz |
| Input Bias Current | 7 nA |
| Vos - Input Offset Voltage | 7.5 mV |
| Slew Rate | 13V/μs |
| Input Offset Current | 2 nA |
| Wide supply voltage range | ±5 to ±15V |
| High Slew Rate | 13 V/μs typical |
| Low Total Harmonic Distortion | 0.003% typical |
| TL084CN STMicroelectronics, Op Amp, 4MHz, 14-Pin PDIPBrand | STMicroelectronics |
Key Features
- Features four JFET input operational amplifier channels for low input bias and offset currents.
- Operates with a wide voltage supply range from ±5V to ±15V.
- Offers a gain bandwidth product of 3 MHz and a high slew rate of 13 V/μs.
- Designed for low noise applications with typical noise level of 18 nV/√Hz at 1 kHz.
- Suitable for audio, signal processing, and other precision amplification needs.
- Includes a 14-pin PDIP through-hole mount package for ease of integration.
- Complies with the automotive standard AEC-Q100 for reliability in automotive applications.
- Operates effectively in ambient temperatures from 0°C to 70°C.
Product Description
Texas Instruments TL084ACN is a quad operational amplifier featuring JFET inputs and low input bias currents, assembled in a 14-pin PDIP package for through-hole mounting. It delivers a high gain bandwidth product of 3 MHz and a fast slew rate of 13 V/μs, making it ideal for high-performance analog signal processing applications.
This operational amplifier supports a wide supply voltage range from minimum 5 V to maximum 15 V, allowing flexibility in circuit design. Its low noise characteristics, with 18 nV/√Hz typical noise at 1 kHz, and low total harmonic distortion of 0.003% make it suitable for sensitive audio and instrumentation applications.
The device is engineered to operate reliably across a temperature range from 0°C to 70°C and meets automotive standard AEC-Q100, ensuring suitability for automotive environments. Its compact size of 19.3 mm length, 6.35 mm width, and 4.57 mm height provides easy integration into electronic assemblies.
The TL084 series combines the benefits of low offset voltage, low bias currents, and high slew rate, making this product a preferred choice for designers requiring precise amplification with reduced loading and distortion. External compensation and offset adjustment options are available to optimize performance for specific applications.
Quad JFET input operational amplifier channels with low input bias and offset currents. Wide supply voltage range of ±5 to ±15 volts. High slew rate of 13 volts per microsecond and 3 MHz gain bandwidth product. Low noise at 18 nV per root Hertz at 1 kHz frequency.
Low total harmonic distortion ensuring signal purity. Through-hole PDIP 14-pin package for straightforward mounting. AEC-Q100 automotive standard compliance for enhanced robustness. Operational temperature range from 0 to 70 degrees Celsius.
This Operational Amplifier is well-suited for applications in industrial instrumentation, automotive electronics, audio processing, and signal conditioning. The product supports designs requiring efficient, high-fidelity analog amplification with robust automotive readiness.
Explore our range of Texas Instruments op amps on EnvMart for more options in high-performance amplifier ICs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of the TL084ACN is 3 MHz, making it suitable for high-performance analog signal processing applications.
This model operates effectively in ambient temperatures from 0°C to 70°C.
The maximum supply voltage for the TL084ACN is 15V, while the minimum is 5V, allowing for a wide supply voltage range of ±5V to ±15V.
The TL084ACN features four channels, making it a quad operational amplifier.
The typical noise level of the TL084ACN is 18 nV/√Hz at 1 kHz, which is suitable for low noise applications.
This operational amplifier is packaged in a 14-pin PDIP (Plastic Dual In-line Package) for through-hole mounting.
The TL084ACN has a high slew rate of 13 V/μs, which enhances its performance in fast signal processing applications.
Yes, the TL084ACN complies with the automotive standard AEC-Q100, ensuring reliability in automotive applications.
The input offset voltage (Vos) for the TL084ACN is 7.5 mV, contributing to its low distortion characteristics.
The dimensions of the TL084ACN are 19.3 mm in length, 6.35 mm in width, and 4.57 mm in height.
This operational amplifier is suitable for applications in audio processing, industrial instrumentation, and signal conditioning.
The TL084ACN has a typical total harmonic distortion of 0.003%, ensuring signal purity in amplification tasks.
