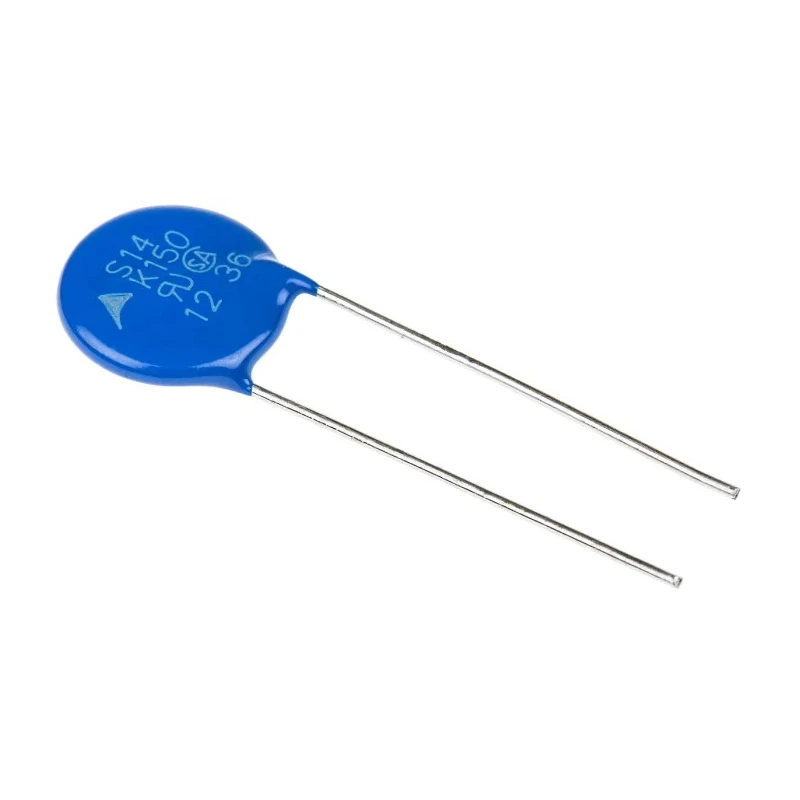

TDK Standard Metal Oxide Varistor 750 pF 50 A Clamping Voltage 2970 V Varistor Voltage 240 V B72214S0151K101

Free Delivery in India | Lowest Global Shipping Charges

TDK Standard Metal Oxide Varistor 750 pF 50 A Clamping Voltage 2970 V Varistor Voltage 240 V B72214S0151K101



Category Varistor Brand TDK Condition New

Specifications

Country of Origin	India
Diameter	15.5mm
Brand	TDK
Material	Metal
THICKNESS	4.4mm
Length	43.5mm
Model	B72214S0151K101
Depth	4.4mm
Mount Type	Lead
Series	Standard
Energy Rating	1J
Maximum Operating Temperature	85°C
Capacitance	750pF
Minimum Operating Temperature	-40°C
Maximum dc Voltage	1465V dc
Standards/Approvals	IEC, UL, CQC, CSA, VDE
Pin Count	2
Lead Pitch	7.5mm
Maximum AC Voltage	1100V ac
Clamping Voltage VC	2970V
Clamping Current	50A
Maximum Surge Current	4.5kA
Varistor Voltage	240 V

Key Features

The varistor voltage is rated at 240 V, suitable for AC and DC applications.
Clamping voltage of 2970 V ensures protection against high-voltage surges.
Standard lead-mount type with epoxy-coated ceramic body and tinned copper leads.
Capable of handling maximum AC voltage of 1100 V and DC voltage up to 1465 V.
Operating temperature range from -40°C to 85°C allows use in various environments.
Standards compliance includes IEC, UL, CQC, CSA, and VDE for assured quality.
Energy rating of 1J and maximum surge current of 4.5 kA suitable for industrial electrical protection.

Product Description

TDK B72214S0151K101 standard metal oxide varistor is engineered for surge protection in industrial and electronic applications. This varistor features a 750 pF capacitance and 50 A clamping current, providing robust defense against voltage spikes that can damage sensitive components.

Designed with a lead mount type, it includes an epoxy-coated ceramic body and tinned copper leads, ensuring durability and reliable electrical performance. The varistor voltage is specified at 240 V, with the capability to protect circuits up to a maximum AC voltage of 1100 V and DC voltage of 1465 V.

The clamping voltage of 2970 V enables the device to safely dissipate high transient voltages, making it suitable for power supply protection, industrial machinery, and electronic systems exposed to surge conditions. Its compact size with a diameter of 15.5 mm and length of 43.5 mm fits efficiently in various circuit designs.

Operating temperatures range from -40°C to 85°C, allowing use in diverse environments from laboratory equipment to manufacturing plants. Certified to meet IEC, UL, CQC, CSA, and VDE standards, this varistor guarantees quality and compliance with international safety requirements.

The varistor voltage is rated at 240 V, suitable for AC and DC applications. Clamping voltage of 2970 V ensures protection against high-voltage surges. Standard lead-mount type with epoxy-coated ceramic body and tinned copper leads.

Capable of handling maximum AC voltage of 1100 V and DC voltage up to 1465 V. Compact dimensions: diameter 15.5 mm, length 43.5 mm, thickness and depth 4.4 mm. Operating temperature range from -40°C to 85°C allows use in various environments.

Standards compliance includes IEC, UL, CQC, CSA, and VDE for assured quality. Energy rating of 1J and maximum surge current of 4.5 kA suitable for industrial electrical protection.

This TDK standard metal oxide varistor is ideal for protecting electronics in industrial, laboratory, HVAC, manufacturing, and power distribution applications. It efficiently safeguards equipment from transient voltage spikes, enhancing product reliability and lifespan.
