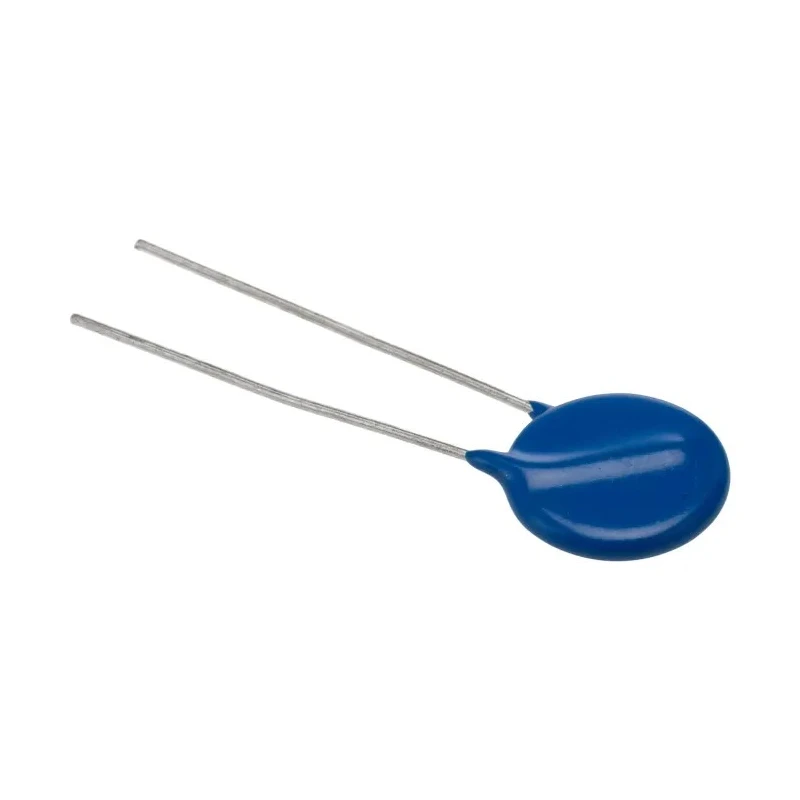

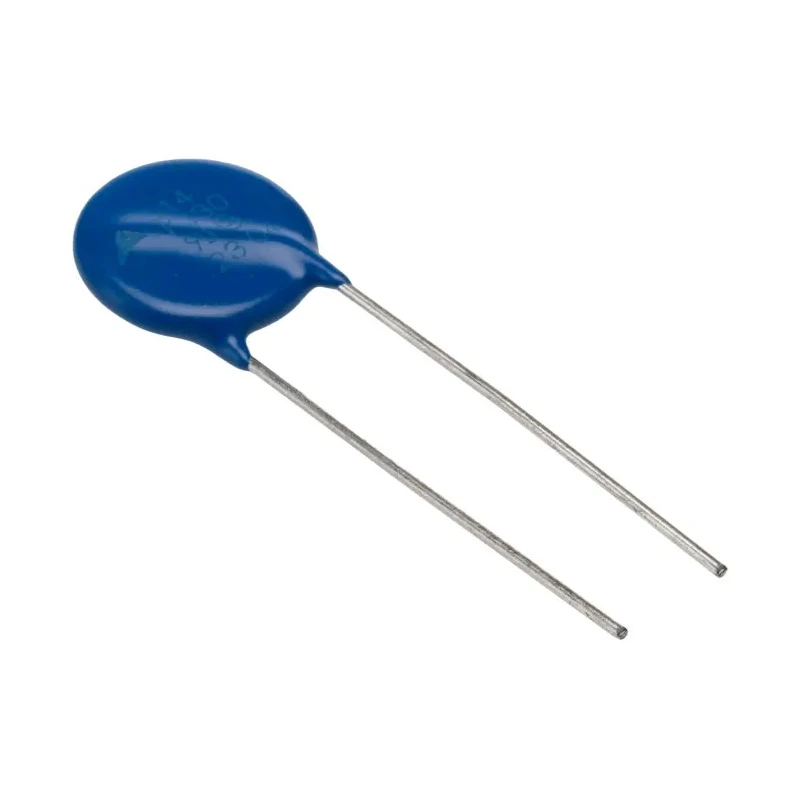

TDK Standard Metal Oxide Varistor 880 pF 50 A Clamping Voltage 340 V Diameter 15.5 mm B72214S0131K101

TDK B72214S0131K101 Standard Metal Oxide Varistor is engineered to provide robust protection against voltage surges and transient spikes in electronic circuits. This varistor exhibits a capacitance of 880 pF and is rated for a clamping current of 50 A, making it highly effective in safeguarding sensitive electronics from voltage fluctuations and transient overvoltages.

The device features a clamping voltage of 340 V, a varistor voltage of 205 V, and supports maximum AC voltage up to 130 V and DC voltage up to 170 V. It has a diameter of 15.5 mm and a thickness of 4.2 mm, facilitating compact and efficient component placement on circuit boards. The standard series varistor is constructed from metal oxide material with an epoxy coating for enhanced reliability and protection against environmental factors.

Operating within a temperature range of -40°C to 85°C, this varistor ensures performance stability under varying industrial and commercial conditions. The lead pitch is 7.5 mm, compatible with standard radial mounting, and the leads are tinned copper wires enhancing solderability and connectivity.

This device has an energy rating of 34 Joules, capable of safely absorbing surge energy and protecting connected equipment. It complies with international standards IEC, UL, VDE, CSA, and CQC, assuring quality and safety in diverse applications.

The TDK Standard Metal Oxide Varistor B72214S0131K101 is ideal for use in industrial electronics, power supply systems, surge protection devices, and voltage clamping circuits, contributing to longevity and safety of electrical installations.

Offers a clamping voltage of 340 V for effective transient voltage suppression. Features a diameter of 15.5 mm and thickness of 4.2 mm for compact installation. Rated for maximum AC voltage of 130 V and DC voltage of 170 V.

Constructed with metal oxide material and epoxy coating for durability. Operating temperature range from -40°C to 85°C for various environments. Capacitance of 880 pF supports high-speed transient response. Lead pitch of 7.5 mm with tinned copper wire leads for easy mounting.

Energy rating of 34 Joules to absorb surge energy safely. Standard series compliant with IEC, UL, VDE, CSA, and CQC certifications. Suitable for industrial electronic surge protection and voltage regulation applications.
