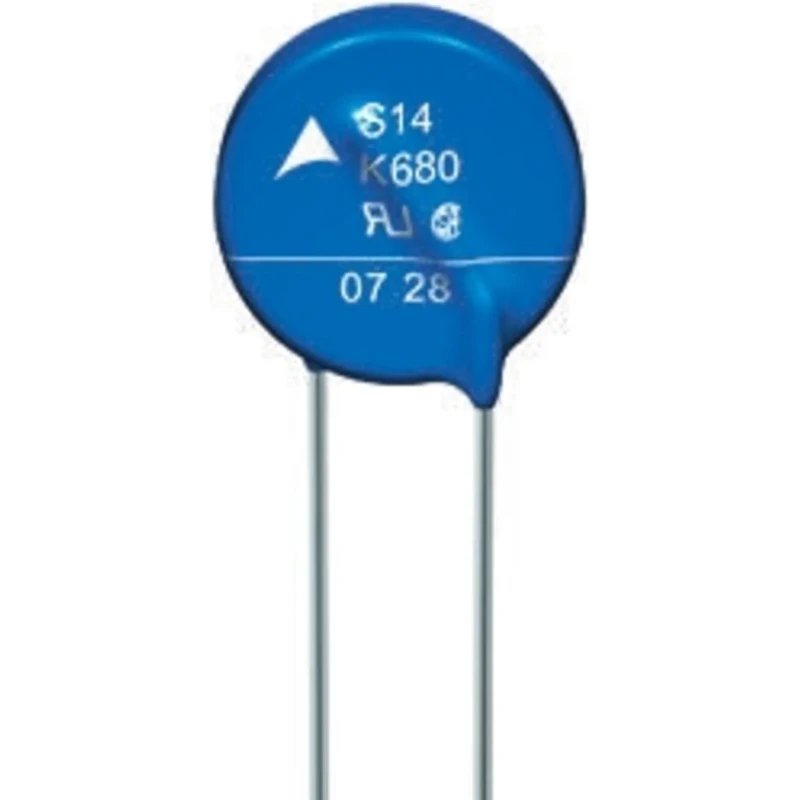

TDK Standard Metal Oxide Varistor 870 pF Capacitance 25 A Clamping 165 V 100 V B72210S0600K101

Free Delivery in India | Lowest Global Shipping Charges

TDK Standard Metal Oxide Varistor 870 pF Capacitance 25 A Clamping 165 V 100 V B72210S0600K101



Category Varistor Brand TDK Condition New

Specifications

Country of Origin	India
Diameter	12mm
Brand	TDK
Material	Metal
THICKNESS	4mm
Length	14.5mm
Model	B72210S0600K101
Packaging	Bulk
Series	Standard
Energy Rating	10J
Maximum Operating Temperature	85°C
Capacitance	870pF
Minimum Operating Temperature	-40°C
Maximum dc Voltage	85V dc
Standards/Approvals	UL, VDE, CQC, CSA, EC
Pin Count	2
Termination Style	Solder
Lead Pitch	7.5mm
Maximum AC Voltage	60V ac
Clamping Voltage VC	165V
Clamping Current	25A
Maximum Surge Current	2.5kA
Varistor Voltage	100 V
Panasonic, V Surge Absorber 1.7 nF 25 A, Clamping 165 V, Varistor 100 VBrand	Panasonic

Key Features

Capacitance rating of 870 pF ensures effective suppression of transient voltages.
Clamping current of 25 A supports high surge current protection.
Clamping voltage set at 165 V for reliable voltage spike absorption.
Metal oxide varistor construction with epoxy-coated ceramic body for durability.
Solder termination style with two pin leads and 7.5 mm lead pitch.
Operating temperature range from -40°C to 85°C compatible with industrial environments.
Energy rating of 10 joules suitable for moderate energy absorption.
Meets UL, VDE, CSA, CQC, and EC safety approvals.

Product Description

TDK B72210S0600K101 is a standard series metal oxide varistor designed for surge protection in electronic components and power applications. With a capacitance of 870 pF and a clamping current rating of 25 A, this varistor effectively suppresses voltage transients to protect sensitive devices.

The device features a clamping voltage of 165 V and a varistor voltage of 100 V, making it suitable for applications requiring reliable voltage spike absorption. It comes in a robust epoxy-coated ceramic body with tinned copper wire leads that facilitate solder termination, ensuring durability and ease of mounting.

Operating within a temperature range of -40°C to 85°C, this varistor can perform reliably in industrial, laboratory, manufacturing, and electronics assembly environments. Its compact size - 12 mm diameter, 14.5 mm length, and 4 mm thickness - enables integration into space-constrained circuits.

The varistor is rated for surge currents up to 2.5 kA (8/20 µs waveform) and an energy absorption capacity of 10 joules, providing protection against transient surges from power fluctuations or lightning strikes.

Compliance with UL, VDE, CSA, CQC, and EC standards assures safety and quality for industrial and commercial electrical systems. Capacitance rating of 870 pF ensures effective suppression of transient voltages. Clamping current of 25 A supports high surge current protection.

Clamping voltage set at 165 V for reliable voltage spike absorption. Metal oxide varistor construction with epoxy-coated ceramic body for durability. Solder termination style with two pin leads and 7.5 mm lead pitch. Operating temperature range from -40°C to 85°C compatible with industrial environments.

Compact dimensions: 12 mm diameter, 14.5 mm length, and 4 mm thickness. Energy rating of 10 joules suitable for moderate energy absorption. Meets UL, VDE, CSA, CQC, and EC safety approvals. Bulk packaging ideal for manufacturing and repair applications.

This metal oxide varistor is well-suited for electronics manufacturing, industrial equipment, power supply protection, and laboratory instrumentation. Explore the Varistors category on EnvMart for more surge protection components from leading brands like TDK.
