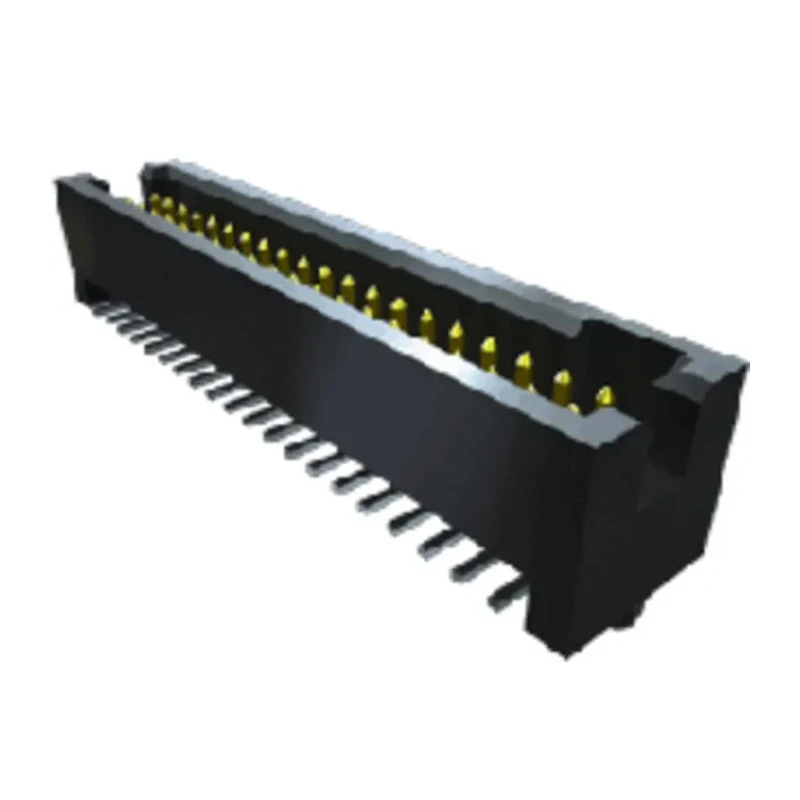

Samtec TFM Series Right Angle Through Hole PCB Header, 60 Contacts, 1.27 mm Pitch, 2 Row, Shrouded TFM-130-01-L-D-RE2-WT

Samtec TFM-130-01-L-D-RE2-WT is a high-quality right angle through hole PCB header from the TFM series, featuring 60 contacts arranged in 2 rows with a 1.27 mm pitch. It is designed for board-to-board connection applications requiring reliability and durability in compact form factors. The header's black liquid crystal polymer housing provides excellent electrical insulation and mechanical resilience.

The contacts are constructed from phosphor bronze and plated with gold to ensure stable electrical performance and resistance to corrosion. This connector supports a current rating of 3.2A per pin and voltage rating of 250 VAC, suitable for a wide range of electronic devices and control equipment.

This PCB header is shrouded for pin protection and is oriented at a right angle to facilitate installation in compact circuit board layouts. It uses solder termination with male contacts for secure, reliable electrical connections.

Operating temperature extremes range from -55°C to +125°C, making it suitable for demanding industrial, manufacturing, electronic component assembly, and maintenance applications. The TFM series headers are well-regarded for their long life and consistent performance.

This PCB header features a shrouded, right-angle orientation designed for through-hole mounting. Incorporates phosphor bronze contacts plated with gold for enhanced conductivity and corrosion resistance. The housing is composed of durable liquid crystal polymer providing excellent insulation.

Rated for 3.2 amps current capacity and 250 volts maximum voltage, suitable for moderate power applications. Operates reliably within a broad temperature range from -55°C to +125°C. 1.27 mm pitch and 2-row contact arrangement support a compact and reliable board-to-board connection.

Termination by solder, with male contact gender appropriate for standard PCB mounting. Ideal for use in electronics manufacturing, industrial control systems, and high-reliability electrical assemblies.

This product is a valuable component for electronic engineers and technicians involved in PCB design and assembly. Browse more Samtec components and PCB Headers on EnvMart to find compatible parts for your project requirements.
