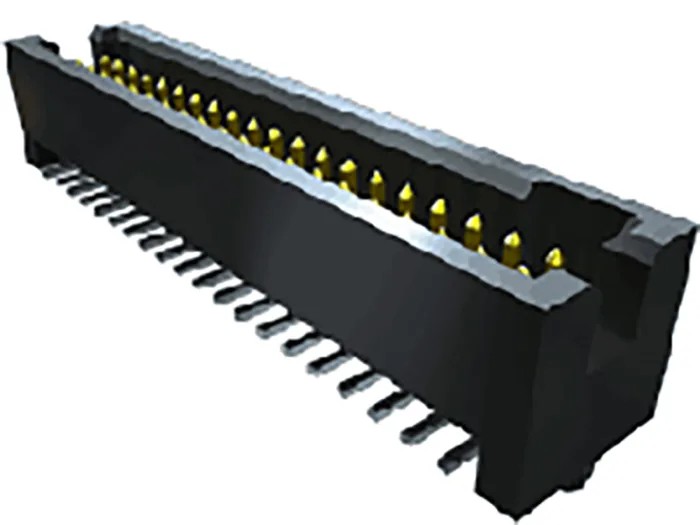

Samtec TFM Series Straight Surface PCB Header 10 Contacts 1.27 mm Pitch 2 Row Shrouded TFM-105-02-S-D
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 3A |
| Model | TFM-105-02-S-D |
| Mount Type | Surface |
| Special Features | Screw down, weld tab and solder nail options available for most rugged requirements |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | TFM |
| Termination | Through-hole, surface mount |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Contact System | .018" (0.46 mm) diameter post |
Key Features
- Constructed with Liquid Crystal Polymer housing for durability.
- Supports 3A current and 250V voltage rating for reliable operation.
- Contacts are made of phosphor bronze with gold plating for superior conductivity.
- Shrouded body enables blind mating and protects contacts.
- Surface-mount termination assures secure PCB connection.
- Operates in a temperature range from -55°C to 125°C.
- Suitable for board-to-board and wire-to-board connector systems.
- Multi-finger BeCu contact system designed for high cycle reliability.
Product Description
Samtec TFM-105-02-S-D is a Straight Surface PCB Header designed for industrial and electronics applications requiring reliable board-to-board or wire-to-board connections. This robust PCB header features 10 contacts arranged in 2 rows with a 1.27 mm pitch spacing. The housing material is high-quality Liquid Crystal Polymer, providing durable insulation and stability.
The header supports currents up to 3A and voltages up to 250V, with contact material made of phosphor bronze plated in gold to ensure excellent conductivity and corrosion resistance. The shrouded design provides protection and facilitates blind mating for assembly ease. Surface mount termination enhances mounting security on PCBs.
This connector operates across a broad temperature range from -55°C to 125°C, suitable for various industrial environments. The multi-finger BeCu contact system provides high reliability and longevity, making it ideal for high cycle applications. Additional features like screw down, weld tab, and solder nail options accommodate rugged application requirements.
Samtec TFM-105-02-S-D is widely used in electronics manufacturing, industrial automation, and telecommunications, offering flexibility and performance for demanding PCB connector applications. Compatible with Tiger Eye™ contact sockets and cable assemblies, this connector facilitates efficient and durable interconnections.
Constructed with Liquid Crystal Polymer housing for durability. Supports 3A current and 250V voltage rating for reliable operation. Contacts are made of phosphor bronze with gold plating for superior conductivity. Shrouded body enables blind mating and protects contacts.
Surface-mount termination assures secure PCB connection. Operates in a temperature range from -55°C to 125°C. Suitable for board-to-board and wire-to-board connector systems. Multi-finger BeCu contact system designed for high cycle reliability.
Special features include screw down, weld tab, and solder nail options for rugged requirements. Compatible with high-reliability Tiger Eye™ contact sockets and cable assemblies. Explore more high-quality PCB connectors and headers in the Electronics & Electricals category at EnvMart for your professional and industrial needs.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Samtec TFM-105-02-S-D PCB header supports a maximum current of 3A.
It has a voltage rating of 250V, ensuring reliable operation in various applications.
The contacts are made of phosphor bronze and are plated with gold for superior conductivity and corrosion resistance.
This model features a 1.27 mm pitch and has 10 contacts arranged in 2 rows.
The operating temperature range is from -55°C to 125°C, making it suitable for various industrial environments.
It features surface mount termination, which assures a secure connection on PCBs.
Yes, it includes screw down, weld tab, and solder nail options for rugged application requirements.
It is suitable for board-to-board and wire-to-board connector systems, enhancing its versatility.
The housing is constructed from Liquid Crystal Polymer, providing durability and stability.
The shrouded body enables blind mating and protects the contacts, facilitating easier assembly.
It features a multi-finger BeCu contact system designed for high cycle reliability, making it ideal for demanding applications.
The Samtec TFM-105-02-S-D is manufactured in India.
