TDK Film Capacitor 10nF 1.6kV AC 1.6kV DC Through Hole, 2 Pin B32653A1103K000

Free Delivery in India | Lowest Global Shipping Charges

TDK Film Capacitor 10nF 1.6kV AC 1.6kV DC Through Hole, 2 Pin B32653A1103K000



Category Film Capacitor Brand TDK Condition New

Specifications

Country of Origin	China
Brand	TDK
Height	15mm
Length	26.5mm
Model	B32653A1103K000
Width	6mm
Mount Type	Through Hole
Series	B32653
Maximum Operating Temperature	110°C
Capacitance	10nF
Standards/Approvals	UL, RoHS
Pin Count	2
Rated AC Voltage	1.6kV ac
Rated DC Voltage	1.6kV dc
Lead Pitch	22.5mm
Lead Diameter	0.8mm
Automotive Standard	AEC-Q200 Rev D

Key Features

Rated for 1.6kV AC and 1.6kV DC voltage operation.
Through hole mount with a lead pitch of 22.5mm and lead diameter of 0.8mm.
High pulse strength and reliable contact performance.
Operates up to a maximum temperature of 110°C.
Small dimensions with length 26.5mm, width 6mm, and height 15mm.
Constructed with wound capacitor technology and plastic flame retardant UL 94 V-0 casing.
Epoxy resin sealing for increased durability and insulation.
Compliant with automotive standard AEC-Q200 Rev D, UL and RoHS certified.

Product Description

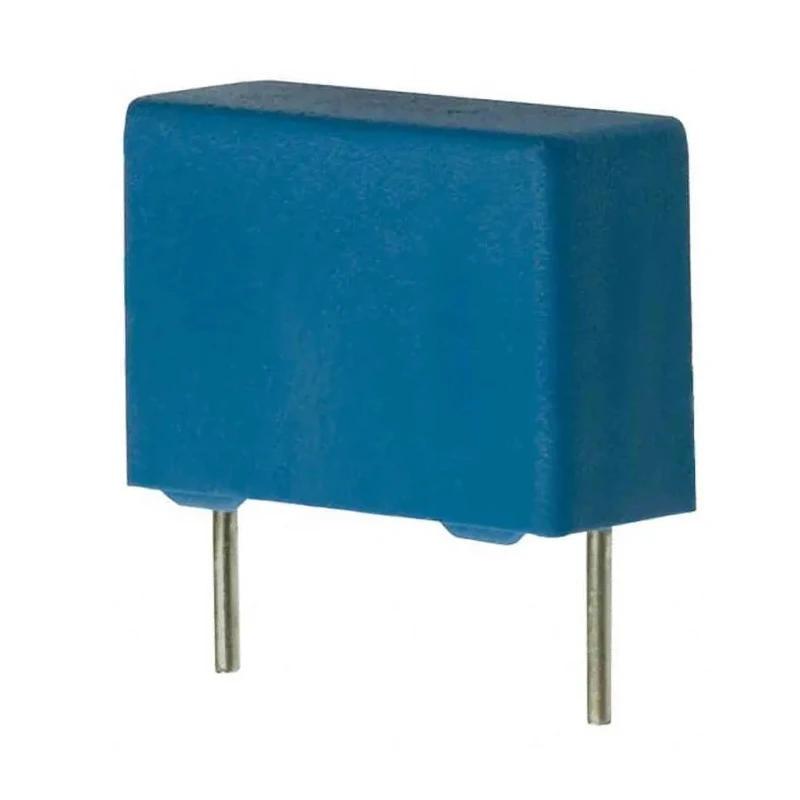

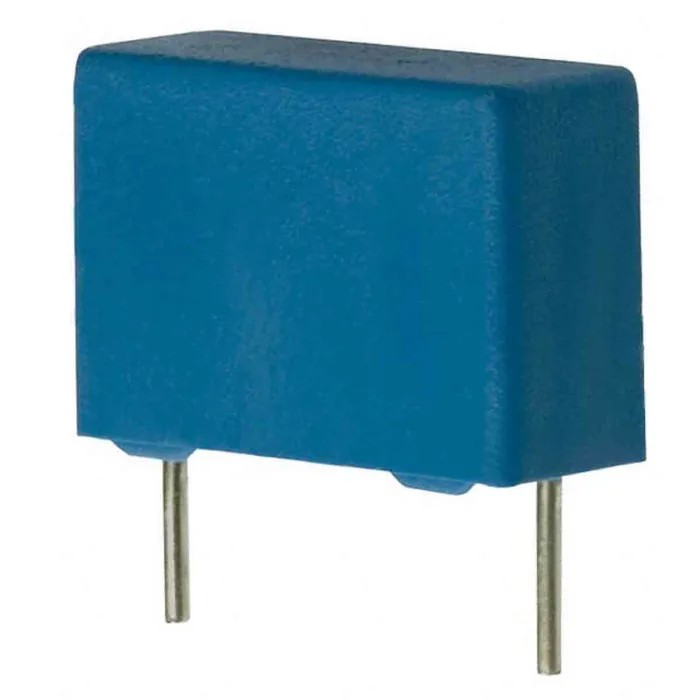

TDK B32653A1103K000 Film Capacitor is a high-voltage, through hole mounted capacitor rated at 10nF capacitance. It supports operation at 1.6kV AC and 1.6kV DC voltages, making it suitable for demanding electronic applications requiring robust insulation and stability.

This capacitor features a 2-pin through hole design with a lead pitch of 22.5mm and lead diameter of 0.8mm, enabling straightforward PCB mounting. The device uses wound capacitor technology with an internal series connection optimized for voltages equal to or greater than 1250V DC. Its compact and durable plastic flame-retardant case is sealed with epoxy resin that complies with UL 94 V-0 standards for safety.

Designed to operate reliably up to 110°C, this capacitor meets the stringent automotive quality standard AEC-Q200 Rev D, alongside UL and RoHS certifications, ensuring suitability for automotive and industrial use. Its robust construction delivers high pulse strength and excellent contact reliability in various electronic circuits.

Typical applications include TV S-correction circuits, TV flyback transformers, and electronic ballast circuits where high voltage handling and stable capacitance are required. Its compact dimensions (26.5mm length, 6mm width, 15mm height) allow integration in space-constrained designs.

Rated AC Voltage: 1.6kV AC and DC Voltage: 1.6kV DC for high voltage electrical performance. High pulse strength and contact reliability ensuring long-lasting operation in harsh environments. Wound capacitor design with internal series connection for improved voltage rating and performance.

Flame retardant plastic casing with epoxy resin sealing enhances safety and durability. Compatible with automotive standard AEC-Q200 Rev D confirming high quality and reliability. Lead pitch 22.5mm and diameter 0.8mm facilitate secure PCB mounting.

Compact form factor suits electronic ballast, TV correction, and flyback circuits. Exceeds UL and RoHS standards ensuring regulatory compliance in diverse markets.

This TDK film capacitor is an excellent component for industrial, automotive, and consumer electronics requiring high voltage film capacitors with consistent performance and safety certifications. Browse our full range of Film Capacitors for additional options tailored to your specific design needs on EnvMart.
