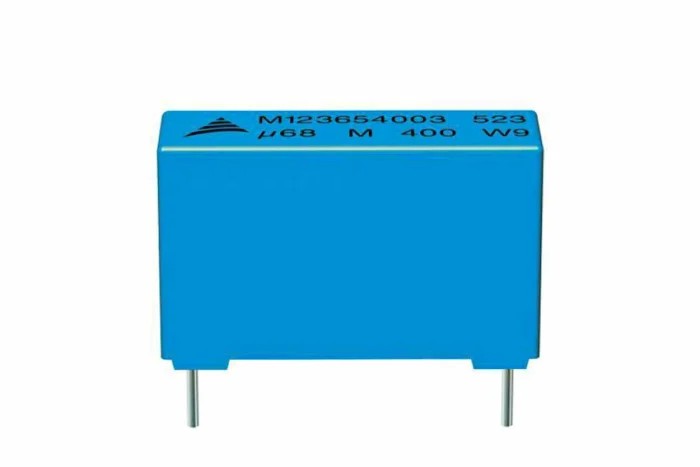

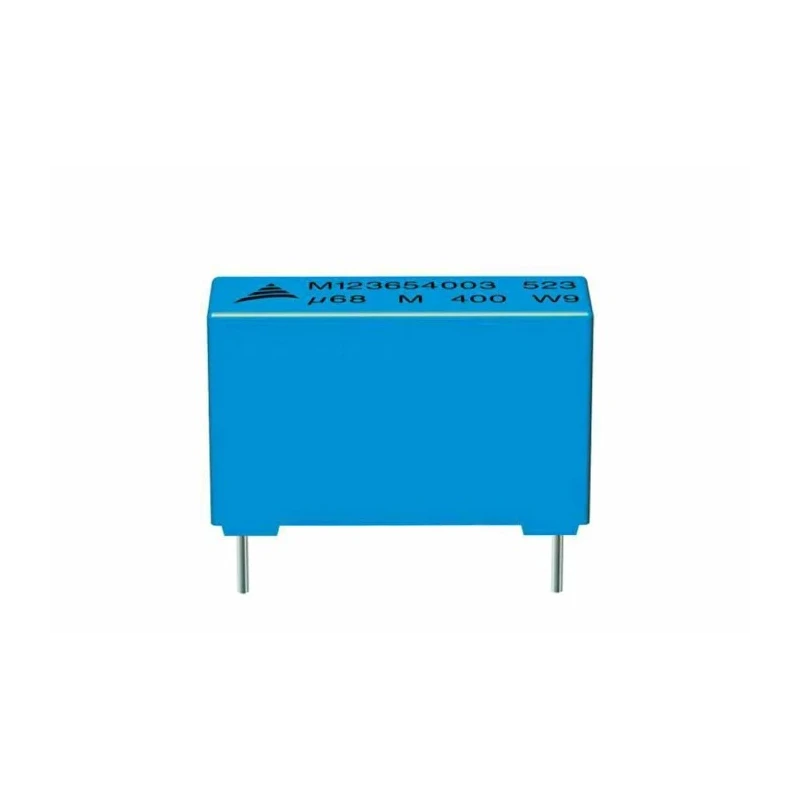

TDK Film Capacitor 220 nF 200V AC 400 V DC Through Hole B32523Q6224K000
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Height | 15mm |
| Length | 26.5mm |
| Model | B32523Q6224K000 |
| Width | 6mm |
| Mount Type | Through Hole |
| Series | B32523 |
| Maximum Operating Temperature | 125°C |
| Capacitance | 220nF |
| Standards/Approvals | RoHS, UL |
| Pin Count | 2 |
| Rated AC Voltage | 200V ac |
| Rated DC Voltage | 400V dc |
| Lead Pitch | 22.5mm |
| Lead Diameter | 0.8mm |
| Automotive Standard | AEC-Q200 Rev D |
Key Features
- Designed for high pulse strength applications.
- High contact reliability ensures long-term performance.
- Suitable for blocking, coupling, decoupling, and bypassing circuits.
- Meets automotive standard AEC-Q200 Rev D for reliability.
- Constructed to operate reliably up to a maximum temperature of 125°C.
- Compact dimensions of 26.5mm length, 15mm height, and 6mm width.
- Compliant with RoHS and UL safety standards.
- Lead pitch of 22.5mm and lead diameter of 0.8mm for secure mounting.
Product Description
The TDK B32523Q6224K000 film capacitor is a precision passive electronic component designed for demanding industrial and automotive applications. Featuring a capacitance of 220 nF, this capacitor is rated for 200V AC and 400V DC operation, making it suitable for a range of electrical circuits requiring stable and reliable capacitance.
Mount type is through hole with a lead pitch of 22.5mm and lead diameter of 0.8mm, facilitating robust PCB mounting. The component’s compact size of 26.5mm length, 15mm height, and 6mm width supports integration into space-constrained environments.
The capacitor is built to meet the AEC-Q200 Rev D automotive standard, guaranteeing high pulse strength and contact reliability critical for automotive electronics. It also operates reliably in temperatures up to 125°C, ensuring durability under harsh conditions.
This product complies with RoHS and UL standards, assuring environmental safety and quality. Its applications include blocking, coupling, decoupling, and bypassing electrical signals, with effectiveness in reducing radio frequency interference (RFI) particularly in automotive systems.
High pulse strength for demanding applications. Reliable through hole mounting with precise lead dimensions. Compact size suited for dense electronic assemblies. Automotive-grade quality with AEC-Q200 Rev D certification.
Wide operating temperature range up to 125°C. RoHS and UL compliant ensuring safety and compliance. Effective for RFI reduction in automotive electronic circuits. Versatile uses such as blocking, coupling, decoupling, and bypassing.
Manufactured in India with consistent quality control.
This Film Capacitor is essential for engineers and designers focusing on automotive, industrial, and electronic applications requiring precise capacitance and robust environmental resistance. Explore more products like this in the Electronics Components section of EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance of this model is 220 nF.
It is rated for 200V AC and 400V DC operation.
The maximum operating temperature is 125°C.
The dimensions are 26.5mm in length, 15mm in height, and 6mm in width.
The lead pitch is 22.5mm and the lead diameter is 0.8mm.
This model uses a through hole mounting type.
It meets the AEC-Q200 Rev D automotive standard for reliability.
It complies with RoHS and UL safety standards.
It is suitable for blocking, coupling, decoupling, and bypassing circuits.
This product is manufactured in India.
The pin count for this model is 2.
It is effective in reducing radio frequency interference (RFI), particularly in automotive systems.
