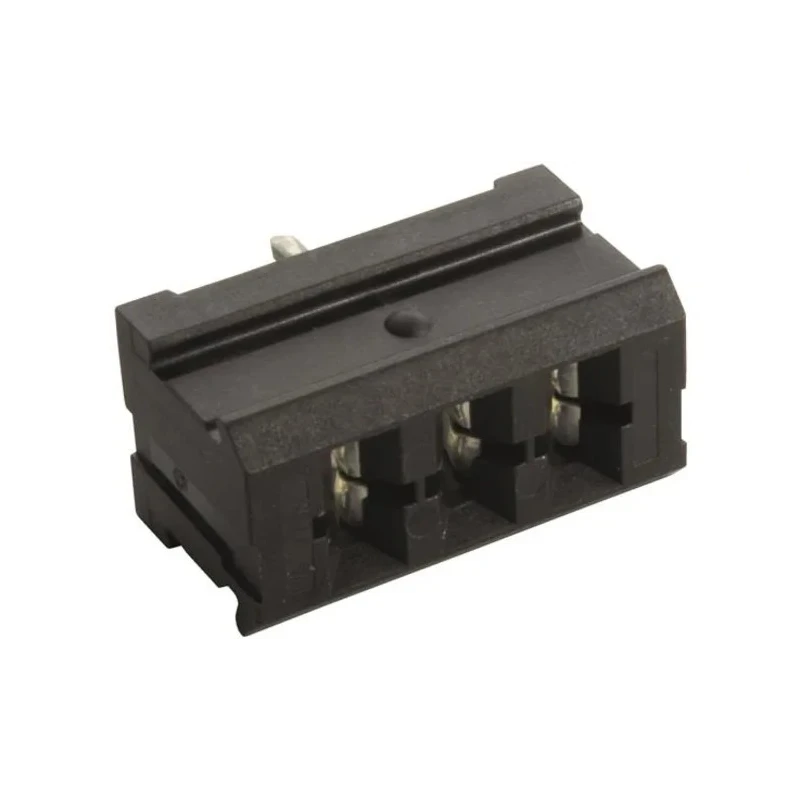

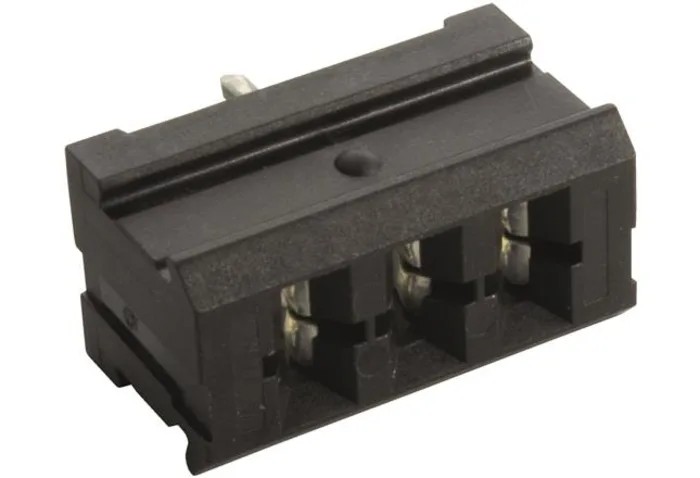

HARTING har-modular Series Straight PCB Header, 3 Contact, 5.08 mm Pitch, 1 Row, Polyamide Housing, Copper Alloy 02529031301
Specifications
| Country of Origin | Romania |
|---|---|
| Brand | HARTING |
| Orientation | Straight |
| Current | 15A |
| Housing Material | Polyamide |
| Contact Material | Copper Alloy |
| Series | har-modular |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 5.08mm |
| Contact Plating | Silver |
| Number of Contacts | 3 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Constructed with high-quality polyamide housing for durability and electrical insulation.
- Features a 5.08 mm pitch and single row design suitable for compact PCB layouts.
- Supports continuous current up to 15 A for robust power handling.
- Copper alloy contact material ensures excellent conductivity and corrosion resistance.
- Wide operating temperature range from -55°C to 125°C for diverse environment applications.
- Designed with wave soldering termination for secure PCB mounting.
- Silver plating on contacts improves signal integrity and wear resistance.
- Straight orientation facilitates easy connection in vertical PCB arrangements.
Product Description
The HARTING har-modular Series Straight PCB Header (Model 02529031301) is a high-performance board-to-board connector featuring 3 female contacts with a 5.08 mm pitch and a single row configuration. It is constructed with a durable polyamide housing that provides excellent electrical insulation and mechanical robustness for demanding industrial and electronic applications.
The contact material is a high-quality copper alloy plated with silver to enhance conductivity and resist corrosion. This connector is designed to carry a current of up to 15 amperes, making it suitable for power distribution as well as signal applications.
The product supports a wide operating temperature range from -55°C to +125°C, ensuring reliable operation in harsh environmental conditions. The straight orientation and wave soldering termination enable secure and compact PCB assembly, ideal for electronic components and power connectors in industrial automation, telecommunications, and control systems.
Durable polyamide housing ensures electrical safety and mechanical strength. 3 female copper alloy contacts with silver plating for high conductivity. 5.08 mm pitch and single row design fits compact PCB layouts. Supports currents up to 15 A for robust power and signal transmission.
Wide temperature range (-55°C to 125°C) for versatile applications. Straight orientation simplifies board-to-board connection designs. Wave soldering termination provides reliable PCB mount integrity. Manufactured in Romania with adherence to quality standards.
This HARTING PCB Header is widely used in industrial electronics, including manufacturing equipment, power supply modules, telecommunications, and control panels. It is part of the har-modular series which is known for modularity and flexibility in electronic system design.
Explore more high-quality connectors and electronic components at EnvMart to meet your industrial and laboratory needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum continuous current of 15 A, making it suitable for both power and signal applications.
The housing is made from polyamide, while the contacts are constructed from copper alloy and feature silver plating for enhanced conductivity and corrosion resistance.
The contacts in this header are spaced at a pitch of 5.08 mm, which is suitable for compact PCB layouts.
It operates within a wide temperature range of -55°C to +125°C, allowing it to function in diverse environmental conditions.
This model features 3 female contacts, designed for board-to-board connections.
It is designed with wave soldering termination, which ensures a secure and reliable mounting on the PCB.
The orientation is straight, facilitating easy connections in vertical PCB arrangements.
This PCB header is manufactured in Romania, adhering to quality standards in its production.
It belongs to the har-modular series, known for its modularity and flexibility in electronic system design.
It is widely used in industrial electronics, including manufacturing equipment, power supply modules, telecommunications, and control panels.
This connector has a single row configuration with 3 female contacts, making it compact for PCB layouts.
Silver plating improves signal integrity and wear resistance, enhancing the overall performance of the connector.
