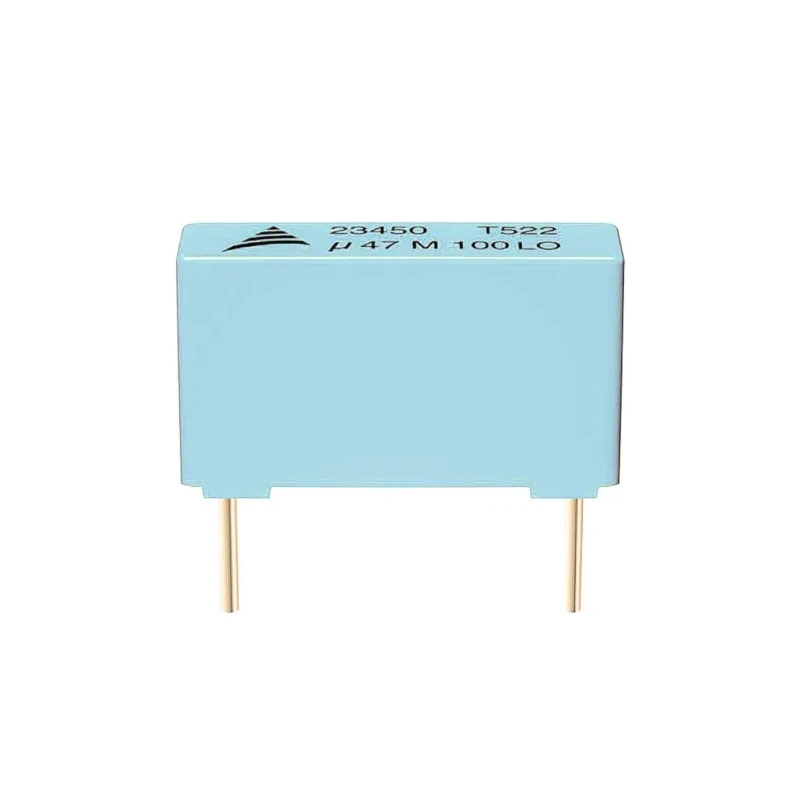

TDK Film Capacitor Through Hole Mount 340pF 160V AC 250V DC AEC-Q200 B32522C3334K000
Specifications
| Country of Origin | Brazil |
|---|---|
| Brand | TDK |
| Height | 10.5mm |
| Length | 18mm |
| Model | B32522C3334K000 |
| Width | 5mm |
| Mount Type | Through Hole |
| Series | B32522 |
| Maximum Operating Temperature | 125°C |
| Capacitance | 330nF |
| Standards/Approvals | RoHS, UL |
| Pin Count | 2 |
| Rated AC Voltage | 160V ac |
| Rated DC Voltage | 250V dc |
| Lead Pitch | 15mm |
| Lead Diameter | 0.8mm |
| Automotive Standard | AEC-Q200 Rev D |
Key Features
- Capacitance of 330 nF suitable for blocking and coupling applications.
- Rated AC voltage of 160 V and DC voltage of 250 V for reliable operation.
- Mount type is through hole with a 15 mm lead pitch and 2 pins.
- Maximum operating temperature of 125 degrees Celsius enhances durability.
- Compliant with automotive standard AEC-Q200 Rev D for high reliability.
- Lead diameter is 0.8 mm ensuring stable electrical connections.
- High pulse strength and high contact reliability for demanding circuits.
- RoHS and UL standards compliances ensure environmental and safety conformity.
Product Description
TDK B32522C3334K000 Film Capacitor is a through hole mounted passive electronic component with a capacitance of 330 nF and voltage ratings of 160 V AC and 250 V DC. It is designed to offer high pulse strength and exceptional contact reliability, making it ideal for blocking, coupling, decoupling, and bypassing applications in automotive and industrial electronics.
This capacitor meets the stringent automotive AEC-Q200 Rev D standard, supporting applications that require robust performance under harsh conditions. Its compact form factor with dimensions of 18 mm length, 10.5 mm height, and 5 mm width with a 15 mm lead pitch and 0.8 mm lead diameter allows easy through hole PCB mounting.
Rated for operation up to 125 degrees Celsius, this component ensures long-term stability and durability in industrial, automotive, and commercial electronic systems. It is compliant with RoHS and UL approvals, guaranteeing environmentally safe and reliable use.
Capacitance of 330 nF suitable for electrical noise suppression and signal integrity. Voltage ratings: 160 V AC and 250 V DC for versatile circuit requirements. Automotive qualified to AEC-Q200 Rev D standard ensures suitability for automotive electronics.
Compact dimensions enable integration into space-constrained designs. Through hole mount type eases manual and automated PCB assembly. High pulse strength for reliable operation under transient conditions. RoHS and UL certifications support compliance with global standards.
Wide temperature rating up to 125°C allows use in demanding environments. High contact reliability reduces maintenance demand in industrial applications.
This Film Capacitor is widely applicable for blocking, coupling, decoupling, and RFI suppression in automotive and industrial electronics manufacturing. It is ideal for PCB assembly in power supplies, signal filtering modules, and other precision electronics requiring stable capacitance and high reliability.
Explore the Electronics Components category at EnvMart for more capacitors and passive components optimized for industrial and automotive use.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance of this film capacitor is 330 nF (nanofarads).
It has a rated AC voltage of 160 V and a rated DC voltage of 250 V.
The maximum operating temperature for this capacitor is 125 degrees Celsius.
The lead diameter is 0.8 mm, and the lead pitch is 15 mm.
The dimensions of this model are 18 mm in length, 10.5 mm in height, and 5 mm in width.
Yes, it is compliant with RoHS and UL standards, and it meets the automotive standard AEC-Q200 Rev D.
This capacitor is suitable for blocking, coupling, decoupling, and RFI suppression in automotive and industrial electronics.
This model has 2 pins.
It uses a through hole mounting type, which facilitates both manual and automated PCB assembly.
This capacitor belongs to the B32522 series.
It features high pulse strength and exceptional contact reliability, making it suitable for demanding circuits.
The country of origin for this capacitor is Brazil.
