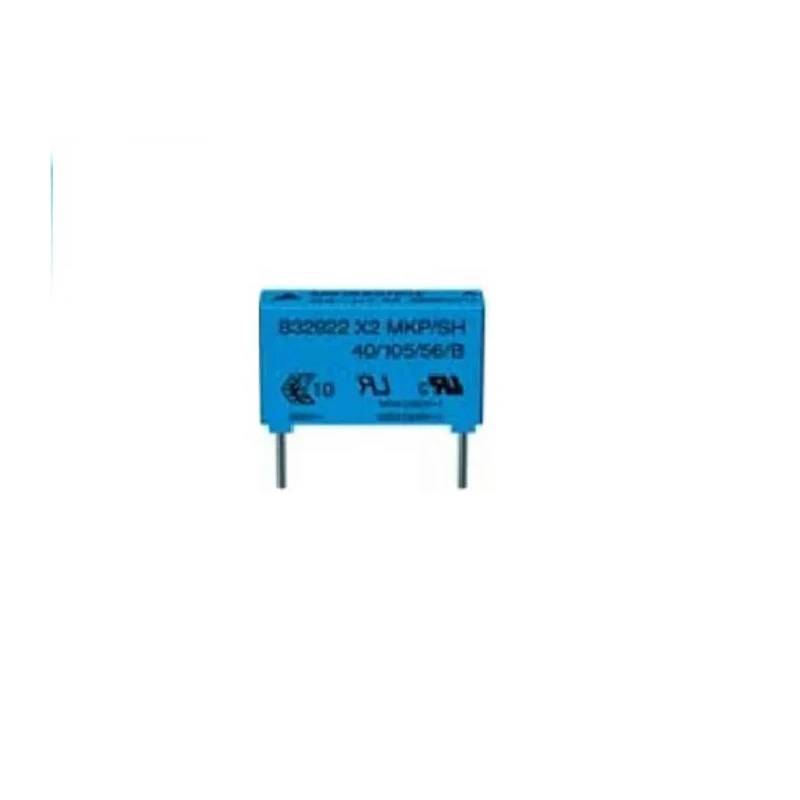

TDK Film Capacitor Through Hole 100 nF 530V AC 530V DC 2-Pin B32912A5104M000

The TDK B32912A5104M000 is a high-quality film capacitor designed for electrical and electronic applications requiring reliable high voltage performance and interference suppression. This capacitor features a capacitance of 100 nanofarads (nF) and supports rated voltages of 530V AC and 530V DC, making it suitable for power supply filtering, EMC applications, and other circuit protection uses.

The capacitor uses a polypropylene film dielectric, known for its excellent self-healing properties and stability under varying electrical stresses. Its through-hole mounting style with two pins and a lead pitch of 15mm offers straightforward integration into printed circuit boards. The device has compact dimensions of 18mm in length, 18.5mm in height, and 11mm in width, supporting compact electronic designs and assemblies.

With a maximum operating temperature of 110°C, the capacitor is built for durability under demanding environmental conditions. It is classified as suppression class X1, suitable for interference suppression to enhance electromagnetic compatibility (EMC) in electronic circuits. The leads are lead-free tinned with a diameter of 0.8mm to provide reliable solder connections.

This capacitor complies with RoHS and UL safety and environmental standards, ensuring that it meets international requirements for sustainable and safe electronic components. For manufacturers requiring environmentally friendly alternatives, halogen-free versions are available upon request.

Ideal for industrial, electronic manufacturing, laboratory equipment, and power electronics, the TDK B32912A5104M000 film capacitor combines compact size with strong electrical characteristics. It is engineered for use in applications where stable and reliable capacitance values are necessary for filtering, noise reduction, and transient voltage suppression.

Rated AC voltage of 530 volts ensures high voltage capability. Capacitance value of 100 nanofarads suitable for filtering and interference suppression. Through hole mounting type with 2 pin count for easy PCB installation.

Maximum operating temperature rating of 110°C enables reliable performance in harsh conditions. Compact dimensions measuring 18mm length, 18.5mm height, and 11mm width allow for space-efficient designs. Suppression class X1 suitable for interference suppression applications.

Leads have a pitch of 15mm and diameter of 0.8mm for secure connection. Complies with RoHS and UL standards, supporting environmental and safety regulations. Polypropylene film dielectric offers excellent self-healing and high voltage tolerance properties.

Halogen-free options are available on request for eco-friendly designs. Explore a wide range of TDK Film Capacitors and other electronic components on EnvMart to support your projects and industrial needs.
