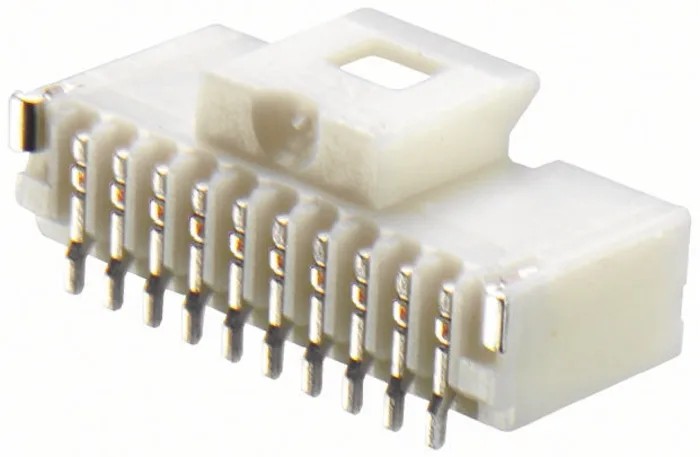

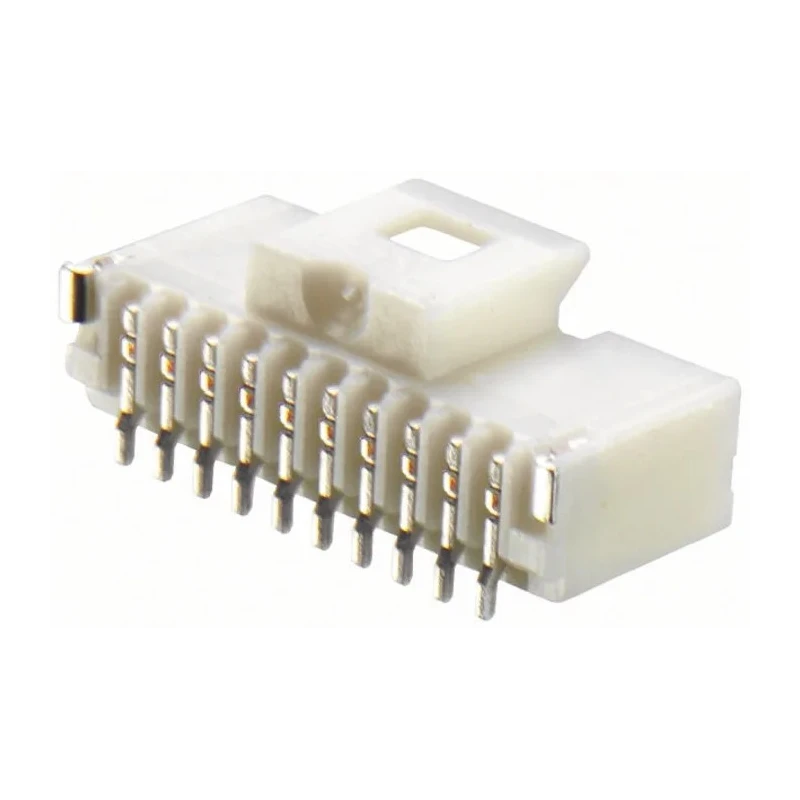

Molex Pico-Clasp Series Right Angle Surface PCB Header, 5 Contacts, 1 mm Pitch, 1 Row, Shrouded 501568-0507

Molex 501568-0507 Pico-Clasp Series Right Angle Surface PCB Header is a single-row, 5-contact wire-to-board connector system featuring a 1 mm pitch and shrouded design. This connector is engineered to provide reliable, high-density interconnections in compact electronic assemblies, suitable for industrial, electronic, and manufacturing applications.

The connector's housing is made from robust nylon material, which offers excellent electrical insulation and mechanical strength. The contacts are crafted from brass with tin plating to enhance conductivity and resist corrosion, ensuring long-term performance.

Its right-angle surface mount design allows efficient use of board space, making it ideal for applications requiring compactness and secure mounting. The integrated positive locking mechanism inside the header enhances connection security during operation.

Electrical specifications include a voltage rating of 50 V and a current rating of 1 A, suitable for low-power electronic applications. The connector is capable of operating in a wide temperature range from -40°C minimum to 105°C maximum, supporting demanding environmental conditions.

Termination is by solder, facilitating reliable connection to the PCB. Manufactured in Japan, the product adheres to high quality production standards, ensuring consistent performance and longevity.

The series provides a single row, 1 mm pitch interface for compact PCB design. Constructed with a nylon housing offering durability and electrical insulation. Contacts are brass with tin plating, ensuring effective conductivity and corrosion resistance.

Designed for surface mount applications with a right angle orientation for space-saving layouts. Operates reliably over a temperature range from -40°C to 105°C. Supports a maximum voltage of 50 V and current rating of 1 A.

Positive locking mechanism inside the header ensures secure connections. Termination type is solder, suitable for assembly on PCB. The product is manufactured in Japan maintaining high-quality standards.

This connector is widely used in electronic manufacturing, industrial control systems, consumer electronics, and other sectors where reliably small and secure PCB connections are required. The Molex Pico-Clasp series facilitates easy and efficient wire-to-board interfacing without compromising durability or performance.
