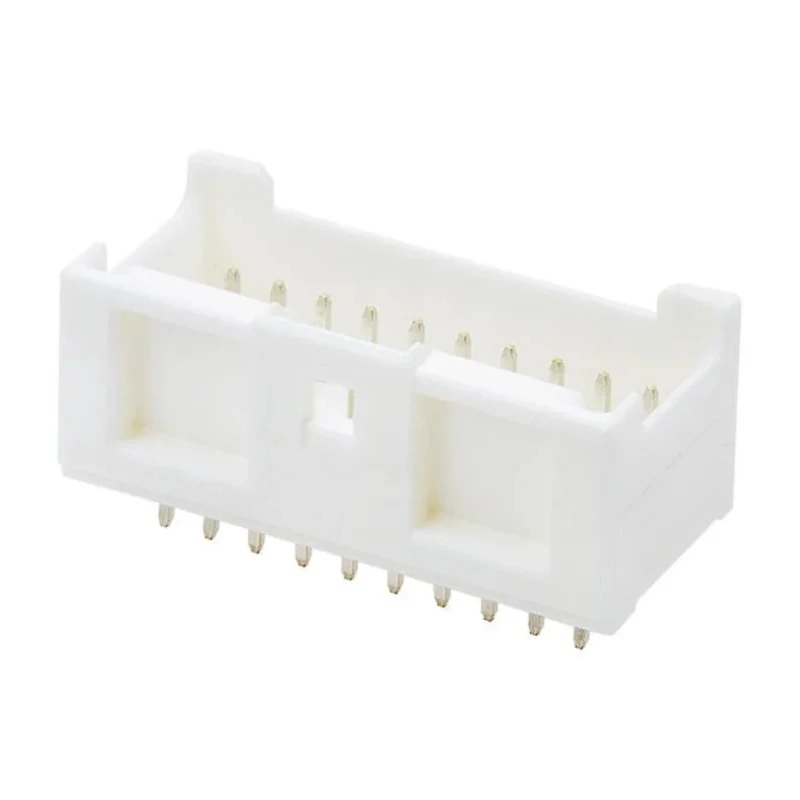

Molex MicroClasp Series Straight Through Hole PCB Header 20 Contacts 2 mm Pitch 2 Row Shrouded 55917-2010
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Brass |
| Series | MicroClasp |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Interfaces | lance system |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Tin |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.2mm |
| Mating Pin Length | 2mm |
Key Features
- Features a 2.00 mm pitch with a double row shrouded design providing connection stability.
- Constructed with polyester housing for durability and thermal stability.
- Brass contacts plated with tin ensure low insertion force and resistance to corrosion.
- Rated for 3A current and 250V voltage, suitable for compact PCB applications.
- Designed with an inner positive lock and latch protection for secure mating and audible click confirmation.
- Operating temperature range from -40°C to 105°C for versatile environmental conditions.
- Through-hole mount type with straight orientation for easy PCB integration.
- Contact gender is male with a tail pin length of 3.2 mm and mating pin length of 2 mm.
Product Description
Molex 55917-2010 MicroClasp Series Straight Through Hole PCB Header is a high-performance wire-to-board connector designed for PCB applications requiring space saving and secure connections.
This 20-contact, 2 mm pitch header offers a compact double row configuration with a shrouded housing to ensure reliable engagement and protection against damage.
Featuring a durable polyester housing and brass contacts with tin plating, it provides low insertion and withdrawal forces while maintaining excellent electrical conductivity and corrosion resistance.
The MicroClasp series incorporates a unique inner positive lock mechanism that delivers secure retention, latch protection, and an audible mating click, enhancing assembly confidence in industrial and manufacturing contexts.
With a current rating of 3A and voltage rating of 250V, this header is suitable for a wide range of electronics, including industrial control, automation, communications, and consumer electronics.
2.00 mm pitch with double row and shrouded design for compact PCB layouts. Polyester housing material offering mechanical and thermal robustness. Brass contacts with tin plating ensure effective electrical performance and reliability.
Inner positive lock technology provides secure and easy mating/unmating operation. Rated for 3A current and 250V voltage, supporting demanding applications. Wide operating temperature range from -40°C to 105°C enables use in diverse environments.
Through-hole mounting and straight orientation simplifies PCB assembly processes. Contact configuration with male gender, 3.2 mm tail pin length, and 2 mm mating pin length.
This Molex MicroClasp PCB header is ideal for applications in electronic manufacturing, industrial automation, communication devices, and other environments demanding reliable wire-to-board connections.
Explore related PCB Headers and connectors in the Electronics & Electricals category at EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a 2.00 mm pitch with a double row configuration, designed for compact PCB layouts.
It is rated for a current of 3A and a voltage of 250V, making it suitable for various electronic applications.
The housing is made of polyester, while the contacts are brass with tin plating, ensuring effective electrical performance and corrosion resistance.
This unit features a through-hole mount type, which simplifies the PCB assembly process.
The tail pin length is 3.2 mm, and the mating pin length is 2 mm.
It uses a solder termination type for reliable electrical connections.
The contact gender is male, designed for wire-to-board applications.
This PCB header is manufactured in India.
It belongs to the wire-to-board connector system, suitable for various electronic applications.
The shrouded design provides connection stability and protection against damage during use.
