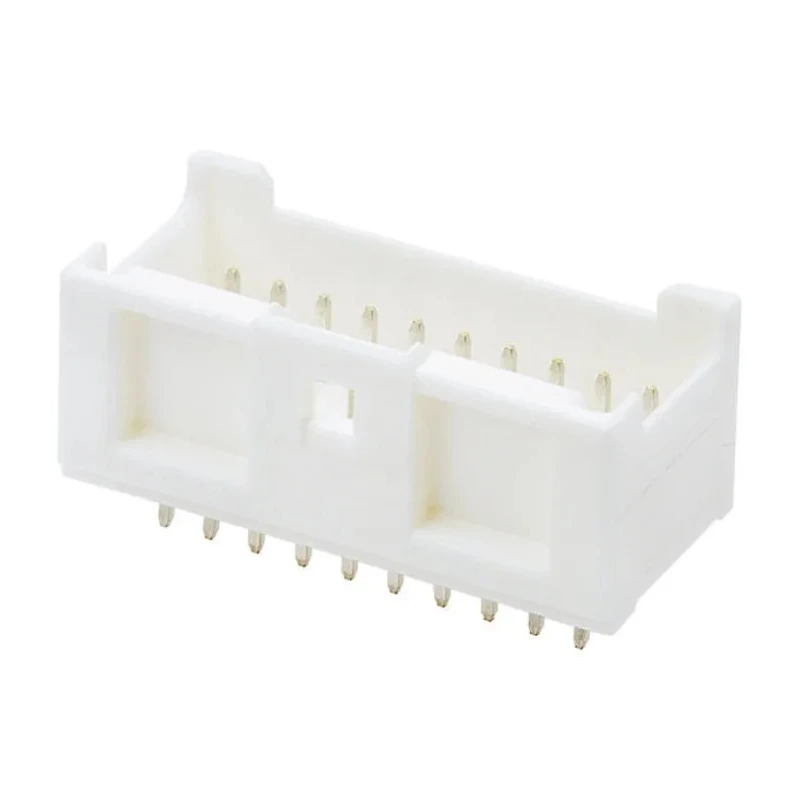

Molex MicroClasp Series Straight Through Hole PCB Header, 20 Contacts, 2 mm Pitch, 2 Row, Shrouded 55917-2010
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Brass |
| Series | MicroClasp |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Interfaces | lance system |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Tin |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.2mm |
| Mating Pin Length | 2mm |
Key Features
- Features a shrouded housing made from durable polyester for protection and insulation.
- Provides a double row, straight orientation with 20 brass contacts plated with tin.
- Supports operating temperatures from -40°C to 105°C for varied environments.
- Designed for through-hole mounting with low insertion forces for assembly efficiency.
- Rated for 3A current carrying capacity and 250V operating voltage.
- Includes a unique inner positive lock for secure retention and audible mating click.
- Tail pin length is 3.2 mm with a mating pin length of 2 mm for reliable solder termination.
Product Description
Molex 55917-2010 MicroClasp Series Straight Through Hole PCB Header features a 2.00 mm pitch double row design with 20 male contacts. It is constructed with a polyester housing, brass contact material, and tin plating, designed for wire-to-board connector systems using through-hole solder termination. This shrouded header supports a current rating of 3A and an operating voltage of 250V, suitable for industrial electronics requiring reliable and secure PCB connections.
The MicroClasp™ range offers significant PCB space savings, a low insertion force terminal design, and a unique latch system that ensures a secure connection with an audible click when mated. Its temperature rating from -40°C to 105°C allows use in harsh industrial environments.
Applications include electronics manufacturing, industrial control systems, HVAC equipment, and general electronic assembly requiring durable and compact PCB connectors. Durable polyester housing for electrical insulation and mechanical protection.
Brass male contacts with tin plating ensure excellent conductivity and corrosion resistance. Inner positive lock mechanism prevents accidental disconnection and improves retention. Designed to carry up to 3A current safely in a compact 2 mm pitch format.
Through-hole mounting provides strong mechanical stability on PCBs. Operating temperature range from -40°C to 105°C supports diverse industrial use cases. Ideal for applications demanding secure, easy mating and unmating of connectors.
This product contains 1 piece of Molex 55917-2010 MicroClasp PCB header with 20 contacts and 2 rows, meeting requirements for high-quality PCB connector solutions. Explore more Molex PCB Header products and connectors at EnvMart to find the best fit for your electronics projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current carrying capacity of 3A.
It supports an operating voltage of 250V.
The contacts have a pitch of 2 mm.
It operates within a temperature range of -40°C to 105°C.
This unit features 20 male contacts.
The housing is made from polyester, and the contacts are brass with tin plating.
It is designed for through-hole mounting.
The tail pin length is 3.2 mm.
This model has a straight orientation with a double row design.
It uses solder termination for connections.
Yes, it includes a unique inner positive lock for secure retention and an audible mating click.
It is suitable for electronics manufacturing, industrial control systems, HVAC equipment, and general electronic assembly.
