Cinch Straight Edge Connector PCB 31-Contacts 2.54 mm Pitch 2 Row Solder BA000010000BE00

Free Delivery in India | Lowest Global Shipping Charges

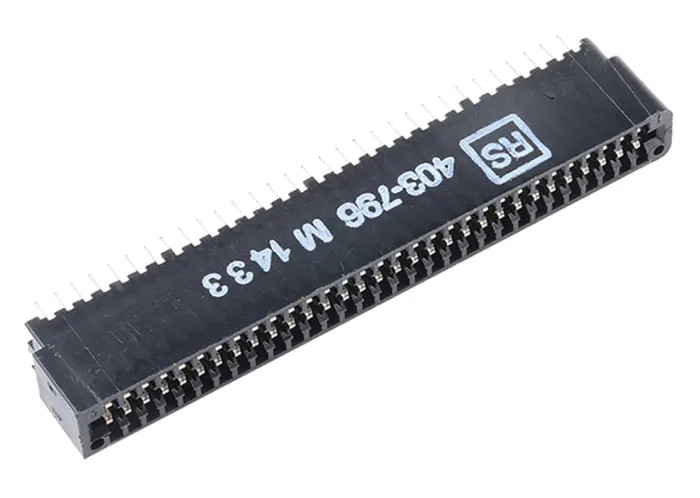

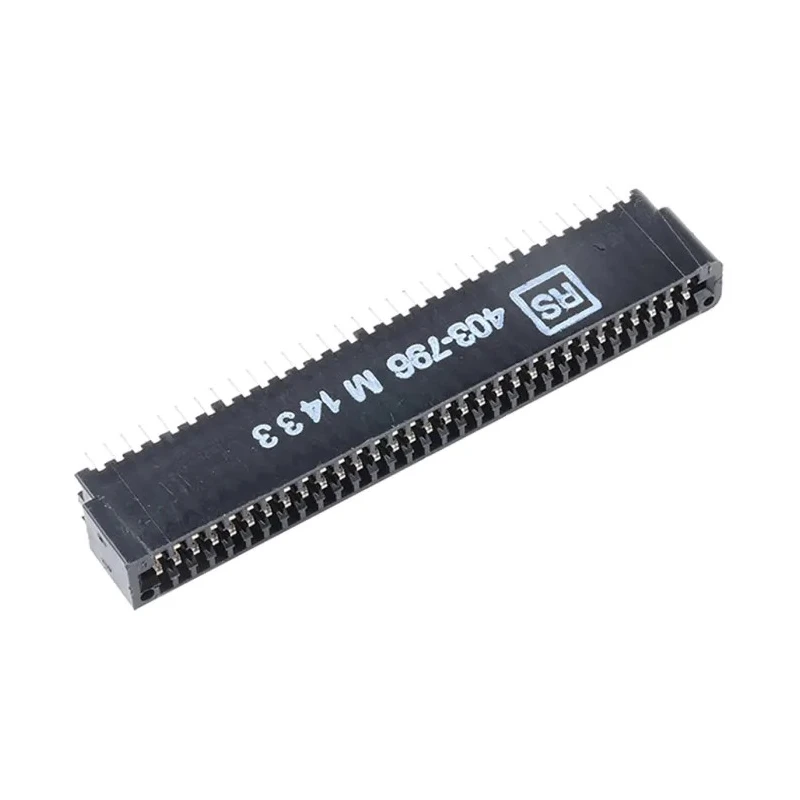

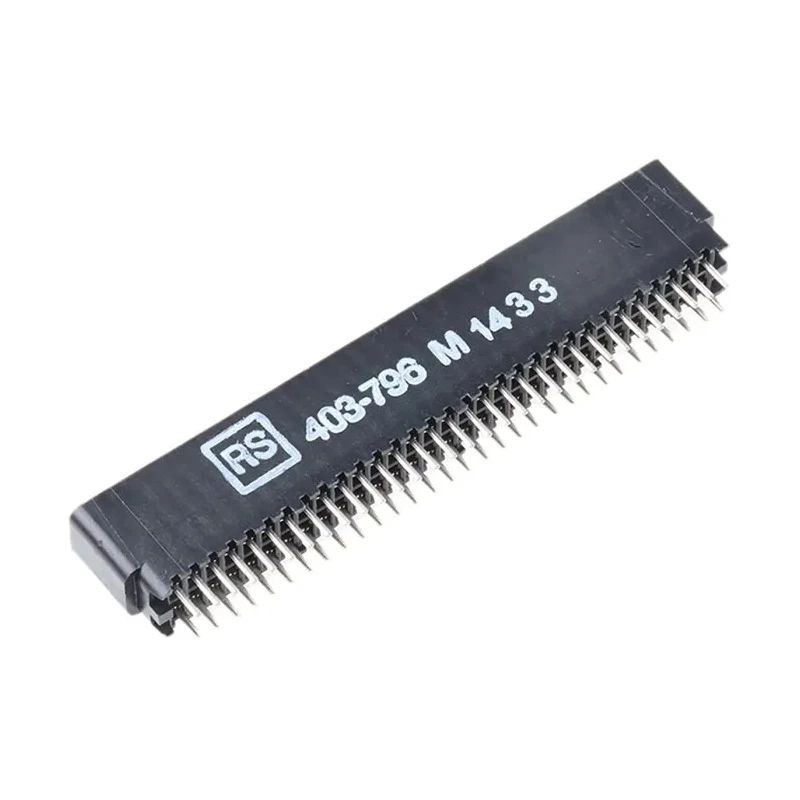

Cinch Straight Edge Connector PCB 31-Contacts 2.54 mm Pitch 2 Row Solder BA000010000BE00

Name: Cinch Straight Edge Connector PCB 31-Contacts 2.54 mm Pitch 2 Row Solder BA000010000BE00
Brand: Cinch
SKU: 160334
Price: 20.84 USD
Availability: InStock



Category Edge Connector Brand Cinch Condition New

Specifications

Country of Origin	United States
Brand	Cinch
Orientation	Straight
Current	3A
Model	BA000010000BE00
Mount Type	PCB
Housing Material	Fibreglass Reinforced Polyethylene Terephthalate
Contact Material	Brass
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold over Nickel
Number of Contacts	31
Card Type	Edge

Key Features

Features a straight orientation suitable for PCB mounting.
Supports a current rating of 3A for reliable electrical performance.
Constructed with brass contact material and gold over nickel plating for durability.
Has 2 rows with 31 contacts spaced at 2.54 mm pitch.
Termination type is solder, ensuring secure connection to PCBs.
Housing made of fibreglass reinforced polyethylene terephthalate for strength.
Operates reliably between -55°C and 105°C temperature range.
Includes polarizing key for correct mating and preventing mismating.

Product Description

Cinch BA000010000BE00 Straight Edge Connector is a high-quality PCB edge connector designed for electronic applications requiring reliable interconnection. It features 31 contacts arranged in 2 rows with a standard 2.54 mm pitch, allowing compatibility with IBM PC AT™ style edge connectors and similar PCB designs.

This connector supports a current rating of 3A and operates within a temperature range from -55°C to 105°C, making it suitable for demanding industrial and electronic environments. The contacts are made from brass and plated with gold over nickel, ensuring excellent conductivity and resistance to corrosion.

The housing material is fibreglass reinforced polyethylene terephthalate, providing excellent mechanical strength and electrical insulation. It has UL94V-0 flame-retardant insulation rating for safety compliance. The 0.156 in (3.96 mm) DIP solder tails facilitate reliable mounting to printed circuit boards via soldering.

The connector includes a polarizing key to prevent incorrect mating during installation, enhancing system reliability. This edge connector is ideal for use in industrial equipment, PCB assemblies, test and measurement instruments, and general electronics manufacturing.

Straight orientation edge connector suitable for PCB applications. 31 gold-plated contacts arranged in 2 rows with 2.54 mm pitch. Termination by solder tails for secure PCB attachment. Operating temperature range of -55°C to 105°C.

Fibreglass reinforced polyester housing with UL94V-0 rating. Polarizing key for correct mating and prevention of errors. Contact material brass with gold over nickel plating. Current rating of 3A for standard electrical applications.

Manufactured in the United States ensuring high quality.
