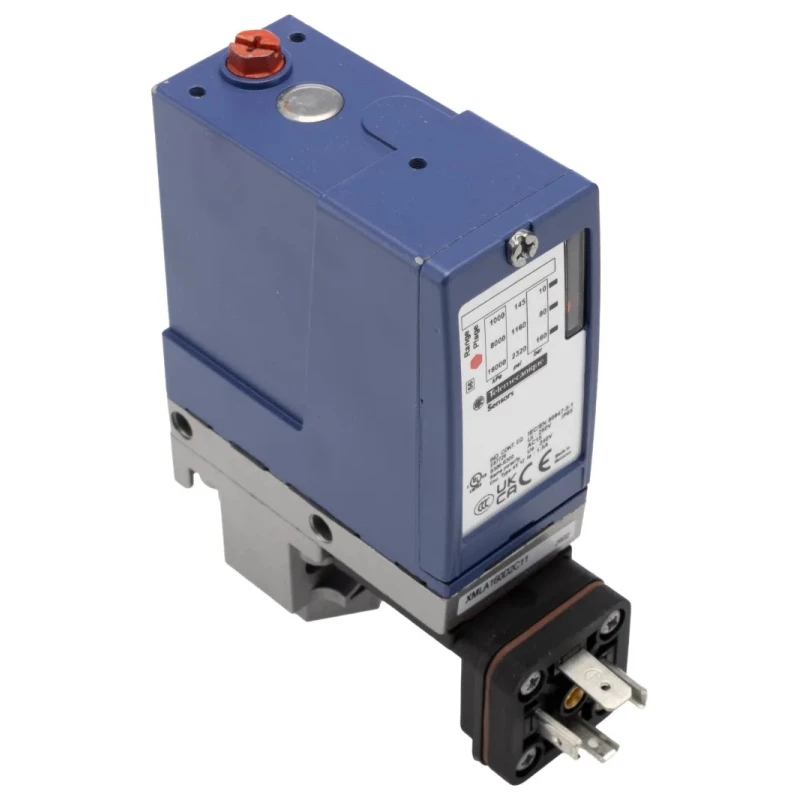

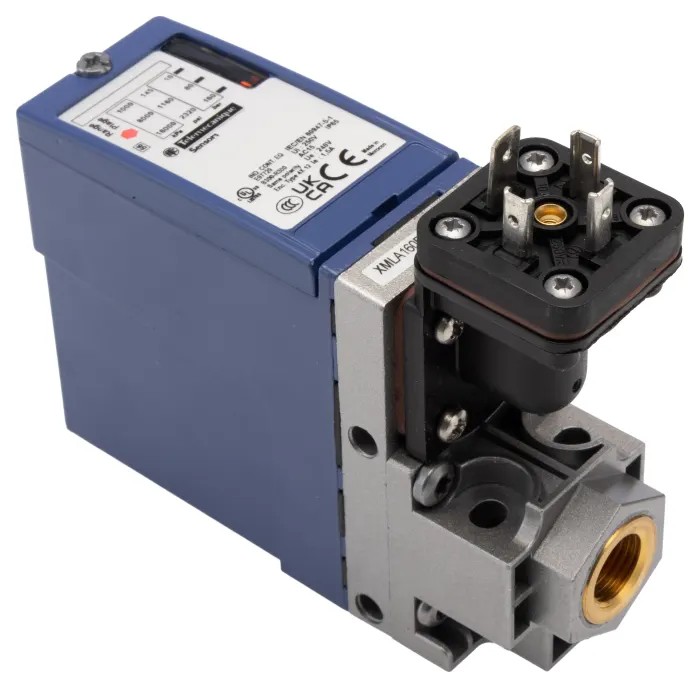

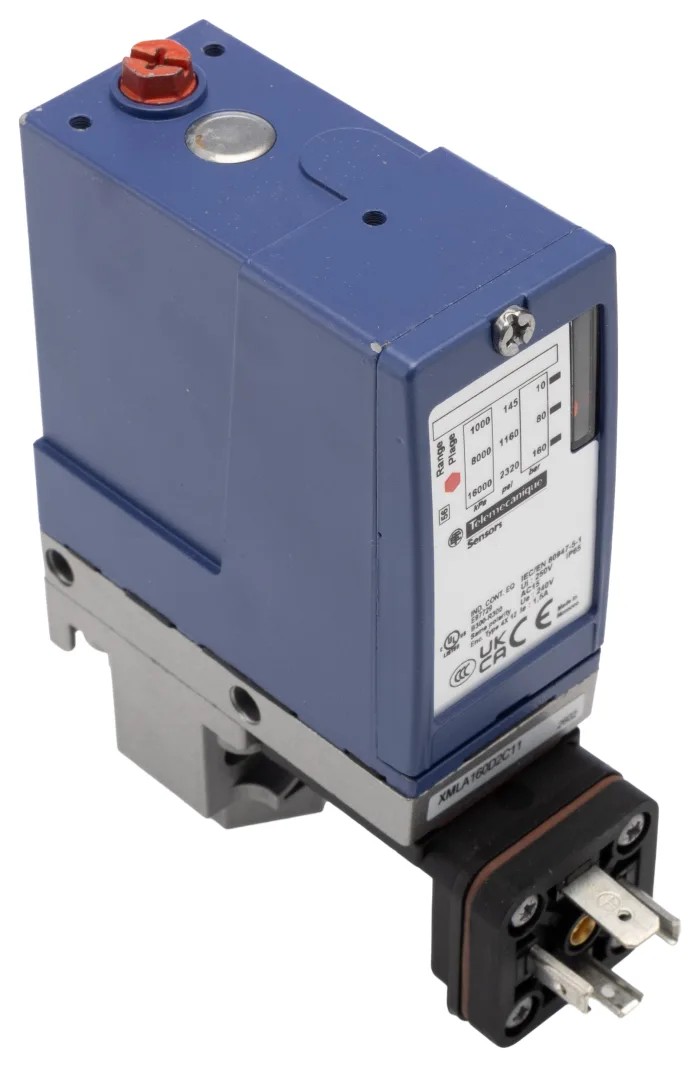

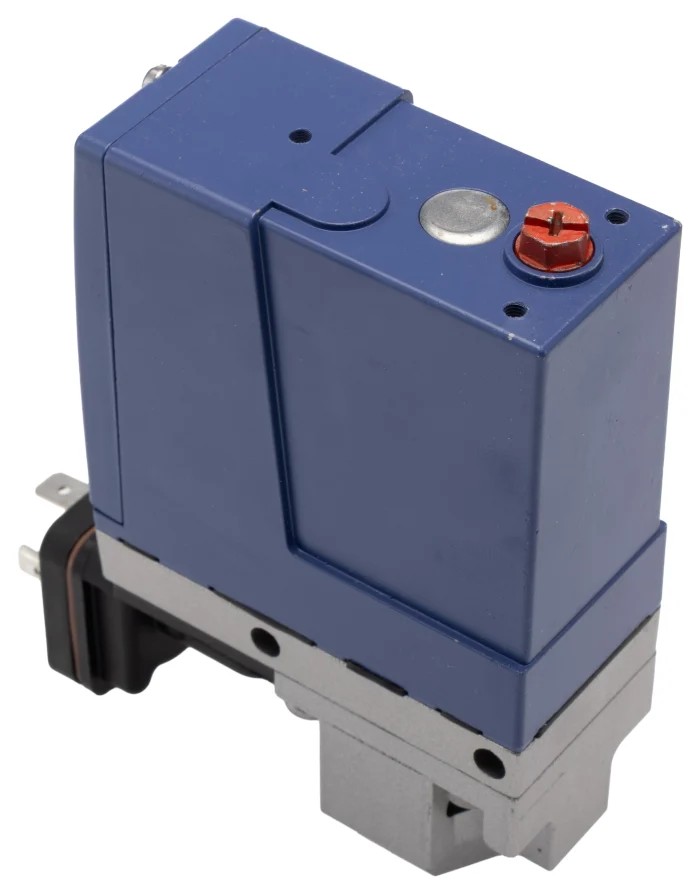

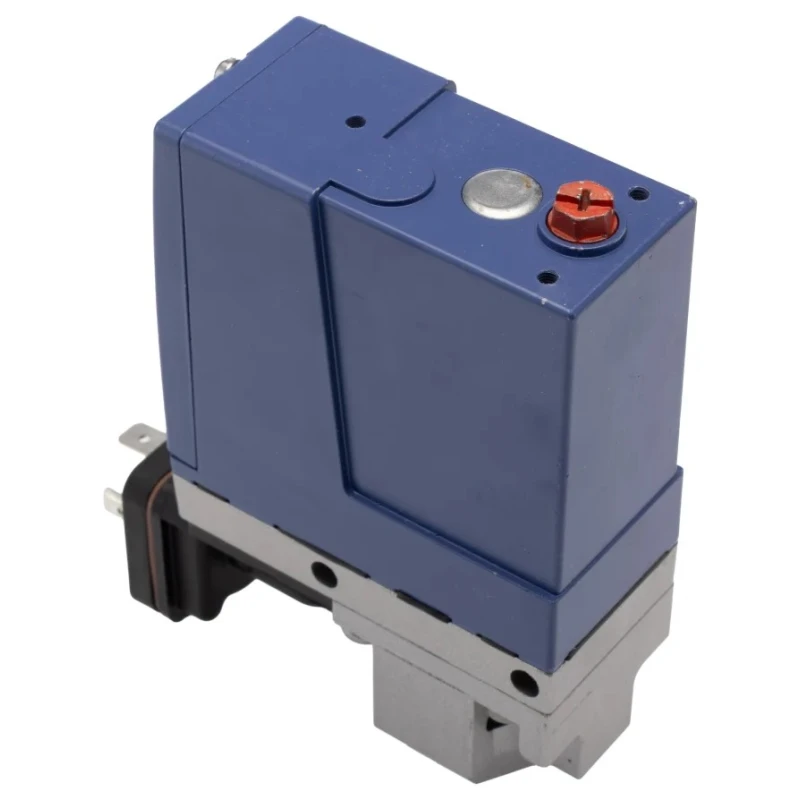

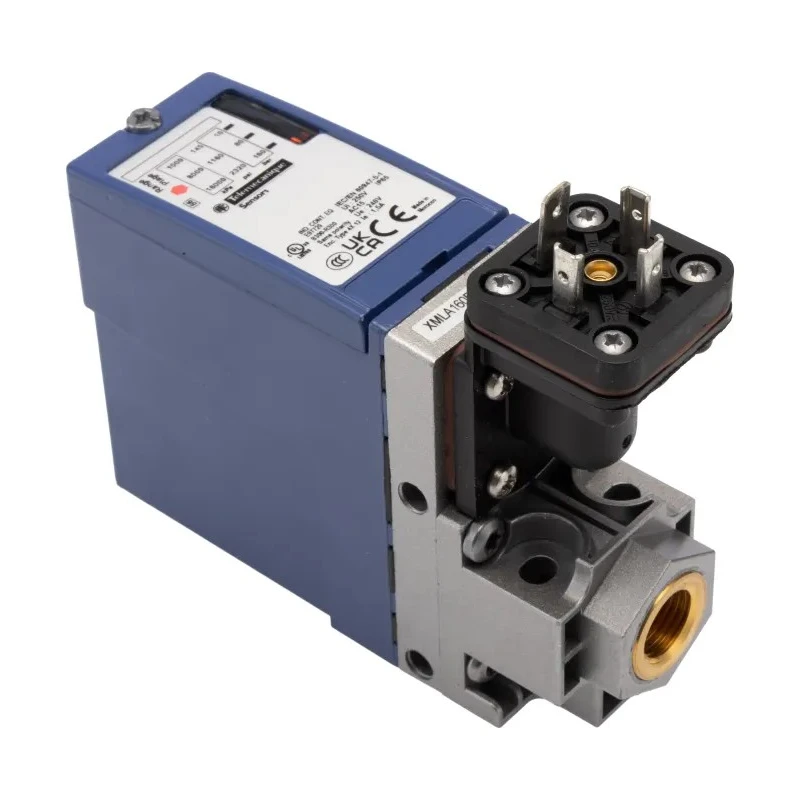

Telemecanique Sensors XMLA Series Pressure Switch 0 bar to 160 bar 240V AC Panel Mount IP65 IP66 XMLA160D2C11

Telemecanique Sensors XMLA160D2C11 Pressure Switch offers precise and reliable control of pressure in various industrial and automation systems. With a pressure measurement range from 0 bar to 160 bar and an accuracy of 2%, it effectively monitors pressures in hydraulic oils, fresh water, sea water, air, steam, corrosive fluids, and viscous products.

The robust zinc alloy housing provides mechanical strength and corrosion resistance, suitable for harsh environments where durability is essential. Designed for panel mounting, it includes convenient 1/4" NPT media connection and 1/2" NPT conduit connection, easing integration into existing systems.

The device is protected by IP65 rating with plug-in connector and IP66 rating with terminal connections, ensuring protection against dust and water ingress. It operates reliably within a temperature range of -25 to +70 °C and withstands a maximum operating temperature of 158 °C, expanding its usability in demanding applications.

Equipped with one normally open (NO) and one normally closed (NC) snap-acting contact with a fixed differential, the switch is intended for detection of a single pressure threshold in control circuits. It supports an operating rate of up to 120 operations per minute for diaphragm-based units and 60 per minute for piston types.

Certified to several international standards such as EN, CE, EAC, CSA, CCC, BV, LROS, and UL, this Pressure Switch meets rigorous safety and performance requirements essential in industrial automation, manufacturing, HVAC, and hydraulic systems.

Measures precise pressure range with 2% accuracy. Durable zinc alloy construction provides corrosion resistance. IP65 and IP66 rated enclosure for dust and water protection. Panel mount with standard NPT connections for easy installation.

Certified to multiple key international standards for quality assurance. Suitable for a variety of media including air, water, oils, and corrosive fluids. Supports high operating rates for demanding control tasks.

Ideal for industrial, laboratory, manufacturing, and HVAC applications that require accurate pressure monitoring and switching functions. Explore our wide selection of Telemecanique Sensors products at EnvMart for reliable automation solutions.
