Winslow W3100 2.54 mm Pitch Vertical 40 Way Through Hole Stamped Pin Open Frame DIL Socket 10A W3140TRC

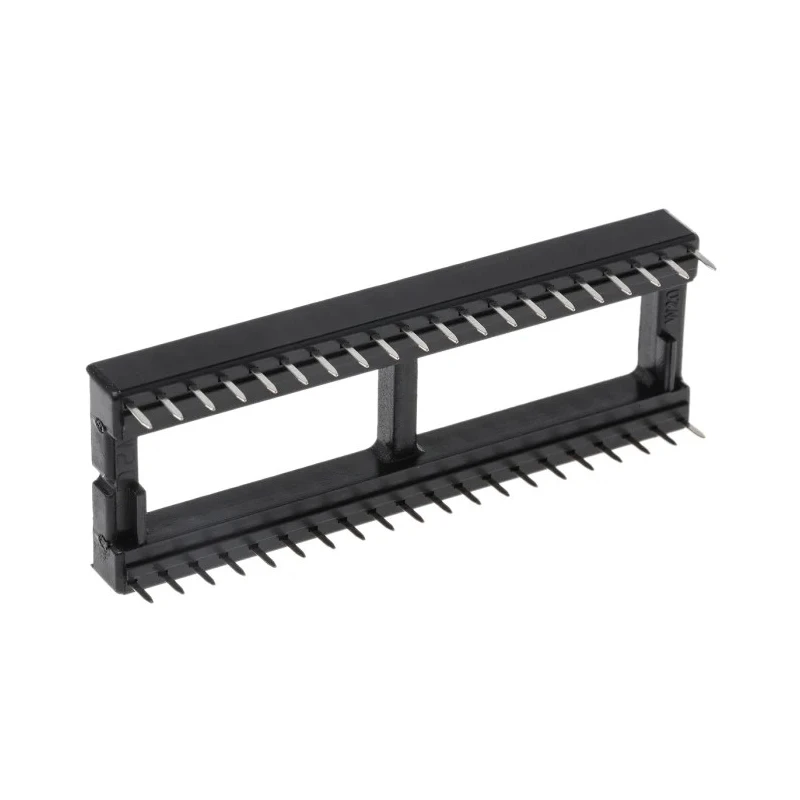

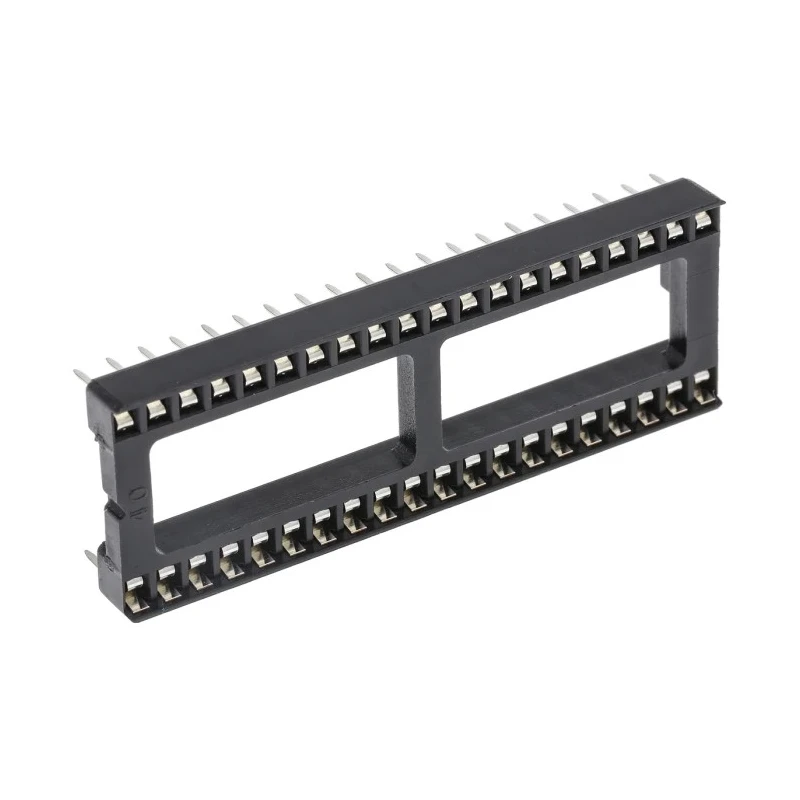

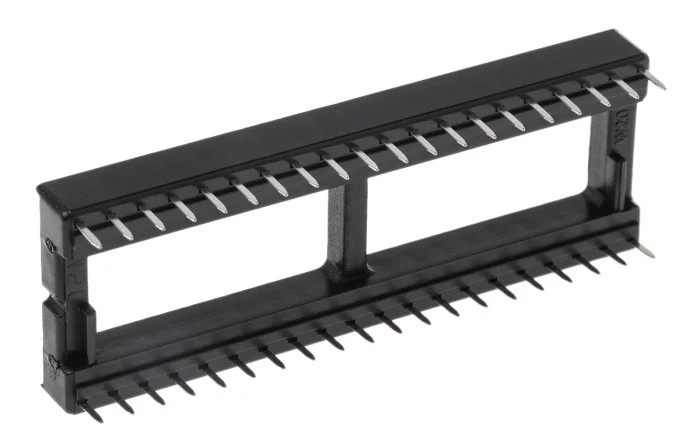

Winslow W3140TRC DIL Socket is a high-quality electronic component featuring a 2.54 mm pitch and 40 contact points in a vertical, through-hole, stamped pin configuration. This open frame DIL socket is rated for a continuous current of 10A and is engineered to endure a maximum operating temperature of 150°C.

The socket houses phosphor bronze contacts with tin plating, providing excellent electrical conductivity and resistance to corrosion. The dual wipe contact mechanism ensures a reliable connection with IC leads, enhancing contact retention while keeping costs efficient. Its vertical orientation and 15.24 mm row width facilitate integration into tightly packed circuit board layouts.

The robust housing made from polybutylene terephthalate offers superior mechanical strength and thermal resistance, suitable for demanding industrial, laboratory, and manufacturing environments. The socket's design features include a large lead-in area for easy IC insertion, overstress protection, and angled contacts to prevent insertion damage, all contributing to component longevity and stable performance during operation.

Socket dimensions are precisely 50.67 mm in length, 17.78 mm in depth, and 4.5 mm in width, allowing for compact yet accessible placement on printed circuit boards (PCBs). The product aligns with the W3100 series of Winslow DIL sockets, made in the United Kingdom, ensuring consistent quality and product support.

Constructed with phosphor bronze contacts ensuring durability and reliable conductivity. Features tin-plated dual wipe contacts for excellent contact retention and corrosion resistance. Designed for vertical orientation with a 15.24 mm row width and an open frame structure.

Utilizes polybutylene terephthalate housing providing mechanical strength and thermal stability. Rated for a maximum operating temperature of 150°C suitable for demanding environments. Overall socket dimensions include 50.67 mm length, 17.78 mm depth, and 4.5 mm width.

Optimized for easy package insertion with overstress protection and 35-degree angled contacts to prevent IC leg misalignment. Ideal for high density circuit layouts and industrial electronics applications. Manufactured in the United Kingdom to ensure high quality standards and reliability.

This DIL socket is widely used in electronic manufacturing, testing, laboratory equipment, and industrial control systems requiring secure and reliable IC placement. It facilitates maintenance and replacement without soldering, reducing downtime and promoting system modularity.
