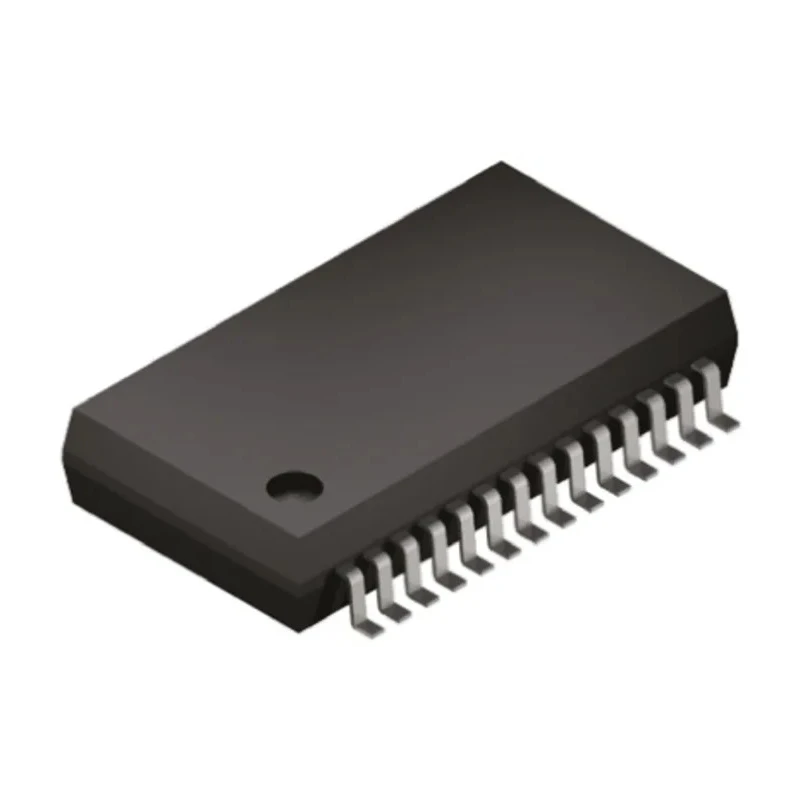

Maxim Integrated Line Transceiver, CMOS, Inverting, 28-Pin SSOP MAX211EAI+

Maxim Integrated's MAX211EAI+ is a CMOS line transceiver designed for inverting logic functions, packaged in a compact 28-pin SSOP suitable for advanced communication interface applications.

This IC functions as a line driver and receiver supporting RS-232 standards, offering excellent signal integrity for multi-channel data transmission systems. The device operates from a nominal 4.5 to 5.5 V supply voltage, delivering precise timing with a maximum propagation delay of 10 microseconds at a capacitive load.

Its CMOS logic family compatibility allows seamless integration with TTL logic devices. The transceiver features 60 mA maximum high-level output current and 10 mA low-level output current, enabling robust line driving capability with efficient power consumption of 20 mA supply current.

Engineered for harsh industrial environments, it sustains operation across a temperature range of -40°C to 85°C, ensuring durability and reliability. The 28-pin SSOP surface mount package measures 10.33 mm by 7.9 mm by 1.99 mm, accommodating compact and space-sensitive PCB layouts.

Applications include RS-232 multi-channel transmitters and receivers useful in industrial, manufacturing, communications, laboratory instrumentation, and other electronic interface contexts.

This transceiver operates within a supply voltage range of 4.5 to 5.5 V ensuring reliable CMOS logic level interfacing. Designed with a pin count of 28 suitable for surface mount SSOP package applications. Offers maximum high-level output current of 60 mA and low-level output current of 10 mA for driving communication lines efficiently.

Operates reliably between temperatures of -40°C to 85°C, suitable for industrial environments. Maximum propagation delay time at capacitive load is 10 microseconds enhancing signal timing accuracy in data transmission. Supply current is approximately 20 mA, enabling power-efficient operation in integrated circuits.

Polarity is inverting, compatible with RS-232 compatible line protocols. Package is surface mount SSOP, facilitating integration in modern PCB designs. Dimensions are compact with length 10.33 mm, width 7.9 mm, and height 1.99 mm ensuring space-efficient assembly.

Logic family supported is CMOS/TTL, providing flexibility in interfacing with various digital circuits. Explore the full range of interface ICs and line transceivers within EnvMart for your electronic design and manufacturing needs.
