TDK Film Capacitor 3.3nF 500V AC 1.6kV DC Through Hole 2 Pins B32652A1332K000

Free Delivery in India | Lowest Global Shipping Charges

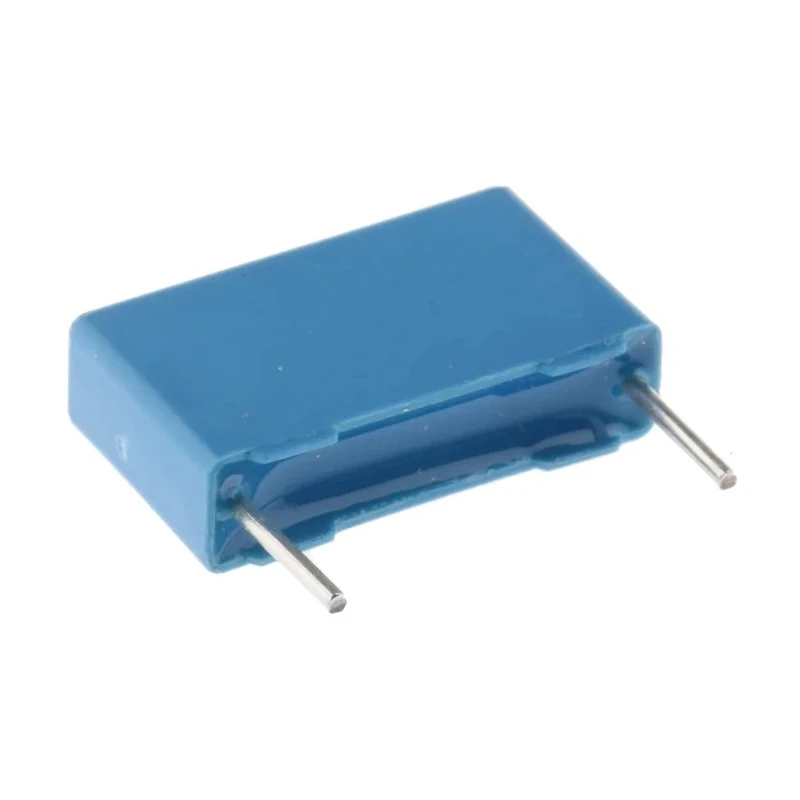

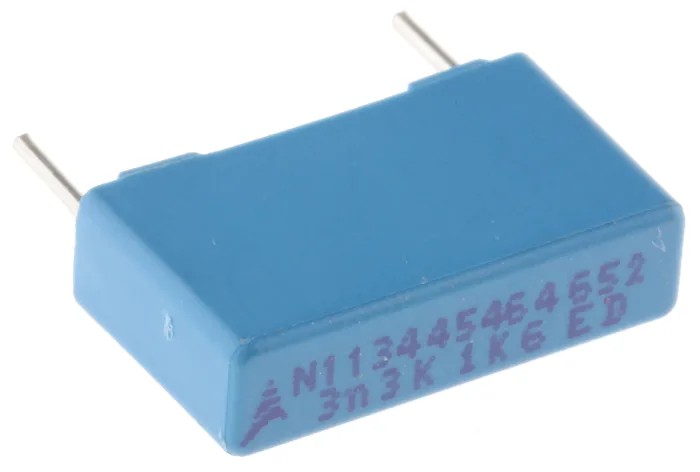

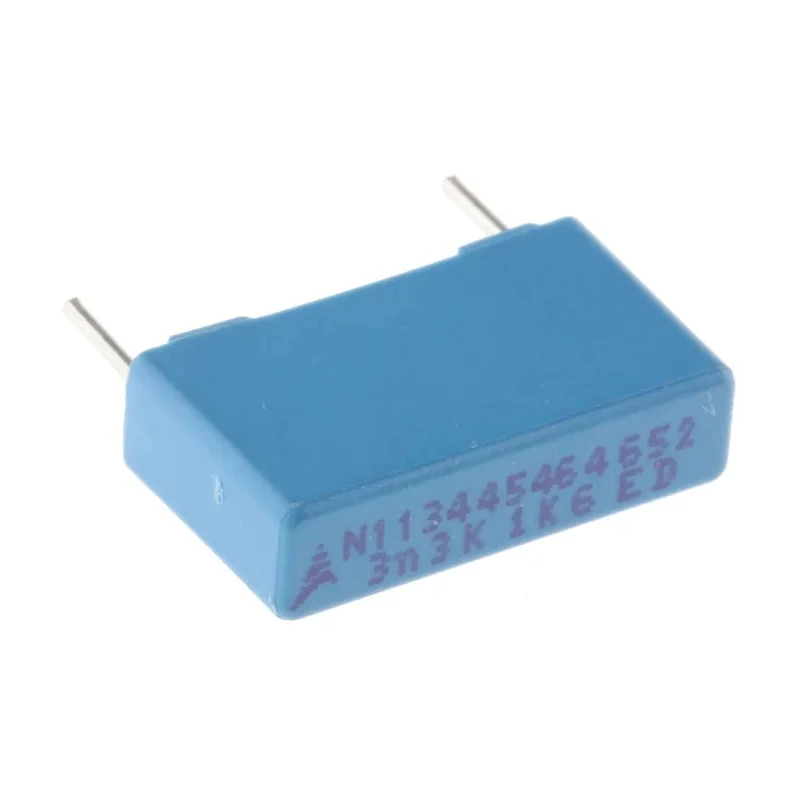

TDK Film Capacitor 3.3nF 500V AC 1.6kV DC Through Hole 2 Pins B32652A1332K000



Category Film Capacitor Brand TDK Condition New

Specifications

Country of Origin	India
Brand	TDK
Height	10.5mm
Length	18mm
Model	B32652A1332K000
Width	5mm
Mount Type	Through Hole
Series	B32654
Maximum Operating Temperature	100°C
Capacitance	3.3nF
Standards/Approvals	UL, RoHS
Pin Count	2
Rated AC Voltage	500V ac
Rated DC Voltage	1.6kV dc
Lead Pitch	15mm
Lead Diameter	0.8mm
Automotive Standard	AEC-Q200 Rev D

Key Features

Features a 3.3 nanofarad capacitance suitable for precise electronic applications.
Rated for 500 volts AC and 1.6 kilovolts DC operating voltage.
Constructed with wound capacitor technology and internal series connection.
Encased in a flame retardant plastic case with epoxy resin sealing for durability.
Complies with automotive standard AEC-Q200 Rev D and industry UL, RoHS standards.
Has a lead pitch of 15 mm with 2 pins facilitating through-hole mounting.
Designed for a maximum operating temperature of 100°C ensuring performance under thermal stress.
Typical applications include TV S-correction, TV flyback, and electronic ballast circuits.

Product Description

The TDK B32652A1332K000 film capacitor is a high-quality passive electronic component optimized for applications requiring small size, high reliability, and robust performance. This through hole capacitor offers a capacitance of 3.3 nanofarads with a rated AC voltage of 500 volts and a DC voltage rating of 1.6 kilovolts. Built using wound capacitor technology with an internal series connection, it ensures stable performance with a high pulse strength capability.

Encapsulated within a flame retardant plastic case compliant with UL 94 V-0 standards and sealed with epoxy resin, this capacitor resists environmental and mechanical stresses effectively. It meets the automotive industry standard AEC-Q200 Rev D, making it suitable for automotive-related electronics as well as other rigorous industrial uses.

The physical form factor includes a lead pitch of 15 mm and two pins with a lead diameter of 0.8 mm for secure through-hole mounting on printed circuit boards. Its compact measurements of 18 mm length, 10.5 mm height, and 5 mm width allow integration in designs with strict space constraints.

Typical uses cover TV S-correction circuitry, TV flyback transformers, and various electronic ballast circuits employed in lighting systems. This capacitor is designed to operate reliably up to 100°C, ensuring long-term durability and stable electrical characteristics in manufacturing, laboratory, industrial electronics, and commercial electronic devices.

3.3 nanofarad capacitance for precise filtering and timing control. Rated for high voltage: 500 V AC and 1.6 kV DC for demanding applications. Wound capacitor technology enhances pulse handling and longevity. Plastic UL 94 V-0 flame retardant case with epoxy resin sealing for safety.

Conforms to automotive AEC-Q200 Rev D and international UL, RoHS standards. Compact 15 mm lead pitch and 0.8 mm lead diameter convenient for through hole PCB mounting. Maximum operating temperature rated at 100°C supports harsh environments.

Dimensions 18x10.5x5 mm support space-constrained designs. Widely used in TV S-correction, flyback transformers, and electronic ballasts. Explore the full range of TDK Film Capacitors at EnvMart for reliable electronic component solutions.
