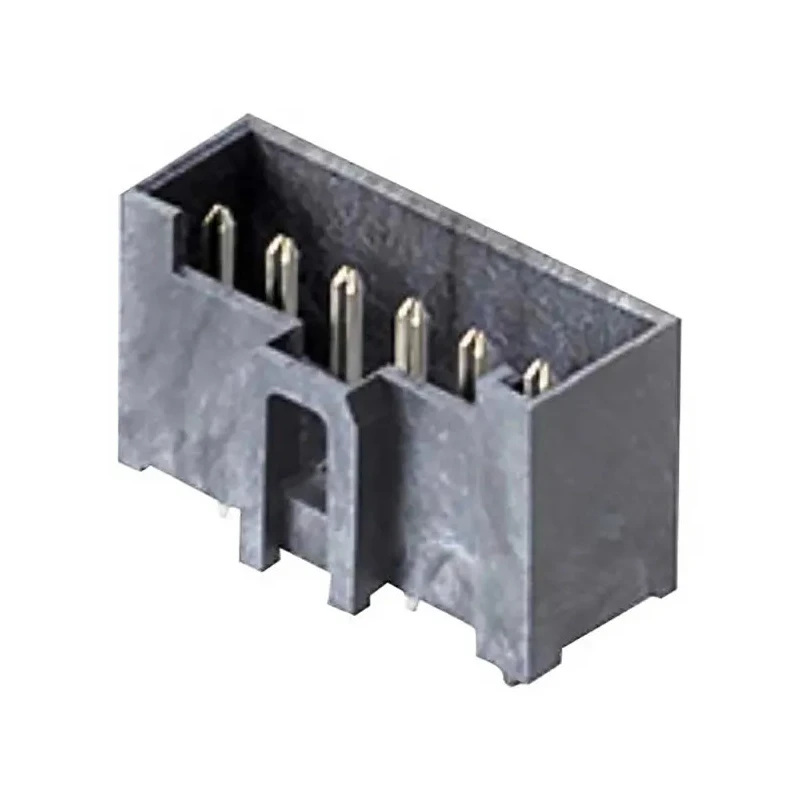

Molex KK Plus 396 Series Shrouded Straight Through Hole PCB Header 6 Contacts 3.96 mm Pitch 207479-0006
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 350V |
| Brand | Molex |
| Orientation | Straight |
| Current | 11A |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Brass |
| Series | KK Plus 396 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 3.96mm |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.5mm |
Key Features
- Rated for continuous current up to 11A ensuring reliable power transmission.
- Constructed with durable liquid crystal polymer housing for high-temperature resistance.
- Brass contact material plated with tin offers stable conductivity and corrosion resistance.
- Designed as a fully shrouded, male gender connector providing secure mating and protection.
- Supports solder termination type and through hole mount configuration for PCB integration.
- Operates reliably in a temperature range from -40°C to 105°C.
- Compact single row design with 3.96 mm row pitch optimizes PCB space utilization.
Product Description
Molex 207479-0006 KK Plus 396 Series Shrouded Straight Through Hole PCB Header is a high-quality connector designed for electronic and industrial applications requiring robust and reliable wire-to-board connections.
This connector features 6 male contacts arranged in a single row with a precise 3.96 mm pitch, optimized for efficient PCB layout and mechanical stability. The housing is made from liquid crystal polymer, offering excellent thermal resistance and durability suitable for operation between -40°C and 105°C.
The brass contacts are plated with tin to ensure excellent electrical conductivity and corrosion resistance, supporting a continuous current rating of 11A and maximum voltage of 350V, making it ideal for demanding power and signal transmission tasks.
The connector system is wire-to-board with through hole mount type, allowing easy solder termination and secure mechanical attachment. Its fully shrouded design protects contacts from environmental hazards and prevents accidental disconnections during service.
Typical usage includes industrial control systems, consumer electronics, telecommunications equipment, and power supply assemblies where dependable and compact PCB connectors are required.
Rated for continuous current of 11A. Liquid crystal polymer housing material. Brass male contacts with tin plating. Single row, 6 contacts, 3.96 mm pitch. Operating temperature range from -40°C to 105°C. Through hole mount with solder termination.
Fully shrouded for added protection and contact security.
The product is manufactured in India and complies with the RoHS directive ensuring environmentally safe materials. This PCB Header is compatible with a wide range of electronic manufacturing and design requirements.
Explore more Molex connectors and related electronic components in the EnvMart catalog for comprehensive solutions to your PCB assembly and wiring needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for a continuous current of 11A, ensuring reliable power transmission.
The operating temperature range is from -40°C to 105°C, suitable for various environments.
The pitch of the contacts is 3.96 mm, designed for efficient PCB layout.
This model features 6 male contacts arranged in a single row.
The housing is made from liquid crystal polymer, while the contacts are brass plated with tin for stable conductivity and corrosion resistance.
It supports solder termination type, allowing for secure connections on the PCB.
Yes, it complies with the RoHS directive, ensuring environmentally safe materials.
This connector uses a through hole mount configuration for PCB integration.
The maximum voltage rating is 350V, making it suitable for demanding power applications.
The orientation of this model is straight, facilitating easy installation.
The tail pin length is 3.5 mm, designed for effective soldering to the PCB.
It is manufactured in India, ensuring quality production standards.
