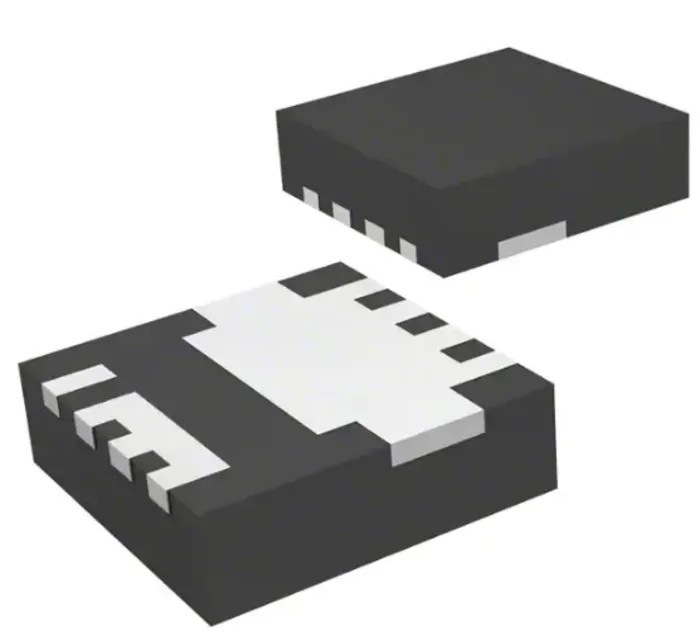

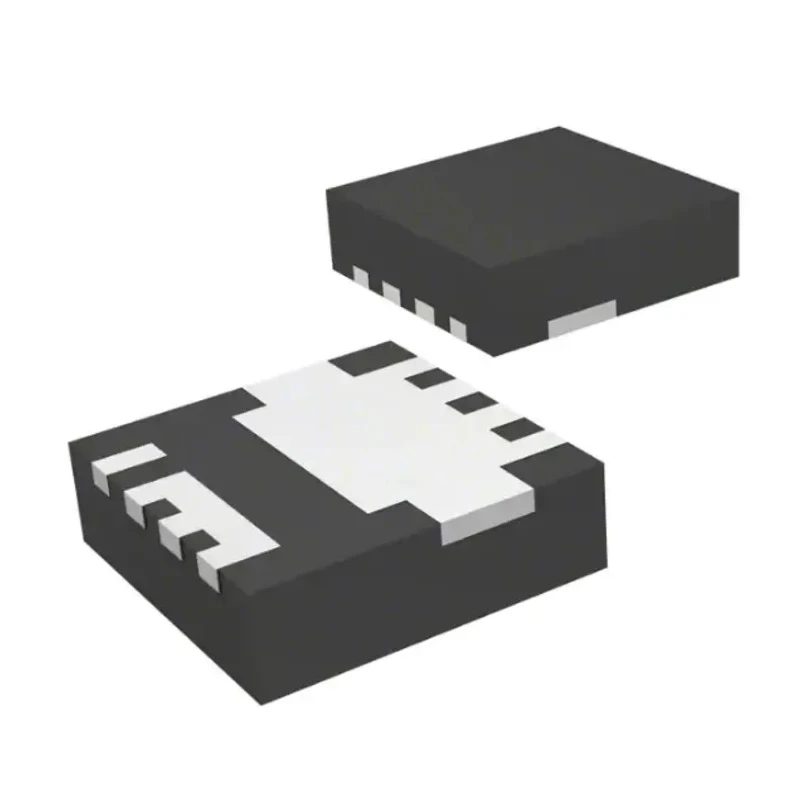

STMicroelectronics 100 V 8 A Single High Voltage Schottky Diode Surface Mount PowerFLAT 5-Pin STPS8H100DEE-TR
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.05mm |
| Length | 3.4mm |
| Model | STPS8H100DEE-TR |
| Width | 3.4mm |
| Mount Type | Surface |
| Series | STPS8H100DEE |
| Maximum Operating Temperature | 175°C |
| Package Type | PowerFLAT |
| Minimum Operating Temperature | -65°C |
| Pin Count | 5 |
| Maximum Continuous Forward Current If | 8A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | High Voltage |
| Peak Reverse Current Ir | 6mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 100A |
| Maximum Forward Voltage Vf | 900mV |
| STMicroelectronics 100V 8A, Schottky Diode, 8-Pin PowerFLAT STPS8H100DEE-TRBrand | STMicroelectronics |
Key Features
- Designed for high frequency DC to DC converters and switch mode power supplies.
- Packaged in a low-profile PowerFLAT 5-pin surface mount package suitable for compact designs.
- Features very low conduction losses with negligible switching losses for efficient operation.
- Offers extremely fast switching capabilities combined with low thermal resistance and high junction temperature tolerance.
- Operates reliably in harsh environments with an operating temperature range from -65°C to 175°C.
- Supports peak non-repetitive forward surge current up to 100 A.
- Widely used in inverters, bypass diode, free-wheeling, and polarity protection applications.
Product Description
The STMicroelectronics STPS8H100DEE-TR is a high voltage, single Schottky diode designed specifically for power electronic circuits requiring efficient rectification with minimal loss. It supports a maximum continuous forward current of 8 amperes and a peak reverse repetitive voltage rating of 100 volts, making it suitable for demanding DC to DC converters and switch mode power supply designs.
Its compact surface mount PowerFLAT 5-pin package allows integration into space-constrained electronic assemblies while maintaining excellent thermal performance due to low thermal resistance. The diode exhibits very low conduction and switching losses, enabling high efficiency in frequency-sensitive applications.
This device is capable of handling a peak non-repetitive forward surge current of up to 100 amperes, ensuring durability under transient conditions. Operating temperature ranges from -65 degrees Celsius up to 175 degrees Celsius, allowing operation in harsh industrial environments.
Typical applications include use in inverters, free-wheeling circuits, polarity protection modules, and bypass diode implementations where fast switching and voltage tolerance are critical.
This diode is designed for high frequency DC to DC converters and switch mode power supplies. Features very low conduction losses with negligible switching losses for efficient operation. Operates reliably in temperatures from -65°C to 175°C, suitable for industrial environments.
Packaged in a compact PowerFLAT 5-pin surface mount package for space saving designs. Supports peak surge currents up to 100 A for transient robustness. Essential for inverters, bypass diode, free-wheeling, and polarity protection uses.
STMicroelectronics products are known for their reliability and performance in semiconductor and power management applications. Find more options and technical support under the Schottky Diodes & Rectifiers category in EnvMart for all industrial and commercial electronics engineering needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 8 amperes.
This diode has a peak reverse repetitive voltage rating of 100 volts.
It operates reliably within a temperature range from -65°C to 175°C.
The diode is packaged in a PowerFLAT 5-pin surface mount package.
The maximum forward voltage is 900 millivolts.
It supports a peak non-repetitive forward surge current of up to 100 amperes.
Typical applications include use in inverters, free-wheeling circuits, polarity protection modules, and bypass diodes.
The diode has a height of 1.05 mm and a width of 3.4 mm.
The peak reverse current is rated at 6 milliamperes.
The minimum operating temperature is -65°C.
This model has a pin count of 5.
The diode is manufactured in India.
