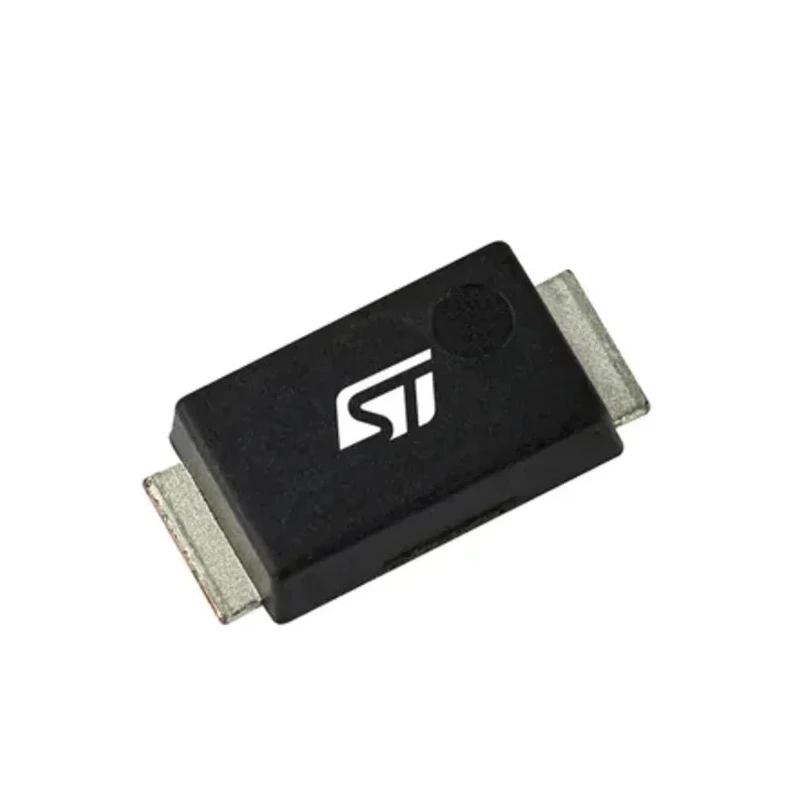

STMicroelectronics High Voltage 100 V 130 A Schottky Barrier Diode Surface Mount SOD-128 STPS5H100AF
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.03mm |
| Length | 3.9mm |
| Model | STPS5H100AF |
| Width | 2.5mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 175°C |
| Package Type | SOD-128 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 130A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | High Voltage |
| Peak Reverse Current Ir | 16mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 130A |
| Maximum Forward Voltage Vf | 760mV |
Key Features
- Maximum continuous forward current of 130 amperes.
- Peak reverse repetitive voltage is 100 volts.
- Low maximum forward voltage drop of 760 millivolts to minimize power loss.
- Designed for high frequency miniature switched mode power supplies.
- Features negligible switching losses and high junction temperature capability.
- Low leakage current with good trade-off between leakage and forward voltage.
- Compact dimensions with length 3.9 mm, width 2.5 mm, and height 1.03 mm.
- Peak non-repetitive forward surge current rating of 130 amperes.
Product Description
STMicroelectronics STPS5H100AF is a high voltage Schottky barrier rectifier diode optimized for surface mounting on PCBs using the compact SOD-128 package. It is specifically engineered for use in high-frequency miniature switched mode power supplies and board-level DC to DC converters. The diode exhibits negligible switching losses, which enhances efficiency in power conversion applications.
With a maximum continuous forward current rating of 130 amperes and a peak reverse repetitive voltage of 100 volts, this diode ensures robust performance under demanding electrical conditions. The maximum forward voltage of 760 millivolts helps reduce conduction losses, contributing to improved system efficiency.
This diode is designed to handle peak non-repetitive forward surge currents up to 130 amperes. It operates reliably over a wide temperature range from -65°C to 175°C, providing high junction temperature capability for industrial and commercial power electronics.
The compact physical dimensions of 3.9 mm length, 2.5 mm width, and 1.03 mm height make it suitable for dense PCB layouts in power supply design. The 2-pin single diode configuration simplifies integration into various rectifier and switching circuits.
Key attributes include low leakage current and an excellent trade-off between leakage and forward voltage drop, making it ideal for high frequency and high efficiency rectification tasks. It complies with general industrial standards but does not carry specific automotive or other specialized approvals.
Maximum continuous forward current of 130 amperes. Peak reverse repetitive voltage of 100 volts. Maximum forward voltage drop of 760 millivolts. Low leakage current ensuring efficient operation. Wide operating temperature range from -65°C to 175°C.
Peak non-repetitive forward surge current of 130 amperes. Compact SOD-128 surface mount package dimensions. Single diode, 2-pin configuration. Designed for high frequency switched mode power supplies and DC to DC converters.
High junction temperature capability and negligible switching losses.
This diode is well suited for industrial, commercial, and electronic power supply uses requiring efficient, compact, and high current rectification. EnvMart offers this product as a reliable component for semiconductor diode applications.
