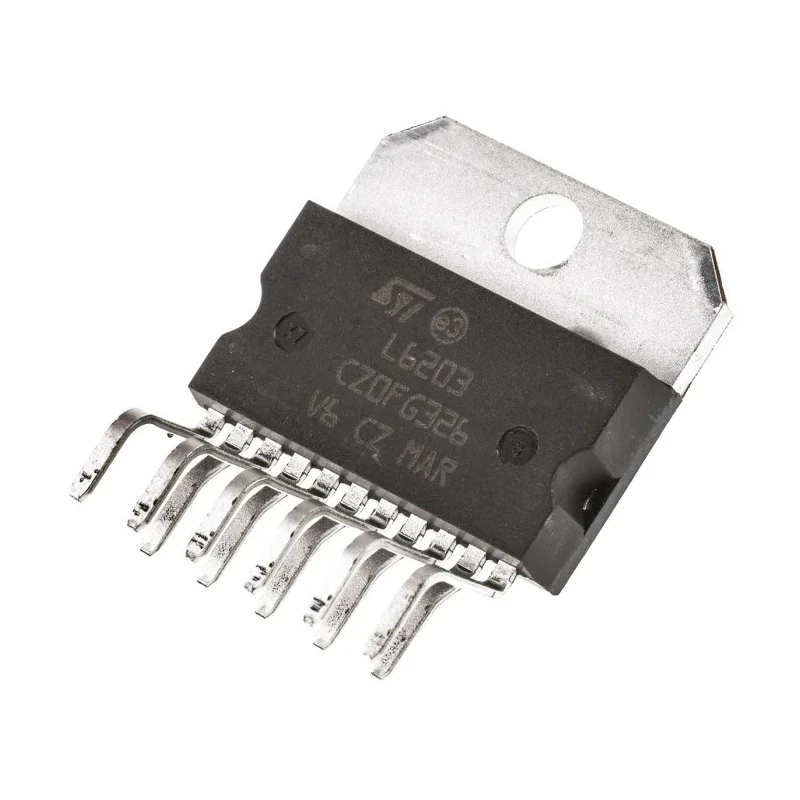

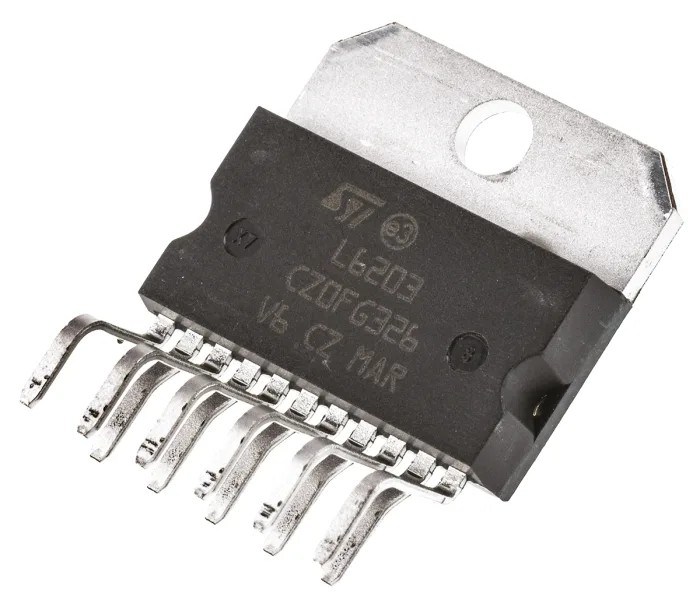

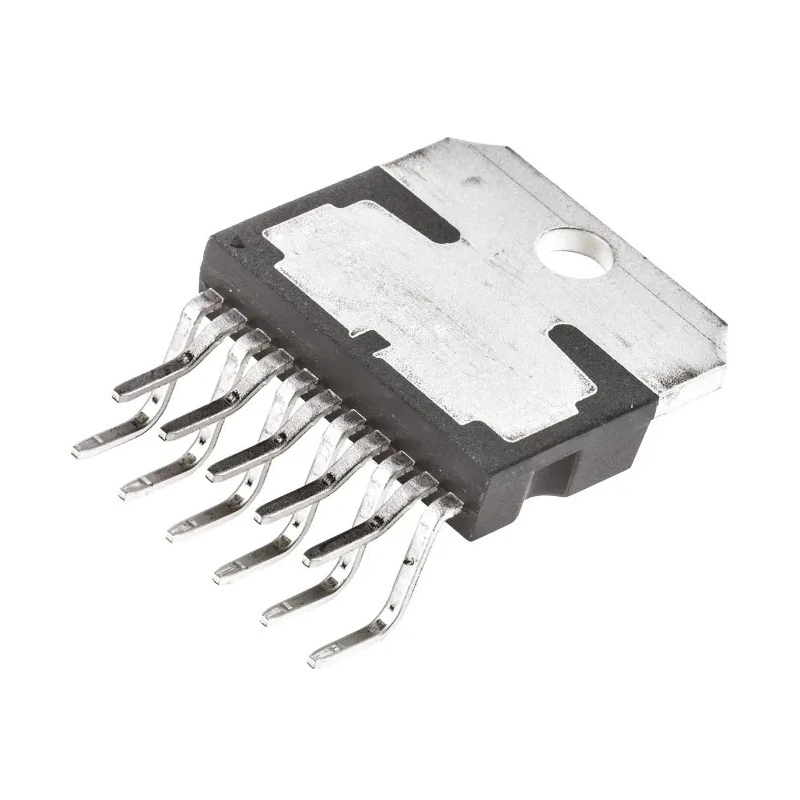

STMicroelectronics Brushed DC Motor Driver IC, Full Bridge, 48 V 4 A Multiwatt 11-Pin L6203

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics Brushed DC Motor Driver IC, Full Bridge, 48 V 4 A Multiwatt 11-Pin L6203

Name: STMicroelectronics Brushed DC Motor Driver IC, Full Bridge, 48 V 4 A Multiwatt 11-Pin L6203
Brand: STMicroelectronics
SKU: 158612
Price: 12.64 USD
Availability: InStock



Category Motor Driver IC Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	10.7mm
Length	19.6mm
Model	L6203
Width	5mm
Motor Type	Brushed DC Motor
Mount Type	Through Hole
Series	L6203
Configuration	Full Bridge
Output Current	4A
Maximum Operating Temperature	150°C
Package Type	Multiwatt
Minimum Operating Temperature	-40°C
Pin Count	11
Maximum Collector Emitter Voltage Vceo	48V
Maximum Supply Voltage	48V
Minimum Supply Voltage	12V
Supply Current	30μA
Maximum IGBT Collector Current	4A
Typical Switching Frequency	30kHz
Inverter Power Rating	20W
DC motor controller,L6203 0-48V,BPBrand	STMicroelectronics

Key Features

Operates as a full bridge motor driver for brushed DC motors.
Supports maximum collector emitter voltage up to 48 V and 4 A output current.
Typical switching frequency is 30 kHz for efficient motor control.
Features through-hole mount type with Multiwatt 11-pin packaging.
Wide operating temperature range from -40°C to 150°C for industrial applications.
Low supply current consumption of 30 μA at minimum supply voltage of 12 V.
Robust inverter power rating of 20 W for reliable motor drive functions.
Compatible with microcontroller, DSP, and FPGA control systems.

Product Description

STMicroelectronics L6203 is a high-performance Brushed DC Motor Driver IC designed to control motors and complex loads effectively. This device features a full bridge configuration and can handle a maximum voltage of 48 V and collector current of 4 A, making it suitable for diverse industrial and embedded motor control applications.

The L6203 is housed in a Multiwatt 11-pin through-hole package providing easy integration into PCB designs and robust mechanical stability. Its typical switching frequency of 30 kHz ensures efficient motor operation with minimal noise and power loss.

Operating across a wide temperature range from -40°C to 150°C, the L6203 is ideal for rigorous industrial environments including HVAC systems, manufacturing equipment, robotics, and automotive electronics.

With a low supply current of 30 μA at minimum 12 V supply, it offers energy-efficient performance while delivering an inverter power rating of 20 W to drive motors smoothly under various load conditions.

The IC can be controlled using microcontrollers, DSPs, or FPGAs, enabling precise motor speed and torque management in automated machinery and robotic systems. Operates with brushed DC motors using a full bridge configuration.

Supports through-hole mounting for ease of manufacturing assembly. Robust electrical ratings and thermal range support industrial usage. Energy-efficient with low supply current consumption. Compatible with leading motor control microarchitectures.

It is essential for motor control hardware setups in sectors such as industrial automation, robotics, HVAC, and automotive electronics. Explore more Motor Driver ICs and motor control solutions on EnvMart to meet your industrial automation requirements with confidence.
