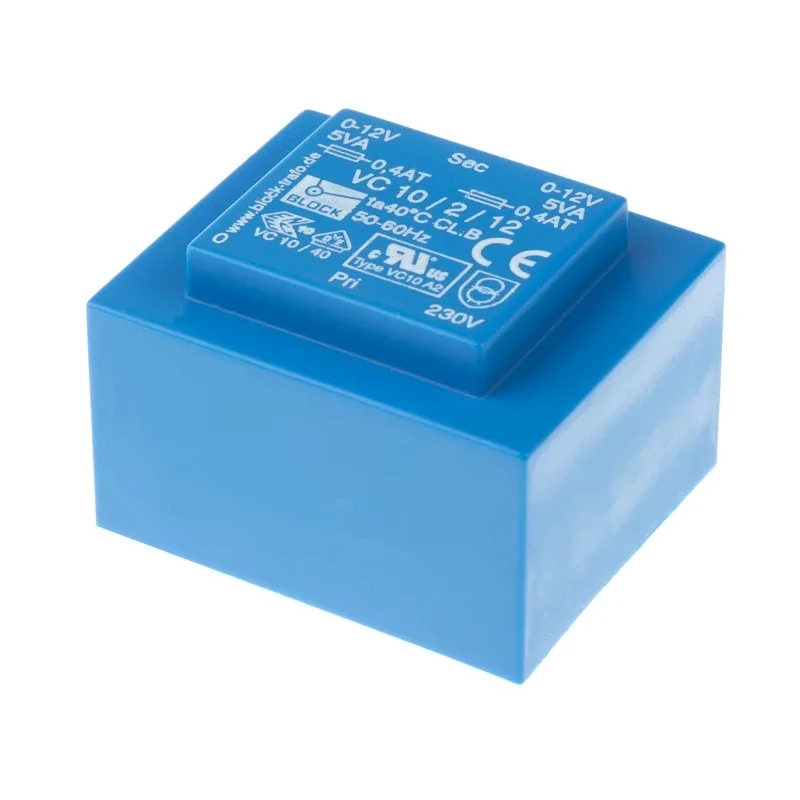

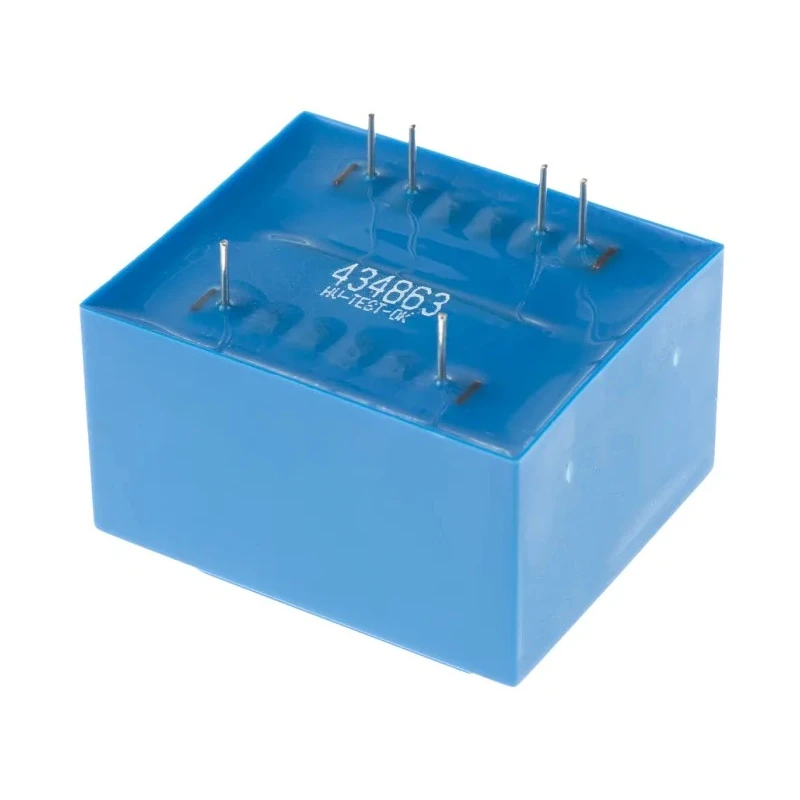

Block PCB Transformer 2 x 12 V AC 2 Output Pin 10 VA 230 V AC Primary VC 10/2/12

Block VC 10/2/12 PCB Transformer is a high-quality electronic component designed for reliable power conversion in various industrial and commercial applications. It features a primary voltage of 230 V AC and provides dual secondary voltage outputs of 2 x 12 V AC, rated at 10 VA. The pin mount design allows secure attachment onto printed circuit boards, making it suitable for compact electronic assemblies.

This transformer operates with an efficiency of 74% and supports a frequency range of 50 Hz to 60 Hz, making it compatible with standard AC power supplies. Its vacuum resin moulding achieves a UL94-V0 flammability rating, ensuring safety and durability in use.

The device complies with multiple internationally recognized standards including EN 61558-2-6, ENEC (VDE), DIN EN 61558-2-6, CSA 22.2 No.66, and UL 5085-1/-2 among others, reflecting its high quality and safety for electronic assembly use.

Physically, the transformer measures 51 mm in length, 34.6 mm in width, and 43 mm in depth. It weighs 280 grams, making it lightweight yet robust for its size. Additional fixing points provide extra stability for secure board mounting, suitable for environments where vibration or movement might occur.

Its design ensures low inter-winding capacitance and produces minimal radiated noise, enhancing performance in sensitive electronic circuits. The transformer is 100% electrically and flash tested, ensuring consistent performance and safety.

Offers dual 12 volt secondary outputs for flexibility in circuit design. Pin mount configuration for easy and secure PCB installation. Certified to multiple global EN and UL standards to guarantee safety. Vacuum resin moulded body ensures high flammability resistance and durability.

Compact size suitable for a wide range of electronic applications including industrial control and instrumentation. High efficiency reduces power losses, contributing to energy savings. Low radiated noise supports use in acoustically sensitive environments.

Extra fixing points enhance stability and mechanical reliability in operation. Ideal for use in industrial, electronic manufacturing, laboratory, and commercial applications. Manufactured in Germany ensuring European quality standards.

Choose this Block VC 10/2/12 PCB Transformer for industrial-grade, safe, and efficient power conversion for PCB mounted electronic devices. Explore the Electronics & Electricals category on EnvMart for related transformers and power supply components.
