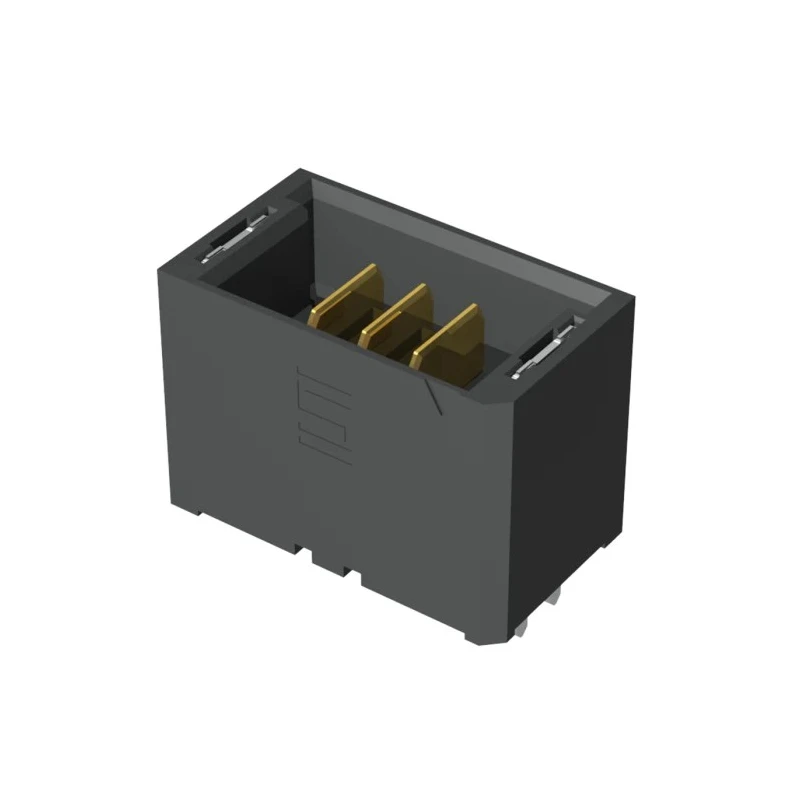

Samtec UMPT Series Straight Through Hole PCB Header, 3 Contacts, 2 mm Pitch, 1 Row, Shrouded UMPT-03-06.5-G-VT-SM-WT-K

Free Delivery in India | Lowest Global Shipping Charges

Samtec UMPT Series Straight Through Hole PCB Header, 3 Contacts, 2 mm Pitch, 1 Row, Shrouded UMPT-03-06.5-G-VT-SM-WT-K

Name: Samtec UMPT Series Straight Through Hole PCB Header, 3 Contacts, 2 mm Pitch, 1 Row, Shrouded UMPT-03-06.5-G-VT-SM-WT-K
Brand: Samtec
SKU: 157737
Price: 5.49 USD
Availability: InStock



Category PCB Header Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	650V
Brand	Samtec
Orientation	Straight
Current	16.8A
Model	UMPT-03-06.5-G-VT-SM-WT-K
Mount Type	Through Hole
Housing Material	Liquid Crystal Polymer
Contact Material	Copper Alloy
Series	UMPT
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Number of Rows	1
Pitch	2mm
Contact Plating	Gold
Number of Contacts	3
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board

Key Features

Supports a maximum current of 16.8 A per contact for high-power applications.
Constructed with a Liquid Crystal Polymer housing for durability and heat resistance.
Features gold-plated copper alloy contacts ensuring reliable conductivity.
Operates safely between -55°C and 105°C temperature range.
Offers straight orientation suitable for board-to-board connector systems.
Designed for solder termination to enhance mounting stability.
Shrouded design provides added contact protection and alignment.
Rated for 650 V voltage ensuring high insulation and performance.

Product Description

Samtec UMPT-03-06.5-G-VT-SM-WT-K is a high-quality PCB Header featuring 3 male contacts arranged in a single row with a 2 mm pitch. Designed for through hole mounting, this shrouded connector ensures dependable board-to-board electrical connections in electronic assemblies.

Its Liquid Crystal Polymer housing offers superior mechanical strength and thermal stability, supporting operating temperatures from -55°C to 105°C. The gold-plated copper alloy contacts provide excellent corrosion resistance and maintain high conductivity essential for power and signal transmission.

Rated for a maximum current of 16.8 A and voltage up to 650 V, it suits various applications requiring robust power handling capabilities. The straight orientation facilitates easy integration into PCB layouts while the shrouded design protects contacts and aides in proper connector alignment during assembly.

This connector series supports stack heights from 5 mm to 16 mm and is compatible with Samtec’s high-speed connector systems including Edge Rate®, AcceleRate® HD, Q Strip®, Q2™, Q Rate®, LP Array™, SEARAY™, Razor Beam™ LP, Tiger Eye™, and Blade & Beam, expanding its application versatility across industrial, laboratory, manufacturing, and electronics sectors.

Supports high current up to 16.8 A per contact for demanding power applications. Robust Liquid Crystal Polymer housing for mechanical and thermal reliability. Gold-plated copper alloy contacts ensure low resistance and longevity.

Wide operating temperature range from -55°C to 105°C. Shrouded and straight orientation for secure connections and alignment. Through hole mount type for stable PCB integration. Compatible with multiple high-speed connector series from Samtec.

This PCB header is ideal for industrial electronics assembly, power distribution boards, telecommunications equipment, and embedded systems requiring durable and consistent electrical connections. Explore other PCB Header options in the same category at EnvMart for comprehensive project solutions.
