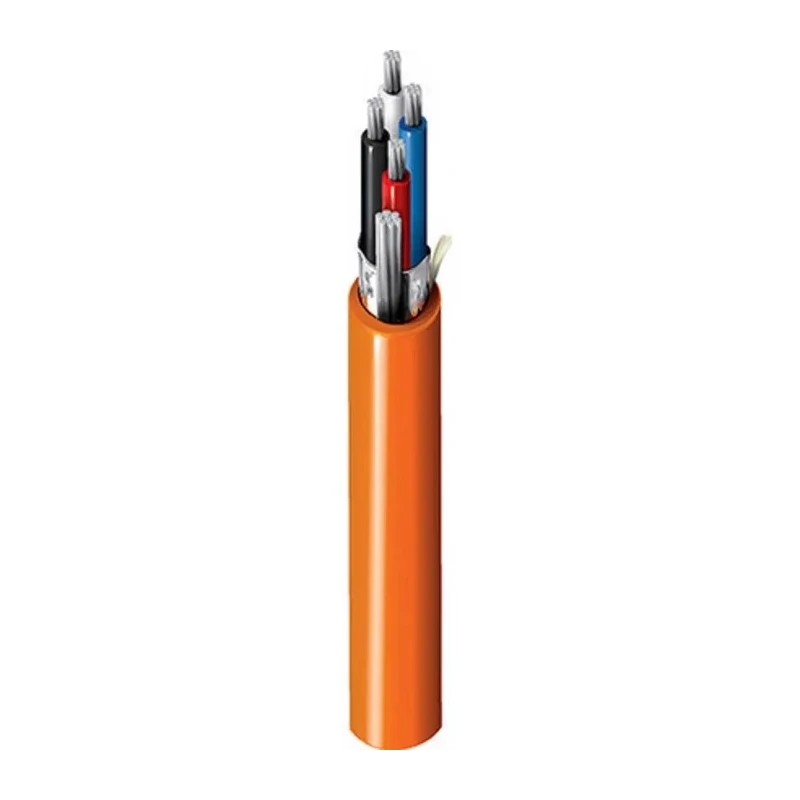

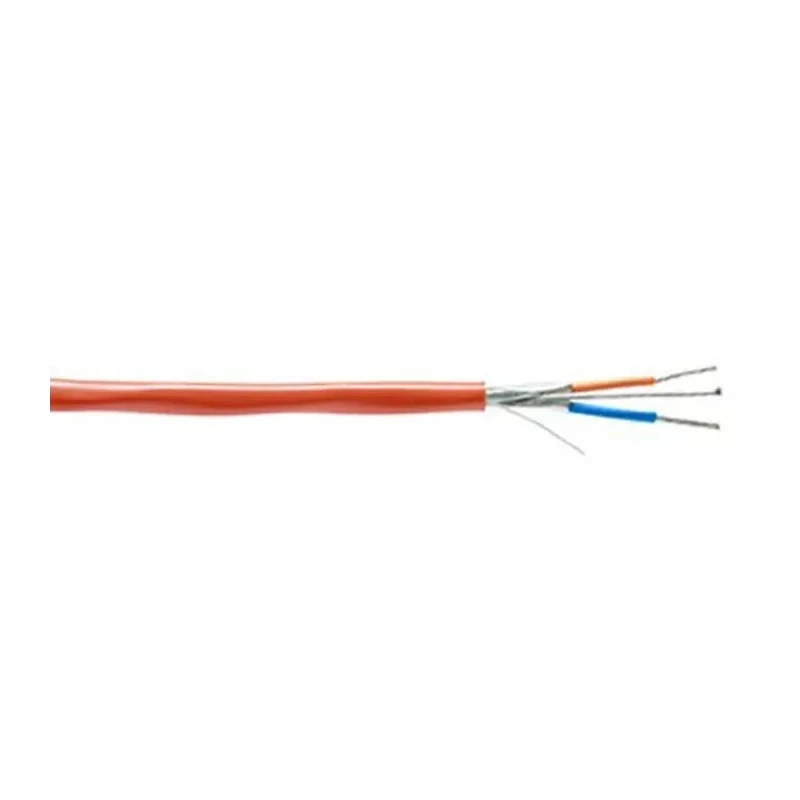

Belden 3077F Series Single-Pair Data Cable 1 Pair 2 Cores 0.36 mm² 152 m Orange Polyvinyl Chloride Sheath 300V 3077F 003500

Free Delivery in India | Lowest Global Shipping Charges

Belden 3077F Series Single-Pair Data Cable 1 Pair 2 Cores 0.36 mm² 152 m Orange Polyvinyl Chloride Sheath 300V 3077F 003500

Name: Belden 3077F Series Single-Pair Data Cable 1 Pair 2 Cores 0.36 mm² 152 m Orange Polyvinyl Chloride Sheath 300V 3077F 003500
Brand: BELDEN
SKU: 150555
Price: 615.14 USD
Availability: InStock



Category Data Cable Brand BELDEN Condition New

Specifications

Country of Origin	United States
Voltage	300V
Brand	Belden
CROSS SECTIONAL AREA	0.36mm²
Model	3077F 003500
Cable Length	152m
Series	3077F
Outside diameter	4.83mm
Maximum Operating Temperature	105°C
Number Of Cores	2
Conductor Material	Tin Copper Wire
Minimum Operating Temperature	-30°C
Jacket Material	Polyvinyl Chloride
Standards/Approvals	Euroclass Eca
Jacket Colour	Orange
Fire Behaviour	UL1685 UL Loading
Conductor Type	Stranded
Number of Strands	7
Core Strands	7 x 0.25mm
Size of Strands	0.25mm
Number of Pairs	1

Key Features

The cable features an orange polyvinyl chloride sheath suitable for harsh environments.
It supports an operating voltage of up to 300V, making it suitable for industrial data transmission.
The conductor is made of stranded tin copper wire with 7 strands of 0.25 mm size for flexibility and durability.
The cable complies with IEC 61158-2 (SP50) and Euroclass Eca standards, ensuring safety and performance.
It operates reliably in temperatures ranging from -30°C to 105°C, suitable for varied industrial conditions.
Designed for open bus systems such as Profibus PA, WorldFip, and Fieldbus Foundation applications.
The cable has a 4.83 mm outside diameter for easy installation and management.
Its fire behavior meets UL1685 UL loading standards, enhancing safety compliance in installations.

Product Description

Belden 3077F 003500 is a high-quality single-pair data cable featuring 1 pair and 2 cores with a conductor cross-sectional area of 0.36 mm². The cable measures 152 meters in length and is sheathed in an orange polyvinyl chloride (PVC) jacket, providing robust protection and durability for industrial applications.

This cable is suitable for industrial data communication within open bus systems including Profibus PA®, WorldFip®, and Fieldbus Foundation®. It is designed according to IEC 61158-2 (SP50) specifications, ensuring compatibility and reliable performance.

The stranded tin copper conductors consist of 7 strands of 0.25 mm diameter wire, providing good flexibility and mechanical strength. The cable operates safely at voltages up to 300V and withstands operating temperatures from -30°C up to 105°C, making it adaptable to harsh environmental conditions.

The orange PVC sheath not only provides high visibility but also meets the Euroclass Eca fire safety classification. Its outside diameter is 4.83 mm, facilitating easy routing and installation in electrical and automation systems.

This Data Cable complies with UL1685 UL loading fire behavior standards, enhancing safety in industrial and commercial installations. It is ideal for use in manufacturing plants, building automation, process control, and other industrial environments requiring dependable data transmission.

The cable supports various industrial protocols and open bus systems. It is engineered for reliable operation in demanding temperature ranges. Its durable PVC sheath offers mechanical and chemical protection. Compliance with international certifications ensures quality and safety.

Stranded tin copper conductors provide excellent conductivity and flexibility. Standard length and size accommodate diverse installation needs. Suitable for industrial, automation, and control system data applications. Explore the comprehensive range of Wires & Cables on EnvMart for industrial and electrical solutions.
