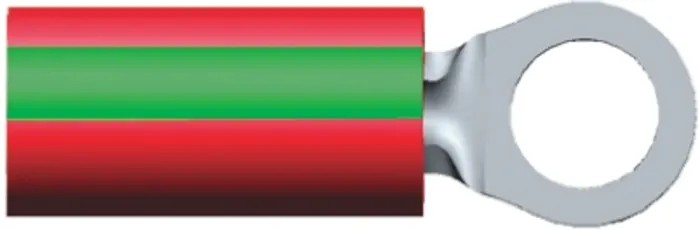

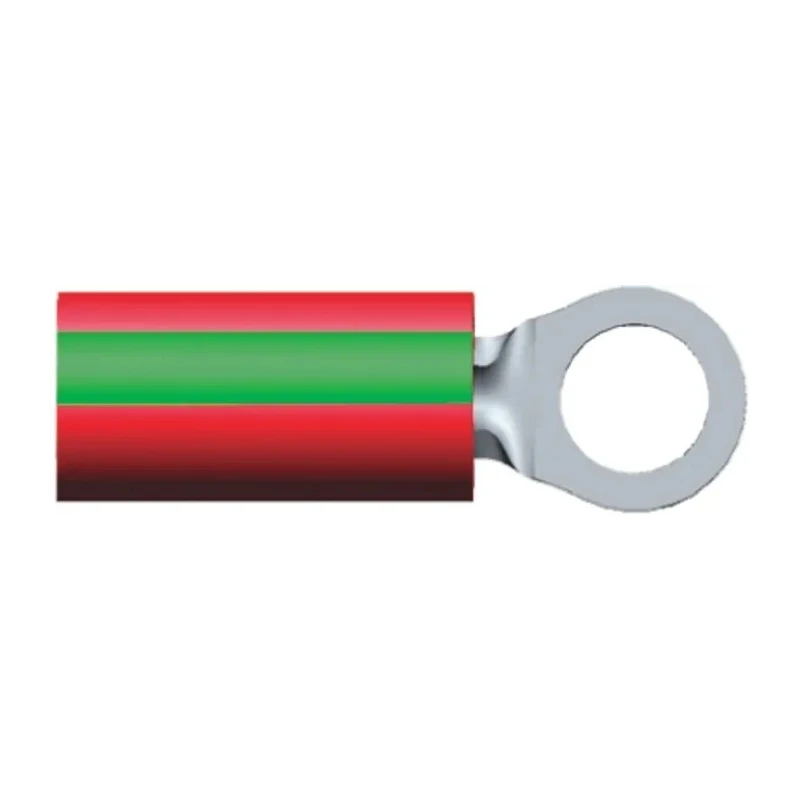

TE Connectivity PIDG Insulated Ring Terminal M3.5 Stud Size 22 AWG to 16 AWG Wire Size Green Red 2-36149-3
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Green, Red |
| THICKNESS | 0.79mm |
| Insulation | Insulated |
| Overall Length | 18.64mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.26mm² |
| Maximum Wire Size mm² | 1.65mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Outer Ring Diameter | 5.54mm |
| Inner Ring Diameter | 3.68mm |
| Stud Size | M3.5 |
Key Features
- High conductivity copper body ensures efficient electrical performance.
- Durable nylon insulation with color coding for easy wire size identification.
- Designed with serrations inside the wire barrel for maximum tensile strength after crimping.
- Funnelled wire entry allows fast and easy wire insertion during assembly.
- Suitable for a wide range of industrial and commercial electrical wiring applications.
- Meets RoHS standards for environmental compliance.
- Maximum operating temperature of 105°C for reliable performance in demanding conditions.
- Compatible with various wiring including control panels, power supplies, motors, and aerospace equipment.
Product Description
TE Connectivity 2-36149-3 PIDG Insulated Ring Terminal is a high-quality crimp terminal designed for secure and uniform electrical connections. It supports wire sizes ranging from 22 AWG to 16 AWG and fits an M3.5 stud size. The terminal features a precision-formed copper body with a copper sleeve inside the barrel to provide enhanced wire insulation support and prevent fraying. This design, combined with serrations in the wire barrel, ensures excellent contact and tensile strength after crimping.
The terminal is insulated with a durable nylon sleeve in green and red colors for easy identification of wire size and tooling. The funnelled entry design facilitates fast wire insertion, which is ideal for high-speed production environments.
These PIDG terminals are widely used in industrial, commercial, and manufacturing applications including instrumentation, control panels, lighting systems, power supplies, motors, transportation, lifting equipment, aerospace, and appliances.
The terminals meet RoHS requirements and have a maximum operating temperature of 105°C, ensuring safe operation under demanding conditions. Their robust construction makes them suitable for applications requiring reliable and durable electrical connections.
High conductivity copper body for optimal electrical performance. Copper sleeve inside barrel for improved wire insulation support and prevention of fraying. Serrated wire barrel provides excellent contact and tensile strength post-crimp.
Color-coded nylon insulation sleeve ensures quick wire size recognition and tooling identification. Funnelled entry enables fast and easy wire insertion during assembly processes. Compliant with RoHS environmental standards.
Operating temperature up to 105°C, suitable for various industrial environments. Versatile use across multiple industries including aerospace, automotive, and electrical manufacturing. Set contains 1 Pc PIDG Insulated Ring Terminal 2-36149-3.
Explore more power connectors and Ring Terminal solutions available at EnvMart for diverse industrial and electrical applications.
