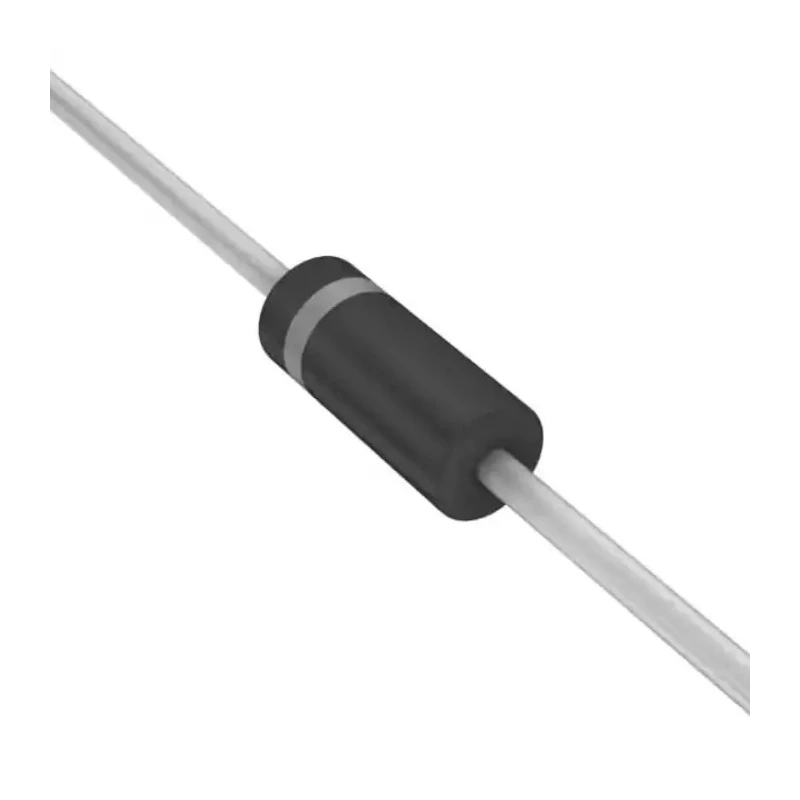

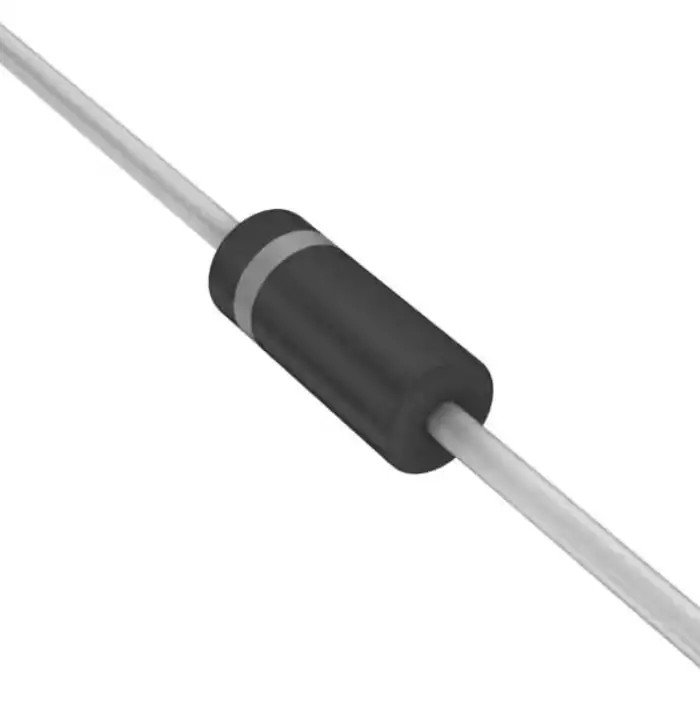

onsemi 56 V 5 W Through Hole Single Zener Diode Case 017AA 1N5370BG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 3.68mm |
| Length | 8.89mm |
| Model | 1N5370BG |
| Finish | All external surfaces are corrosion resistant and leads are readily solderable |
| Gross Weight | 0.7 gram (approx) |
| Mount Type | Through Hole |
| Series | 1N53 |
| Maximum Operating Temperature | 200°C |
| Case | Void-free, transfer-molded, thermo-setting plastic |
| Package Type | Case 017AA |
| Minimum Operating Temperature | -65°C |
| Polarity | Cathode indicated by color band. When operated in zener mode, cathode will be positive with respect to anode |
| Mounting Position | Any |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 5W |
| Diode Configuration | Single |
| Test Current It | 20mA |
| Maximum Reverse Leakage Current | 500nA |
| Nominal Zener Voltage Vz | 56V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 280Ω |
Key Features
- Nominal Zener voltage of 56 V with ±5% tolerance for consistent performance.
- Maximum power dissipation of 5 watts suitable for various electrical applications.
- Axial-lead, transfer-molded plastic Case 017AA provides protection in environmental conditions.
- Low maximum reverse leakage current of 500 nA ensures energy efficiency.
- Test current of 20 mA confirms reliable voltage regulation characteristics.
- Maximum zener impedance of 280 Ω maintains voltage stability under load.
- Wide operating temperature range from -65°C to 200°C accommodates harsh environments.
- Cathode polarity indicated by color band for correct installation.
Product Description
onsemi 1N5370BG is a high-quality 56 V 5 W Through Hole Single Zener Diode housed in a Case 017AA axial-lead plastic package. It provides precise voltage regulation and protection in diverse industrial, electrical, and electronic applications.
This diode features a nominal Zener voltage of 56 V with a tight tolerance of ±5%, ensuring accurate voltage control in circuits. It can dissipate up to 5 watts power continuously with surge rating capabilities, making it suited for robust power regulation tasks.
The package is a void-free, transfer-molded, thermo-setting plastic casing that offers excellent environmental protection and corrosion resistance. The leads are corrosion resistant and readily solderable for dependable and long-lasting circuit connections.
Electrical characteristics include a maximum reverse leakage current of 500 nA, maximum Zener impedance of 280 Ω, and a test current of 20 mA confirming its performance stability.
The diode operates reliably over a wide temperature range from -65°C to +200°C, suitable for demanding industrial and automotive conditions. The polarity is clearly marked by a color band on the cathode, with mounting position flexible to suit various PCB layouts.
Nominal Zener voltage of 56 V with ±5% tolerance for consistent performance. Maximum power dissipation of 5 W suitable for various electrical applications. Axial-lead, transfer-molded plastic Case 017AA provides excellent environmental protection.
Low maximum reverse leakage current of 500 nA ensures energy efficiency. Test current of 20 mA confirms reliable voltage regulation characteristics. Maximum Zener impedance of 280 Ω maintains voltage stability under load.
Wide operating temperature range from -65°C to 200°C accommodates harsh environments. Cathode polarity indicated by color band for correct installation. Lightweight approximately 0.7 g for easy mounting. Flexible mounting position allowing installation in any orientation.
This component is ideal for use in laboratory equipment, industrial electronics, power supply regulation, and automotive electrical systems requiring stable voltage regulation and protection.
Explore more quality semiconductor components and Zener Diodes in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this diode is 56 V with a tolerance of ±5%.
This model can dissipate a maximum power of 5 watts, making it suitable for various electrical applications.
The maximum reverse leakage current for this diode is 500 nA, which ensures energy efficiency.
It operates reliably over a wide temperature range from -65°C to +200°C, accommodating harsh environments.
The diode is housed in a Case 017AA, which is a void-free, transfer-molded, thermo-setting plastic package.
The cathode polarity is indicated by a color band, ensuring correct installation.
The maximum Zener impedance is 280 Ω, which helps maintain voltage stability under load.
The test current for this diode is 20 mA, confirming its reliable voltage regulation characteristics.
This model weighs approximately 0.7 grams, making it lightweight for easy mounting.
It supports through hole mounting and can be installed in any orientation due to its flexible mounting position.
This diode has a configuration of a single element per chip.
All external surfaces are corrosion resistant, and the leads are readily solderable for dependable circuit connections.
