Teledyne Through Hole RF Relay DPDT 6V DC Coil 450mW Coil Power 712-6

Free Delivery in India | Lowest Global Shipping Charges

Teledyne Through Hole RF Relay DPDT 6V DC Coil 450mW Coil Power 712-6

Name: Teledyne Through Hole RF Relay DPDT 6V DC Coil 450mW Coil Power 712-6
Brand: Teledyne
SKU: 157546
Price: 212.41 USD
Availability: InStock



Category HF & RF Relays Brand Teledyne Condition New

Specifications

Country of Origin	United States
Brand	Teledyne
Height	6.99mm
Length	9.4mm
Model	712-6
Mount Type	Through Hole
Contact Material	Gold Plated
Series	712
Maximum Operating Temperature	85°C
Contact Configuration	DPDT
Minimum Operating Temperature	-55°C
Terminal type	Through Hole
Contact Resistance	150mΩ
Standards/Approvals	RoHS
ANSI/ESD S20.20	2014
BS EN 61340-5-1	2007
Coil Resistance	98Ω
Coil Power	450mW
Contact Current	1A
Teledyne Through Hole RF Relay, 5V dc Coil, DPDTBrand	Teledyne

Key Features

Hermetically sealed for excellent resistance to environmental extremes.
Gold-plated contacts ensure low contact resistance of 150mΩ.
Operates reliably from -55°C to 85°C temperature range.
Coil resistance of 98Ω allows low power dissipation at 450mW.
Uniframe design offers high magnetic efficiency and mechanical rigidity.
Low profile height of 6.99mm supports compact PCB layouts.
Contact current rating of 1A suitable for RF switching applications.
Through hole mount with solder pin contact termination for robust installation.

Product Description

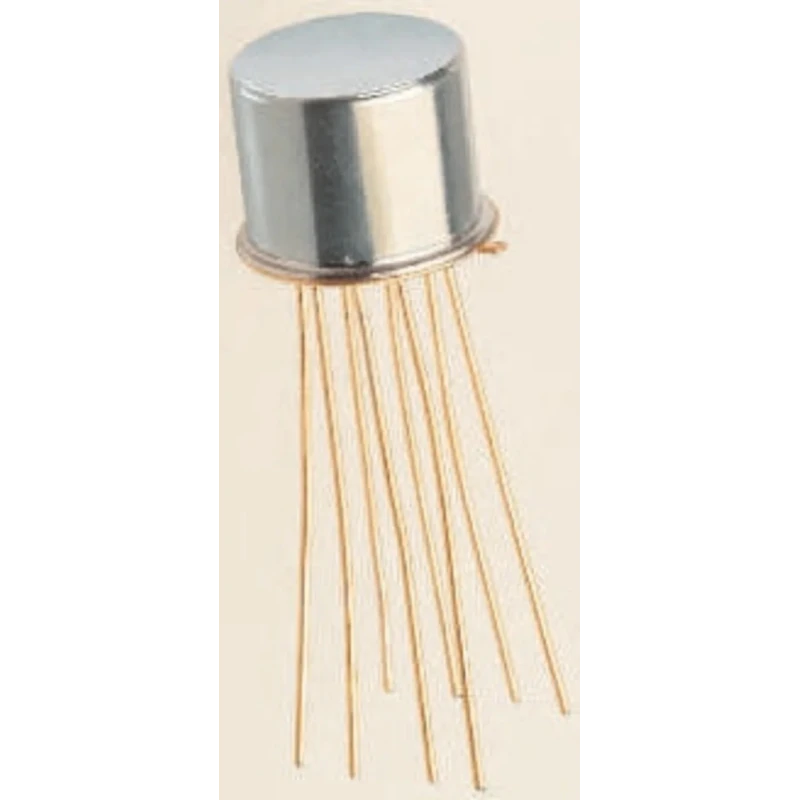

Teledyne 712-6 Through Hole RF Relay DPDT with a 6V DC coil power of 450mW is a PCB mount ultra-miniature relay designed to provide reliable performance in high-frequency RF circuits up to 1 GHz. This relay features a hermetically sealed construction that ensures excellent resistance to environmental extremes including shock and vibration, making it highly dependable in industrial and communication equipment.

The relay boasts gold-plated contacts with a low contact resistance of 150mΩ, supporting dry circuit switching up to 1A contact current. Its coil resistance is 98Ω, enabling efficient power consumption. The device operates in a temperature range from -55°C to 85°C, suitable for diverse operating conditions.

A compact low profile height of 6.99mm and through hole mounting with solder pin contacts allow for convenient PCB installation while maintaining mechanical rigidity and magnetic efficiency through the uniframe design. The relay is compliant with RoHS standards, underscoring its environmentally friendly manufacturing.

Applications for this relay include handheld radio transceivers, RF transmit/receive switching, and other communication and industrial systems requiring compact, high-performance RF relays with high reliability and low insertion loss.

Hermetically sealed design protects against environmental extremes. Gold-plated contacts provide high conductivity and corrosion resistance. Wide operating temperature range from -55°C to 85°C. Low coil power consumption at 450mW with 98Ω coil resistance.

Compact size with 9.4mm length and 6.99mm height. Suitable for RF applications up to 1 GHz frequency. Contact current rating of 1A ensures reliable switching. Through hole solder pin termination for secure PCB mounting. RoHS compliant for environmental safety.

Uniframe design improves mechanical strength and magnetic efficiency.
