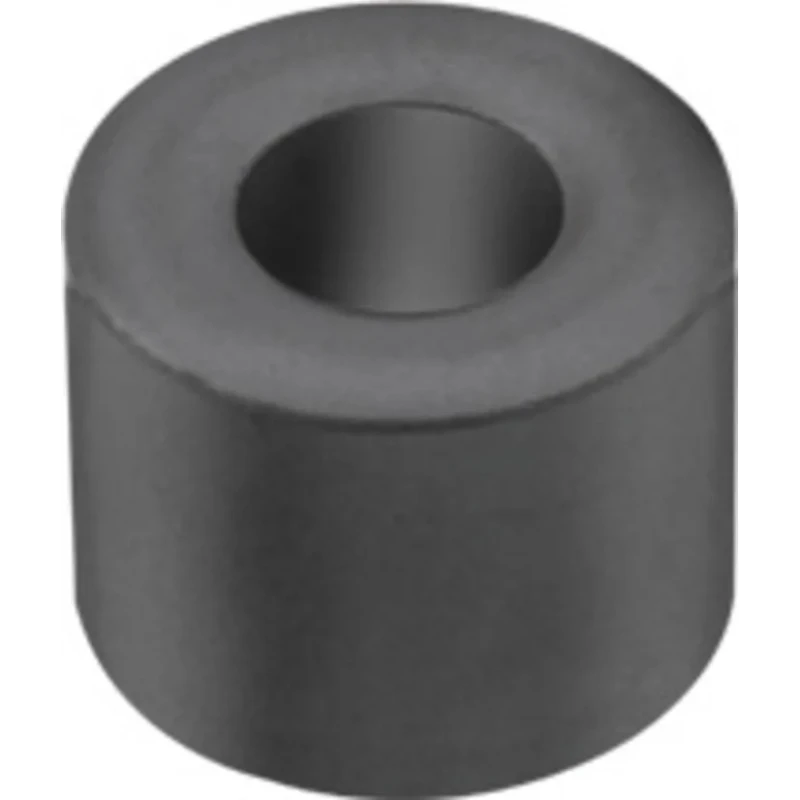

Wurth Elektronik EMI Mode Filter with Ferrite MgZn Core, AEC-Q200 Automotive Standard, 100MHz Test Frequency 782114155200
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Operating Temperature | -55°C up to 140 °C |
| Height | 20mm |
| Depth | 28mm |
| Series | WE-TEFA |
| Maximum Operating Temperature | 140°C |
| Minimum Operating Temperature | -55°C |
| Test Frequency | 100MHz |
| Core Material | Ferrite |
| Standards/Approvals | RoHS, REACH |
| Automotive Standard | AEC-Q200 |
| In General for | Wires, Coaxial cables, Wire-wrapping cables, Multiconductor wires |
Key Features
- Ferrite core made of MgZn material offers a wider frequency range than NiZn cores.
- Test frequency rating of 100MHz ensures effective interference suppression.
- Conforms to RoHS and REACH standards for environmental compliance.
- Operational temperature ranges from -55°C to 140°C suitable for harsh automotive environments.
- Compact dimensions with 20mm height and 28mm depth enable flexible installation.
- Designed for use with wires, coaxial cables, wire-wrapping cables, and multiconductor cables.
- Applicable in data and signal lines, on-board power supply lines, and multimedia cable interfaces.
Product Description
Wurth Elektronik 782114155200 EMI Mode Filter features a ferrite core made of MgZn material, which provides superior performance over traditional NiZn cores by operating across a wider frequency range. This mode filter is tailored for demanding automotive applications, meeting the AEC-Q200 automotive standard to ensure reliability under strict environmental conditions. It supports operating temperatures from -55°C to 140°C, making it well-suited for use in varied temperature environments.
Measuring 20mm in height and 28mm in depth, this compact device is ideal for integration into systems where space constraints exist. It conforms to globally recognized RoHS and REACH standards, ensuring compliance with environmental regulations.
The mode filter is primarily used for interference suppression in wires, coaxial cables, wire-wrapping cables, and multiconductor wires. It is effective in filtering noise from data and signal lines, on-board power supply lines, and multimedia cable interfaces to improve overall system performance and electromagnetic compatibility.
Ferrite core made of MgZn material ensures broad frequency operation. Complies with RoHS and REACH environmental standards. Automotive-grade, AEC-Q200 certified for reliability. Suitable operating temperature from -55°C up to 140°C.
Compact size with 20mm height and 28mm depth. Designed for multiple cable types including coaxial and multiconductor wires. Enhances signal integrity in power supply and multimedia lines.
Ideal for industrial, automotive, telecommunications, and electronic circuit applications requiring robust EMI filtering. Browse the Electronics Components category further on EnvMart to explore compatible EMI filters and related components.
Explore more products in our EMI Filters & Protection category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating temperature range is from -55°C to 140°C, making it suitable for harsh automotive environments.
It has a test frequency rating of 100MHz, ensuring effective interference suppression.
The ferrite core is made of MgZn material, which offers a wider frequency range compared to NiZn cores.
It conforms to RoHS and REACH standards for environmental compliance and meets the AEC-Q200 automotive standard.
The dimensions are 20mm in height and 28mm in depth, allowing for flexible installation in constrained spaces.
It is designed for use with wires, coaxial cables, wire-wrapping cables, and multiconductor wires.
It is applicable in data and signal lines, on-board power supply lines, and multimedia cable interfaces.
It filters noise from power supply and multimedia lines, improving overall system performance and electromagnetic compatibility.
This mode filter belongs to the WE-TEFA series.
The country of origin for this product is China.
The maximum operating temperature is 140°C, suitable for demanding applications.
It is designed for use in harsh automotive environments, complying with strict reliability standards.
