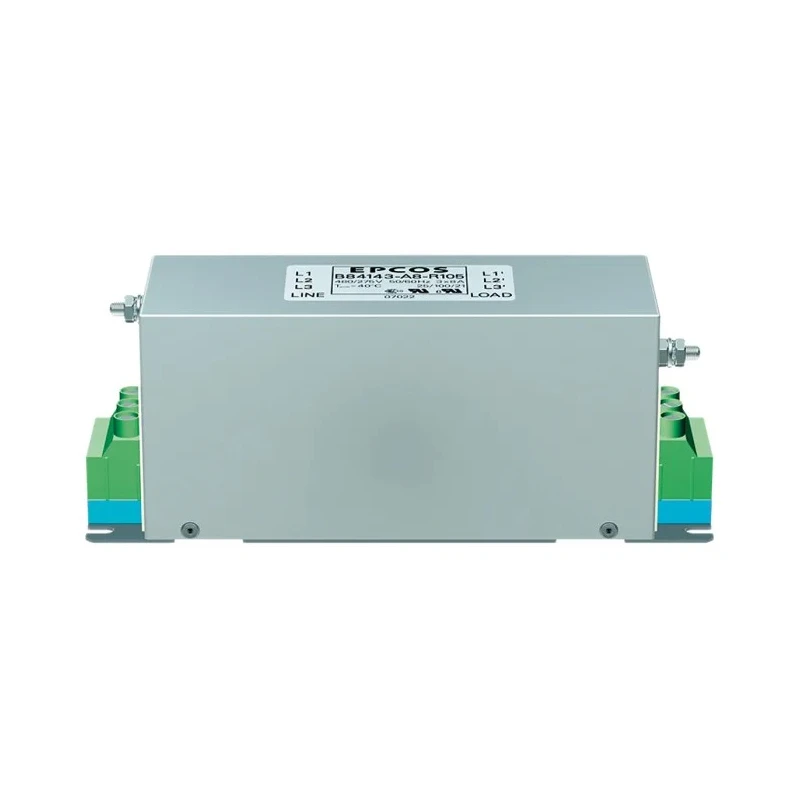

TDK 150 A 520V AC 50Hz 60Hz Flange EMC Filter Screw Termination 3 Phase B84143A0150R105

Free Delivery in India | Lowest Global Shipping Charges

TDK 150 A 520V AC 50Hz 60Hz Flange EMC Filter Screw Termination 3 Phase B84143A0150R105



Category EMI Filters & Protection Brand TDK Condition New

Specifications

Country of Origin	China
Brand	TDK
Height	150mm
Length	90mm
Model	B84143A0150R105
Depth	270mm
Mount Type	Flange
Operating Frequency	50, 60Hz
Series	B84143A*R105
Maximum Operating Temperature	100°C
Number Of Stages	1
Resistance	550Ω
Minimum Operating Temperature	-25°C
Maximum Current	150A
Number of Phases	3
Leakage Current	5mA
Maximum Voltage	520V ac
Standards/Approvals	UL 1283
Termination Style	Screw

Key Features

Provides very high insertion loss ensuring effective EMI filtering.
Optimized for very long motor cables carrying full load current.
Has low leakage current of 5mA to minimize power loss.
Compact design with small installation space requirements.
Suitable for various industrial applications including machine tools and conveyor belts.
Complies with UL 1283 and CSA 22.2 No. 8 safety standards.
Operates reliably in temperature range from -25°C to 100°C.
Constructed for durability with a resistance of 550Ω.

Product Description

TDK B84143A0150R105 is a high-performance 3 phase flange EMC filter rated for 150 A maximum current and 520V AC voltage, operating at frequencies of 50Hz and 60Hz. This screw termination EMC filter is specifically engineered to provide very high insertion loss, optimizing performance for very long motor cables under full load conditions.

Its low leakage current of 5mA reduces power loss, making it highly efficient for electrical drive units including machine tools, conveyor systems, filling machines, robots, pumps, ventilation systems, and power supply units. The compact flange mounting design enables installation in tight spaces with ease.

The filter meets stringent international standards, including UL 1283 and CSA 22.2 No. 8, ensuring compliance and safety in demanding industrial environments. It operates reliably within a wide temperature range from -25°C to 100°C, accommodating various operating conditions.

Key physical dimensions measure 90mm in length, 270mm in depth, and 150mm in height, allowing integration into electrical assemblies efficiently. With a resistance rating of 550Ω, the filter offers durable and stable electrical performance.

This product is manufactured in China, reflecting adherence to high manufacturing standards. It is ideal for use in industrial, manufacturing, HVAC, and electrical systems requiring effective EMI suppression.

Provides very high insertion loss ensuring effective EMI filtering. Optimized for very long motor cables carrying full load current. Has low leakage current of 5mA to minimize power loss. Compact design with small installation space requirements.

Suitable for various industrial applications including machine tools and conveyor belts. Complies with UL 1283 and CSA 22.2 No. 8 safety standards. Operates reliably in temperature range from -25°C to 100°C. Constructed for durability with a resistance of 550Ω.

Manufactured in China ensuring quality manufacturing processes. Explore more high-quality EMI filters and power line filters in the Electronics Components category on EnvMart.
