Wurth Elektronik 1.5 mH 1.5 A Common Mode Filter 0.12 Ω 80V 744290152

Free Delivery in India | Lowest Global Shipping Charges

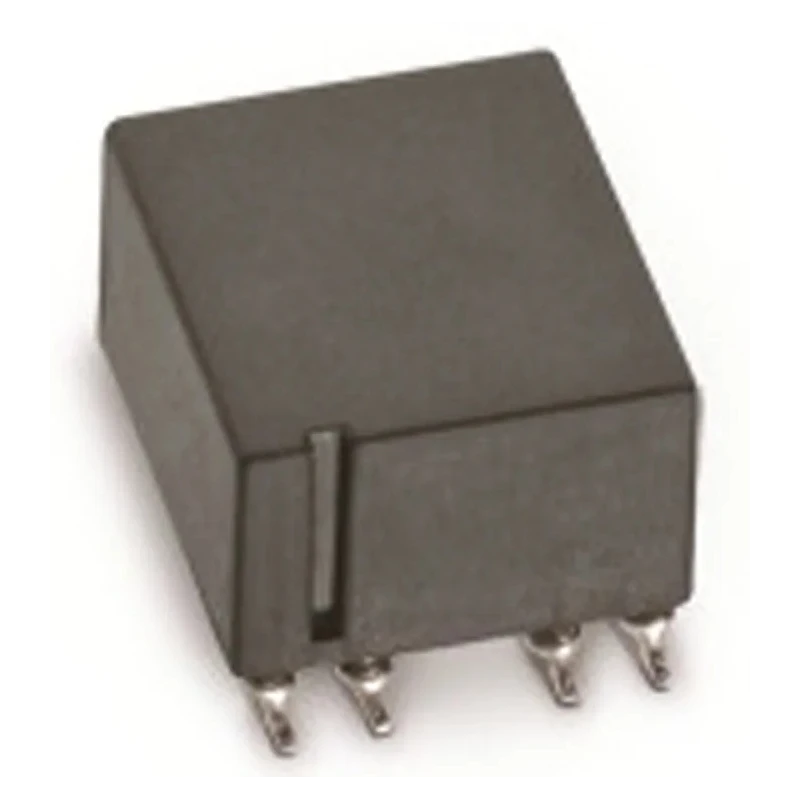

Wurth Elektronik 1.5 mH 1.5 A Common Mode Filter 0.12 Ω 80V 744290152

Name: Wurth Elektronik 1.5 mH 1.5 A Common Mode Filter 0.12 Ω 80V 744290152
Brand: Wurth Elektronik
SKU: 133179
Price: 4.76 USD
Availability: InStock



Category EMI Filters & Protection Brand Wurth Elektronik Condition New

Specifications

Country of Origin	China
Brand	Wurth Elektronik
Height	7.8mm
Length	14mm
Depth	12.5mm
Mount Type	Axial
Series	WE-UCF
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Test Frequency	50Hz
Core Material	Ferrite
Inductance	1.5mH
Number of Lines	2
Standards/Approvals	REACH, RoHS
Maximum DC Current	1.5A
Maximum DC Resistance	0.12Ω
Inductance Tolerance	-30 to 50 %
Termination Style	Solder Pad
Choke Voltage	80V

Key Features

Axial mount type suitable for SMT applications.
Ferrite core material ensures reliable noise suppression.
Operating temperature range from -40°C to 125°C.
Choke voltage rated at 80V with 0.12 Ω max DC resistance.
Compact dimensions of 14mm length, 7.8mm height, and 12.5mm depth.
Inductance tolerance varies from -30% to +50%.
Termination style with solder pad enhances mounting reliability.
Compliant with REACH and RoHS standards for environmental safety.

Product Description

Wurth Elektronik model 744290152 is a Common Mode Filter designed for EMI noise suppression in electronic circuits. Featuring a 1.5 mH inductance and a maximum DC current capacity of 1.5 A, this axial mount device employs a ferrite core for effective filtering of common mode interference signals.

The filter operates within a wide temperature range from -40°C to 125°C, making it suitable for industrial and commercial electronics applications, including power line filtering, data line noise suppression at low bitrates, and converter filtering such as buck and boost converters.

It has a choke voltage rating of 80 V and a maximum DC resistance of 0.12 Ω, ensuring low insertion loss while maintaining robust performance. The unit measures 14 mm in length, 7.8 mm in height, and 12.5 mm in depth, with solder pad termination for secure PCB mounting.

The inductance tolerance is between -30% to +50%, accommodating typical variations in manufacturing and circuit conditions. This product meets environmental standards REACH and RoHS, confirming its compliance with hazardous substances regulations.

Wurth Elektronik 744290152 Common Mode Filter is ideal for use in industrial electronics, telecommunications, automotive electronics (where automotive standards are not required), and general EMI mitigation in power and data lines.

Axial mount type suitable for SMT applications. Ferrite core material ensures reliable noise suppression. Operating temperature range from -40°C to 125°C. Choke voltage rated at 80V with 0.12 Ω max DC resistance. Compact dimensions of 14mm length, 7.8mm height, and 12.5mm depth.

Inductance tolerance varies from -30% to +50%. Termination style with solder pad enhances mounting reliability. Compliant with REACH and RoHS standards for environmental safety.
