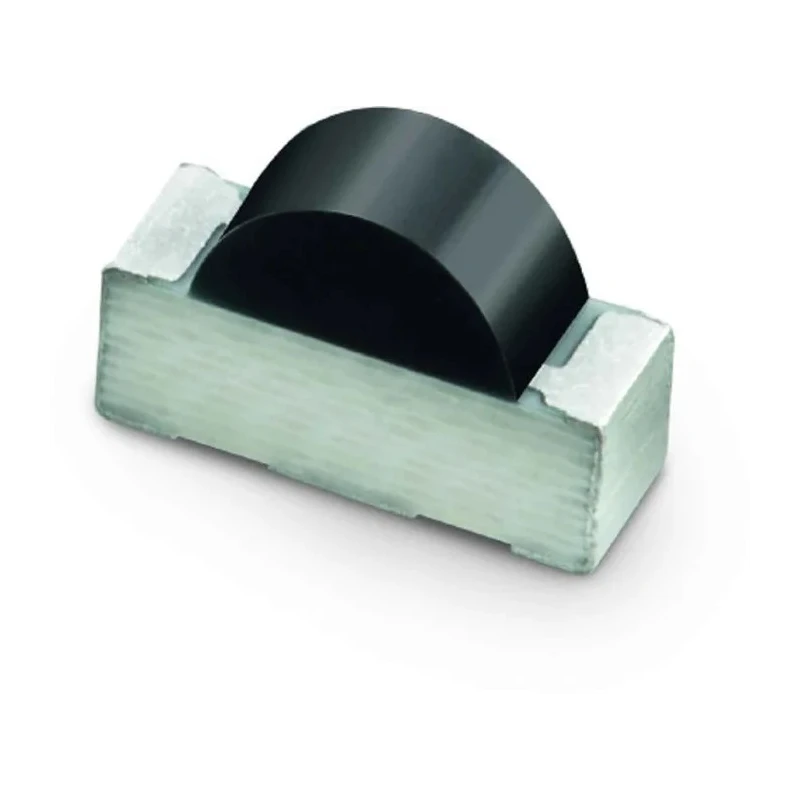

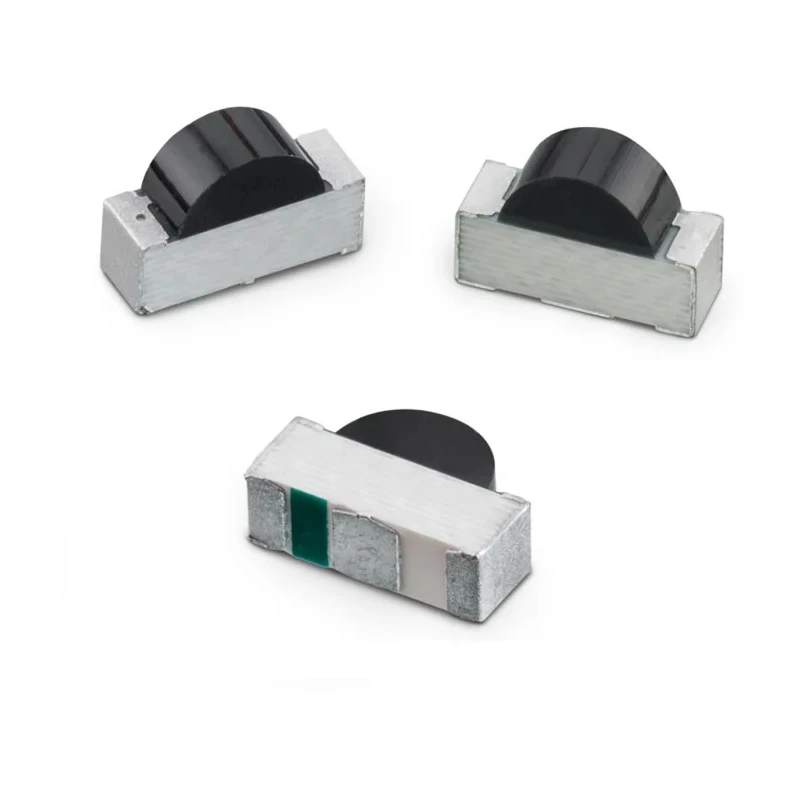

Wurth Elektronik Infrared Photodiode Surface Mount 150° Viewing Angle 2 Pin 1541141ECA570
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 2.02mm |
| Length | 3mm |
| Model | 1541141ECA570 |
| Packaging | Tape & Reel |
| Width | 1mm |
| Mount Type | Surface |
| Series | WL-SDSB |
| Maximum Operating Temperature | 85°C |
| Package Type | 1104 |
| Minimum Operating Temperature | -40°C |
| Polarity | Forward |
| Dark Current | 10nA |
| Standards/Approvals | RoHS |
| Number of Pins | 2 |
| Typical Fall Time | 0.6ns |
| Wavelength of Peak Sensitivity | 940nm |
| Spectrums Detected | Infrared |
| Breakdown Voltage | 30V |
| Minimum Wavelength Detected | 700nm |
| Maximum Wavelength Detected | 1100nm |
| Angle of Half Sensitivity | 150 ° |
Key Features
- The photodiode detects infrared spectrums with peak sensitivity at 940 nm.
- It features a small 1104 package with a tape and reel packaging for automated assembly.
- Operating temperature ranges from -40°C to 85°C ensuring reliable performance under varied conditions.
- The device has a fast response time with typical rise and fall times of 0.6 nanoseconds each.
- It includes 2 pins and a forward polarity for easy circuit integration.
- Dark current is low at 10 nA, minimizing noise in infrared sensing.
- The photodiode offers a wide detection range from 700 nm to 1100 nm wavelengths.
- Its breakdown voltage rating is 30 V, suitable for standard infrared sensor circuits.
Product Description
Wurth Elektronik 1541141ECA570 is an advanced infrared photodiode designed with a surface mount 1104 package, offering a wide 150° half-angle of sensitivity. This photodiode detects infrared wavelengths between 700 nm and 1100 nm, with peak sensitivity at 940 nm, making it ideal for various optical sensing and data transmission applications.
The device operates reliably between -40°C and 85°C ambient temperatures and features fast response times of approximately 0.6 ns for both rise and fall edges, supporting high-speed infrared data communication systems. With low dark current of 10 nA, it provides low noise performance crucial for precise infrared detection.
Its tape and reel packaging supports automated placement in surface mount technology (SMT) manufacturing. The device is RoHS compliant and manufactured in China, ensuring quality and environmental standards adherence.
Common industrial applications include infrared remote controls, light barriers, infrared touch panels, and infrared sensor systems across sectors such as industrial automation, consumer electronics, and telecommunications.
The photodiode detects infrared spectrums with peak sensitivity at 940 nm. It features a small 1104 surface mount package with 2 pins and tape and reel packaging. Operating temperature range is -40°C to 85°C for reliable durability.
Dark current of 10 nA ensures low noise and high signal clarity. Typical rise and fall time of 0.6 ns supports high-speed infrared communication. Breakdown voltage rated at 30 V suitable for standard electrical environments.
Wide viewing angle of 150° enhances detection coverage area.
This product is an ideal choice for engineering and manufacturing sectors requiring reliable infrared photodiodes for electronic designs and sensor integration. Explore more Wurth Elektronik Photodiodes and infrared components for your projects on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The photodiode has peak sensitivity at 940 nm, making it suitable for infrared applications.
It operates reliably within a temperature range of -40°C to 85°C.
This model has a height of 2.02 mm, a length of 3 mm, and a width of 1 mm.
The dark current is rated at 10 nA, which minimizes noise in infrared sensing applications.
The breakdown voltage is rated at 30 V, suitable for standard infrared sensor circuits.
It features typical rise and fall times of approximately 0.6 ns each, supporting high-speed data communication.
It is packaged in tape and reel format, which supports automated assembly processes.
The photodiode has a wide angle of half sensitivity of 150° for enhanced detection coverage.
This model includes 2 pins, allowing for easy circuit integration.
Yes, it is RoHS compliant, ensuring adherence to environmental standards.
It can detect infrared wavelengths ranging from 700 nm to 1100 nm.
This model is designed for surface mounting, specifically in a 1104 package type.
