| Country of Origin | China |
|---|---|
| Brand | onsemi |
| Height | 0.7mm |
| Length | 1.7mm |
| Model | MM5Z5V6T1G |
| Mount Type | Surface |
| Series | MM5ZxxxT1G |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-523 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 500mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 1μA |
| Nominal Zener Voltage Vz | 5.6V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 40Ω |
| Typical Voltage Temperature Coefficient | 2.5mV/K |
| Lead Finish | 100% Matte Sn (Tin) |
| Low Body Height | 0.028in (0.7mm) |
| Small Body Outline Dimensions | 0.047in x 0.032in (1.20mm x 0.80mm) |
| Standard Zener Breakdown Voltage Range | 2.4V to 75V |
| Qualified Maximum Reflow Temperature | 260C |
| Nexperia 1, 5.6 V Zener Diode, Single 300 mW 5 % Surface 2-Pin SOD-523Brand | Nexperia |
| onsemi 1, 5.6 V Zener Diode, Single 500 mW Surface 2-Pin SOD-523Brand | onsemi |

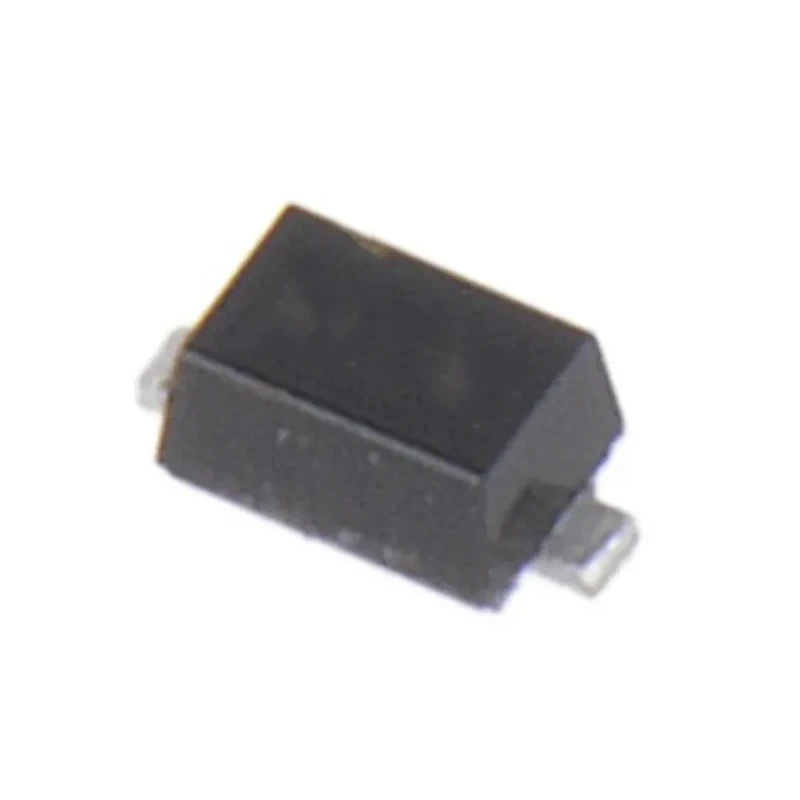

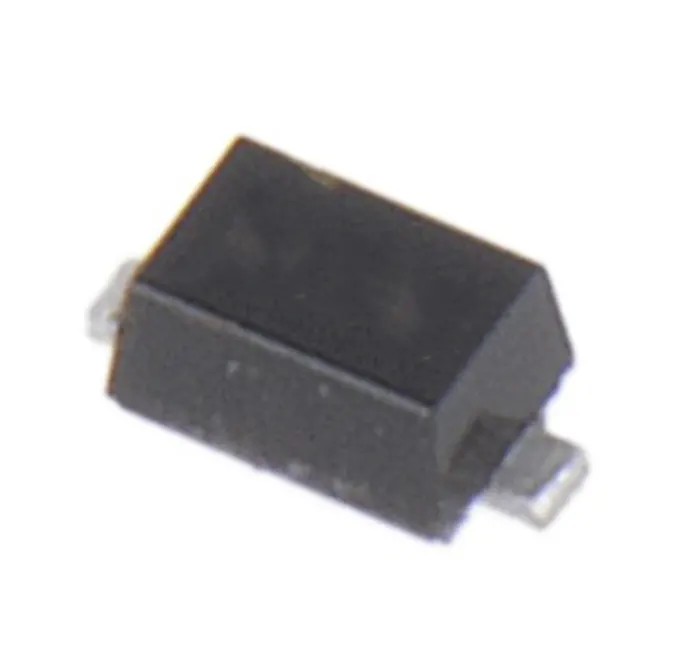

onsemi MM5Z5V6T1G is a high-reliability single Zener diode designed for voltage regulation in compact electronic assemblies.
This device features a nominal Zener voltage of 5.6 V and is rated for a maximum power dissipation of 500 mW, making it suitable for use in densely packed circuit boards where space is limited.
The diode is housed in a surface mount SOD-523 package measuring 1.7 mm in length and 0.7 mm in height, offering a low-profile footprint ideal for modern electronic devices such as cellular phones and portable handheld instruments.
It supports a maximum test current of 5 mA and operates efficiently with a maximum Zener impedance of 40 Ω to maintain voltage stability under varying currents.
The device sustains reliable operation across a wide temperature range from -65°C to 150°C and meets stringent standards including RoHS compliance and automotive quality certification AEC-Q101, underscoring its suitability for demanding automotive and industrial applications.
Additional features include a lead finish of 100% Matte Tin for excellent solderability, epoxy encapsulation rated UL94 V0 for flame retardance, and ESD rating of Class 3 (>16 kV) Human Body Model ensuring robustness against electrostatic discharge.
Provides stable voltage regulation protection for space-sensitive applications. Designed for use in cellular phones, handheld devices, and high-density PCBs. Features a nominal Zener voltage of 5.6 V and test current of 5 mA.
Maximum power dissipation rating of 500 mW ensures durability. Compact body dimensions of 1.7 mm length by 0.7 mm height. Complies with RoHS and qualified to AEC-Q101 automotive standard. Low Zener impedance of 40 Ω for efficient voltage regulation.
Wide operating temperature range from -65°C to 150°C. Lead finish is 100% Matte Tin for reliable soldering. Epoxy meets UL94 V0 standard for flame retardance.
This Zener diode series meets MSL 1 moisture sensitivity level requirements and supports solder reflow temperatures up to 260°C, facilitating modern electronic manufacturing processes.
Ideal for industrial, automotive, consumer electronics, and telecommunications applications requiring dependable voltage regulation in compact assemblies. Explore more semiconductor components and Zener diode solutions at EnvMart for your design and manufacturing needs.
Explore more products in our Zener Diodes category.
