| Country of Origin | China |
|---|---|
| Brand | onsemi |
| Height | 0.7mm |
| Length | 1.7mm |
| Model | MM5Z5V6ST1G |
| Mount Type | Surface |
| Series | MM5ZxxxST1G |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-523 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 500mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 1μA |
| Nominal Zener Voltage Vz | 5.73V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 40Ω |
| Low Body Height | 0.028 (0.7 mm) |
| Small Body Outline Dimensions | 0.047 x 0.032 (1.20 mm x 0.80 mm) |

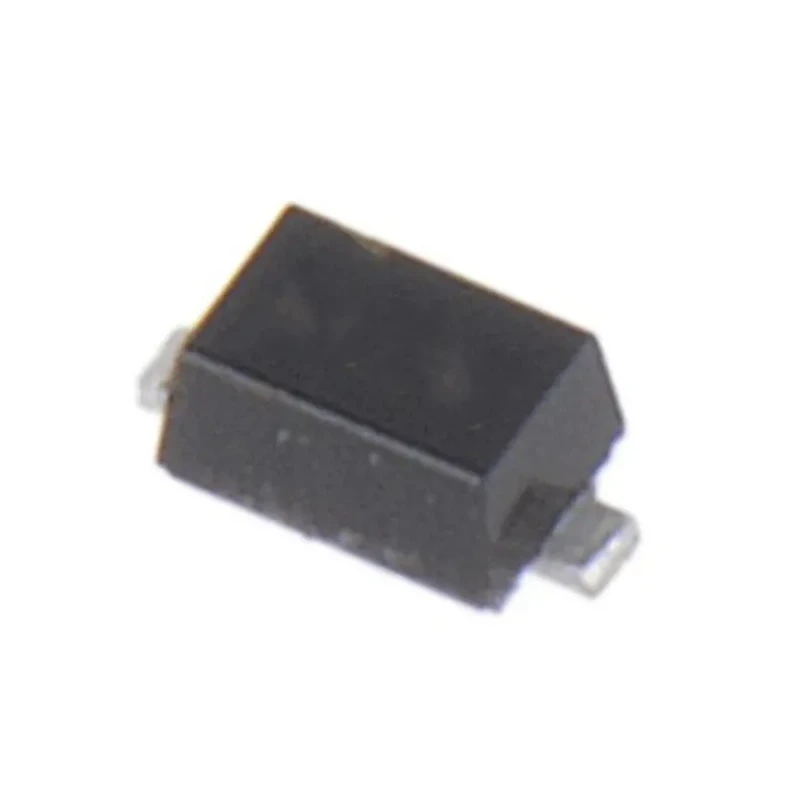

| onsemi 1, 5.73 V Zener Diode, Single 500 mW 2 % Surface 2-Pin SOD-523Brand | onsemi |
onsemi MM5Z5V6ST1G is a single Zener diode designed to provide voltage regulation protection with a nominal Zener voltage of 5.73 V and 2% tolerance. Packaged in a surface mount SOD-523 2-pin configuration, the diode supports a maximum power dissipation of 500 mW suitable for compact electronic devices.
The diode features a low profile with a body height of 0.7 mm and length of 1.7 mm, making it an excellent choice for space-constrained applications such as cellular phones, handheld portables, and densely packed PCBs.
It operates reliably within a temperature range of -65°C to 150°C and has a maximum reverse leakage current of only 1 μA, contributing to its efficiency and durability in sensitive circuits. With a maximum Zener impedance of 40Ω and a test current of 5 mA, it ensures stable voltage regulation under varying conditions.
This product complies with RoHS environmental standards and the automotive quality standard AEC-Q101, reflecting its suitability for automotive and industrial applications requiring robust and reliable semiconductor devices.
Nominal Zener voltage of 5.73 V with ±2% tolerance. Maximum power dissipation of 500 mW. Surface mount SOD-523 package with 2 pins. Operating temperature range: -65°C to 150°C. Maximum reverse leakage current of 1 μA. High ESD protection rating (Class 3, >16 kV HBM).
RoHS compliant and meets AEC-Q101 automotive standard. Suitable for cellular phones and high-density PCB applications.
This Zener diode series offers a compact and efficient solution for voltage regulation in industrial, telecommunications, consumer electronics, and automotive applications. Explore EnvMart for a broad range of semiconductor components including diodes and other discrete devices from leading manufacturers.
