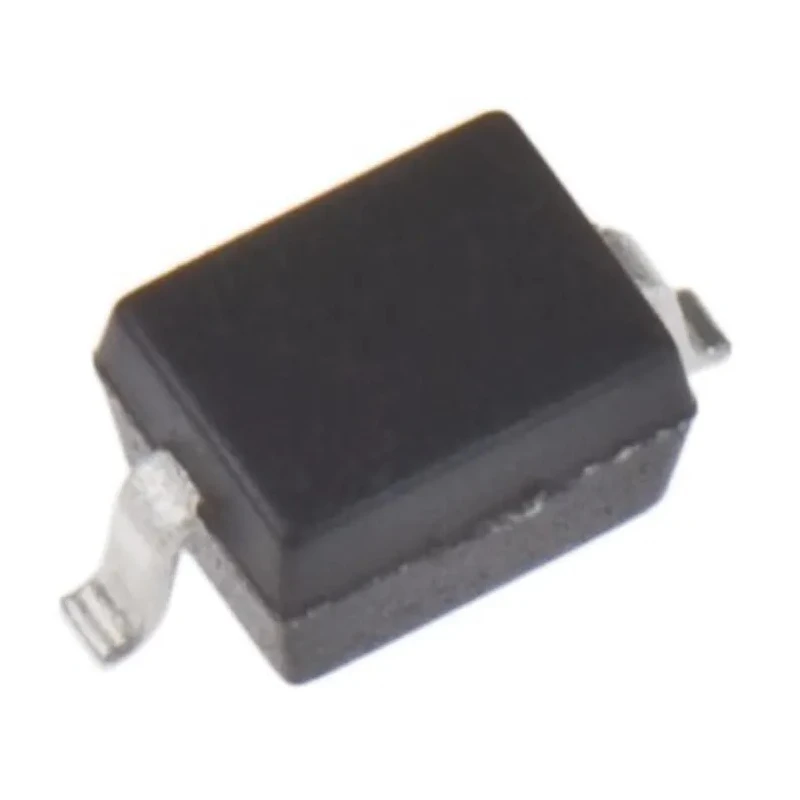

onsemi 1.33 V 300 mW 5% Surface Mount Zener Diode Single 2-Pin SOD-323 MM3Z3V3T1G
onsemi 1.33 V 300 mW 5% Surface Mount Zener Diode Single 2-Pin SOD-323 MM3Z3V3T1G
Previous
Next
onsemi 1.33 V 300 mW 5% Surface Mount Zener Diode Single 2-Pin SOD-323 MM3Z3V3T1G
onsemi 1.33 V 300 mW 5% Surface Mount Zener Diode Single 2-Pin SOD-323 MM3Z3V3T1G
Share
Facebook Twitter Pinterest Tumblr
Free Delivery in India | Lowest Global Shipping Charges
24/7 Customer Support
24/7 Customer Support

Shop with confidence knowing that our 24/7 Customer Support is always available to assist with any inquiries

24/7 Customer Support
Save up to 28% with GST Input

Avail maximum benefits from input tax mechanism on all your Business Invoices. Get GST Invoices on your business purchases. And 0% Taxes on all worldwide deliveries

Lowest Price Challenge
# Lowest Price Challenge

If you find this product anywhere at lower cost than us. Call us and we will not only match the price but also give a complimentary coupon

Lowest Price Challenge
100% Original Products

Shop with assurance, as each product we offer is 100% original, ensuring quality and authenticity with every purchase

onsemi 1.33 V 300 mW 5% Surface Mount Zener Diode Single 2-Pin SOD-323 MM3Z3V3T1G

Category Zener Diodes Brand onsemi Condition New

Specifications

Country of Origin China
Brand onsemi
Height 1mm
Length 2.7mm
Model MM3Z3V3T1G
Finish All external surfaces are corrosion resistant
Mount Type Surface
Series MM3ZxxxT1G
Maximum Operating Temperature 150°C
Case Void-free, transfer-molded plastic
Package Type SOD-323
Minimum Operating Temperature -65°C
Polarity Cathode indicated by polarity band
Package Weight 4.507 mg/unit
Mounting Position Any
Pin Count 2
Number of Elements per Chip 1
Automotive Standard AEC-Q101
Maximum Power Dissipation Pd 300mW
Flammability Rating UL94 V-0
Diode Configuration Single
Test Current It 5mA
Maximum Reverse Leakage Current 5μA
Nominal Zener Voltage Vz 3.3V
Zener Type Voltage Regulator
Maximum Zener Impedance 95Ω
Typical Voltage Temperature Coefficient 0mV/K
Leads Plated with Pb/Sn or Sb only (Pb-Free)
Low Body Height 0.035" (0.9 mm)
MAXIMUM CASE TEMPERATURE FOR SOLDERING PURPOSES 260°C for 10 Seconds
Small Body Outline Dimensions 0.067" X 0.049" (1.7 mm X 1.25 mm)
Nexperia 1, 3.3 V Zener Diode, Single 300 mW 5 % Surface 2-Pin UMDBrand Nexperia
onsemi 1, 3.3 V Zener Diode, Single 300 mW 5 % Surface 2-Pin SOD-323Brand onsemi

Key Features

  • Compact SOD-323 surface mount package designed for high-density PC boards.
  • Maximum power dissipation of 300 milliwatts suitable for low power applications.
  • Low body height of 0.035 inches (0.9 mm) enabling space-saving designs.
  • Operating temperature range from -65°C to 150°C for wide environmental conditions.
  • ESD rated at Class 3 (>16 KV) per Human Body Model for robust electrostatic protection.
  • Lead finishes are Pb-free and corrosion resistant for environmental compliance.
  • Applications include voltage regulation in portable electronics, cellular phones, and compact circuits.
  • Automotive standard compliant with AEC-Q101 for high reliability.

Product Description

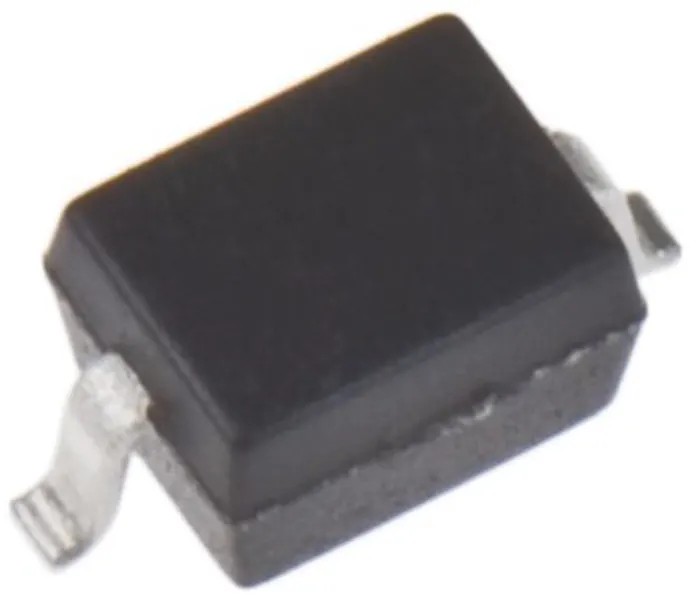

The onsemi MM3Z3V3T1G is a single Zener diode designed for voltage regulation applications, packaged in a compact SOD-323 surface mount case with 2 pins. Its nominal Zener voltage is 3.3 V with a maximum power dissipation of 300 milliwatts, providing effective voltage stabilization in space-constrained electronic assemblies.

This diode features a ±5% voltage tolerance and a test current of 5 mA, making it well-suited for precision applications in industrial, automotive, and consumer electronics sectors. It operates reliably over a temperature range from -65°C to 150°C, supporting a variety of harsh environments.

The small body outline dimension of 1.7 mm by 1.25 mm with a low height profile of 0.9 mm enables its use in modern high-density printed circuit boards. Its electrostatic discharge rating of Class 3 (>16 KV) enhances device robustness during assembly and operation.

The diode’s construction utilizes void-free, transfer-molded plastic with corrosion-resistant external surfaces. Leads are plated with Pb/Sn or Sb (Pb-Free), ensuring environmental compliance and enhanced solderability. The cathode is clearly indicated by a polarity band for correct circuit orientation.

Compact surface mount SOD-323 package for density efficient placement. Nominal Zener voltage of 3.3 V provides reliable voltage regulation. Rated for a maximum power dissipation of 300 mW. Wide operating temperature range from -65°C to 150°C.

High ESD protection standard ensuring device durability. Lead plating ensures long-term corrosion resistance and Pb-free compliance. Applications include cellular phones, portable devices, and high-density PCBs. Conforms to automotive AEC-Q101 standard for premium reliability.

This onsemi zener diode is ideal for industrial, automotive, electronic manufacturing, and HVAC equipment requiring precise voltage regulation and space-saving component design. It supports robust performance in demanding electrical environments.

Explore more semiconductor and power management solutions at EnvMart to find complementary components and industrial electronics tailored for your projects.

Explore more products in our Zener Diodes category.

onsemi 1.33 V 300 mW 5% Surface Mount Zener Diode Single 2-Pin SOD-323 MM3Z3V3T1G
Looking to purchase in bulk?
  • Purchase item in bulk quantity
  • Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The nominal Zener voltage of this model is 3.3 V, providing effective voltage regulation for various applications.

It has a maximum power dissipation of 300 milliwatts, making it suitable for low power applications.

The diode operates reliably over a temperature range from -65°C to 150°C, accommodating a variety of environmental conditions.

The small body outline dimensions of the SOD-323 package are 1.7 mm by 1.25 mm, with a low height profile of 0.9 mm.

This unit is designed for surface mounting, allowing for efficient placement on high-density printed circuit boards.

It is rated at Class 3 (>16 KV) per Human Body Model, providing robust electrostatic protection during assembly and operation.

The test current for this model is 5 mA, which is essential for its voltage regulation performance.

It complies with the AEC-Q101 automotive standard, ensuring high reliability for automotive applications.

The maximum reverse leakage current is 5 μA, which is important for maintaining circuit integrity.

The diode is constructed from void-free, transfer-molded plastic with corrosion-resistant external surfaces.

The leads are plated with Pb/Sn or Sb (Pb-Free), ensuring environmental compliance and enhanced solderability.

The flammability rating is UL94 V-0, indicating it meets stringent safety standards for flammability.
