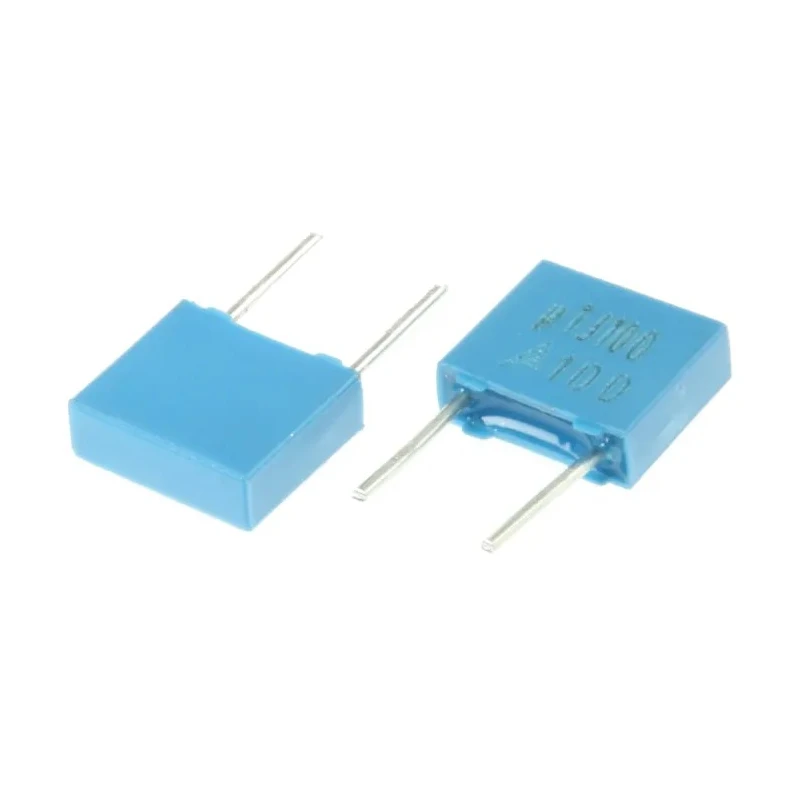

TDK B32529 Film Capacitor 100nF 63V AC 100V DC Through Hole 2 Pins B32529C1104J000

Free Delivery in India | Lowest Global Shipping Charges

TDK B32529 Film Capacitor 100nF 63V AC 100V DC Through Hole 2 Pins B32529C1104J000



Category Film Capacitor Brand TDK Condition New

Specifications

Country of Origin	Brazil
Brand	TDK
Height	6.5mm
Length	7.2mm
Model	B32529C1104J000
Width	2.5mm
Mount Type	Through Hole
Series	B32529
Maximum Operating Temperature	125°C
Capacitance	100nF
Standards/Approvals	RoHS, UL
Pin Count	2
Rated AC Voltage	63V ac
Rated DC Voltage	100V dc
Lead Pitch	5mm
Lead Diameter	0.5mm
Automotive Standard	AEC-Q200 Rev D
KEMET R82 Film Capacitor, ±5 %, 100 nF 100 V dc 63V ac, Through HoleBrand	KEMET

Key Features

High pulse strength enhances performance under transient conditions.
Stacked-film technology ensures reliable dielectric behavior.
Epoxy resin plastic case provides UL 94 V-0 flame retardant protection.
Complies with AEC-Q200 Rev D automotive standards and is RoHS and UL approved.
Lead pitch of 5mm and lead diameter of 0.5mm for standard through-hole mounting.
Suitable for blocking, coupling, decoupling, bypassing, and RFI applications particularly in automotive electronics.
Maximum operating temperature up to 125°C ensures stability in demanding environments.

Product Description

TDK B32529C1104J000 film capacitor is a high-quality passive component designed for precision electronic circuits. Featuring a nominal capacitance of 100 nanofarads (100nF), it is rated for a maximum AC voltage of 63 volts and DC voltage of 100 volts, suitable for robust automotive and industrial applications.

This capacitor employs advanced stacked-film technology within a plastic case sealed with epoxy resin achieving UL 94 V-0 flame retardant classification, assuring reliability and safety. Its through-hole mounting with 2 pins spaced at 5 mm and 0.5 mm diameter leads enables easy PCB integration.

Conforming to rigorous automotive standard AEC-Q200 Rev D and environmental directives such as RoHS, it is ideal for use in blocking, coupling, decoupling, bypassing, and radio frequency interference (RFI) suppression in automotive electronics and other demanding industrial sectors.

The compact form factor (7.2 mm length x 2.5 mm width x 6.5 mm height) and operation up to 125°C make it well-suited for applications requiring reliability in elevated temperature environments. Manufactured in Brazil, this capacitor represents precision engineering from TDK.

High pulse strength enhances performance under transient conditions. Stacked-film technology ensures reliable dielectric behavior. Epoxy resin plastic case provides UL 94 V-0 flame retardant protection. Complies with AEC-Q200 Rev D automotive standards and is RoHS and UL approved.

Compact size aids PCB layout and densification. Lead pitch and diameter designed for standard through-hole PCB assembly. Rated for 125°C maximum operating temperature for demanding applications. Typical applications include blocking, coupling, decoupling, bypassing, and RFI suppression in automotive and industrial electronics.

This TDK film capacitor is a reliable component choice within the Electronics & Electricals sector for automotive wiring harnesses, power electronics modules, and signal conditioning circuits where high performance and safety standards are critical. Browse our comprehensive Film Capacitor category for compatible products and related solutions at EnvMart.
