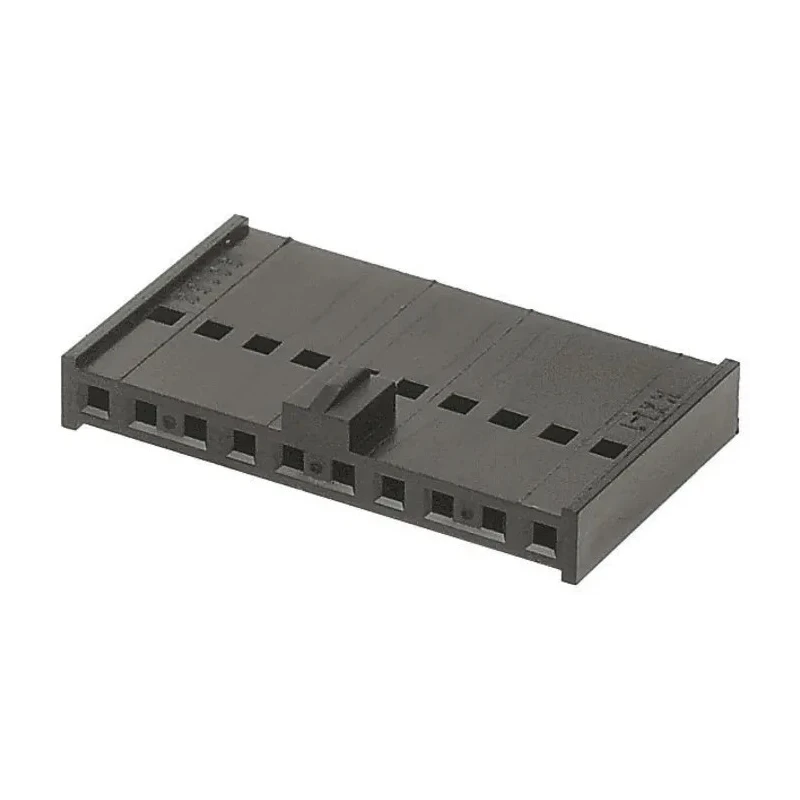

Molex C-Grid III Female Connector Housing 2.54 mm Pitch 12 Way 1 Row Straight 90156-0152
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 31.54mm |
| Width | 5.35mm |
| Mount Type | Cable |
| Housing Material | Polyphenylene Oxide |
| Series | C-Grid III |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| For Use With | C-Grid III Connector |
| Number of Contacts | 12 |
| Connector Gender | Female |
Key Features
- Offers 12 contacts in a single row configuration.
- Constructed with durable polyphenylene oxide housing material.
- Designed for cable mount type with straight orientation.
- Compatible with C-Grid III connector system for reliable connections.
- Uniform locking system ensures secure and consistent contact retention.
- Black in color for professional electronic applications.
- Complies with DIN 41651 and HE13/14 standards.
- Suitable for various commercial and consumer electronics use cases.
Product Description
Molex 90156-0152 C-Grid III female connector housing provides a robust 2.54 mm pitch spacing with 12 way contacts arranged in a single straight row. The housing, constructed from high-quality polyphenylene oxide, offers excellent mechanical and electrical properties suitable for demanding electronic environments.
This connector housing is designed for cable mounting applications where reliable, modular, and flexible interconnection systems are essential. It supports uniform locking across contacts, thus preventing disconnections and enhancing the longevity of assemblies.
Measuring 31.54 mm in length and 5.35 mm in width, this component seamlessly integrates with Molex's C-Grid III series connectors, making it ideal for a range of commercial, industrial, and consumer electronic products.
12 contacts arranged in 1 row with 2.54 mm pitch. Housing material: Polyphenylene oxide providing high durability. Cable mount with straight connector orientation. Uniform locking system for secure electrical connections.
Black color for professional and standardized identification. Standards compliance: DIN 41651, HE13/14. Wide applicability in electronic component manufacturing and repairs.
This Molex connector housing is widely used in industrial, automotive, consumer electronics, telecommunications, and laboratory equipment sectors. Its modular design allows customization and expansion for complex wiring and PCB connections.
Explore a comprehensive range of Connector Housings and related components in the Electronics & Electricals category at EnvMart for quality and reliability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch size of this connector housing is 2.54 mm.
It has 12 contacts arranged in a single row configuration.
The connector housing measures 31.54 mm in length and 5.35 mm in width.
The housing is constructed from polyphenylene oxide, which provides excellent mechanical and electrical properties.
This model supports cable mounting applications.
Yes, it is designed for use with the C-Grid III connector system.
The connector housing has a straight orientation.
It complies with DIN 41651 and HE13/14 standards.
It is suitable for various commercial and consumer electronics use cases, including industrial, automotive, telecommunications, and laboratory equipment.
It features a uniform locking system that ensures secure and consistent contact retention.
The uniform locking system prevents disconnections, which enhances the longevity of the assemblies.
The country of origin for this connector housing is India.
