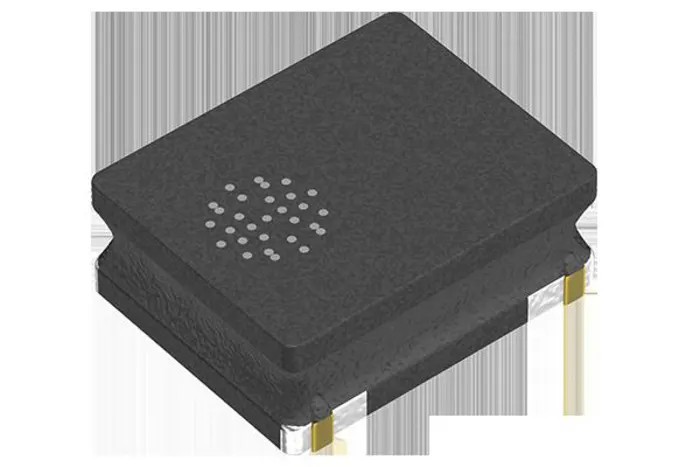

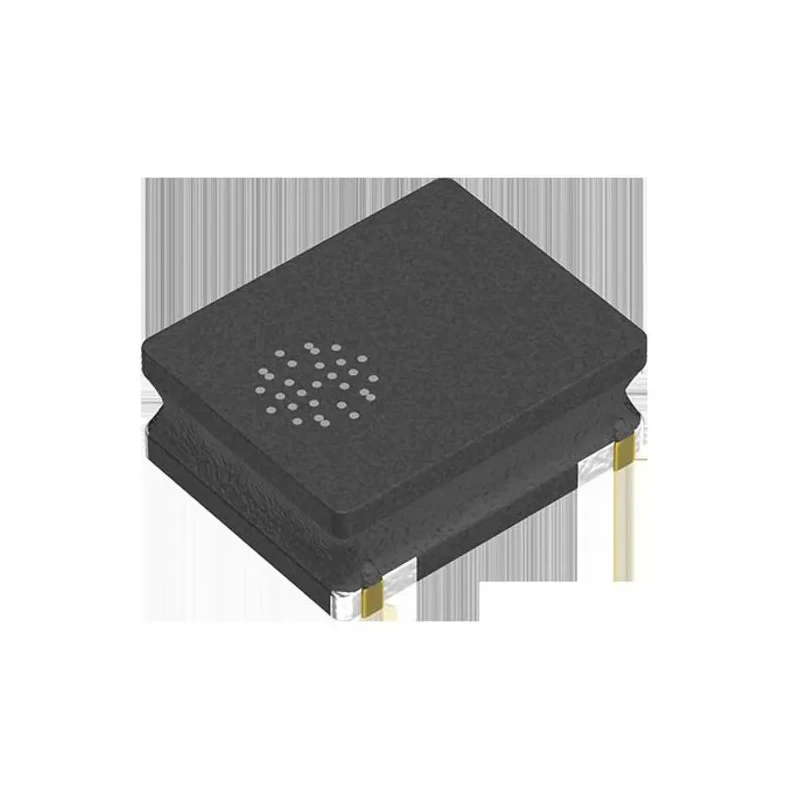

TDK 252010 Shielded Wirewound Surface Mount Inductor with Ferrite Core 2.2 μH ±20% 1.58A IDC VLS252010CX-2R2M-1
Specifications
| Country of Origin | China |
|---|---|
| Brand | TDK |
| Height | 1mm |
| Length | 2.5mm |
| Model | VLS252010CX-2R2M-1 |
| Depth | 2mm |
| Series | VLS-CX-1 |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 2.2μH |
| Standards/Approvals | BrCl, Halogen Free, Lead Free, Pb, REACH, RoHS, SVHC-free |
| Package/Case | 252010 |
| Maximum DC Current | 1.58A |
| Maximum DC Resistance | 126mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Inductor Construction | Wirewound |
| Application guides | Smart phones/tablets |
Key Features
- This inductor features a ferrite core construction providing strong magnetic shielding.
- It supports a package size of 252010 with dimensions 2.5 mm length, 2 mm depth, and 1 mm height.
- Designed for surface mount termination style suitable for high-density mounting on PCB.
- Operates reliably within temperature ranges from -40°C up to 105°C.
- Maximum DC resistance is low at 126mΩ improving efficiency in power circuits.
- Compliance with BrCl, Halogen Free, Lead Free, Pb, REACH, RoHS, SVHC-free standards ensures environmental safety.
- Application guidance includes use in smartphones, tablets, HDDs, SSDs, digital cameras, and compact power supply modules.
Product Description
TDK VLS252010CX-2R2M-1 shielded wirewound surface mount inductor is engineered with a ferrite core designed for superior magnetic shielding in power circuits. Its 252010 package size with compact dimensions (2.5 mm length, 2 mm depth, 1 mm height) supports high-density mounting in advanced electronic devices.
This inductor provides an inductance of 2.2 μH with a tolerance of ±20%, and it can handle a maximum DC current of 1.58 A. Its maximum DC resistance of 126mΩ ensures lower power loss, suitable for efficient circuit operation.
Designed for surface mount termination style, it withstands operational temperatures from -40°C to 105°C, making it adaptable for a wide range of industrial and consumer electronics applications.
Manufactured to meet rigorous environmental standards including BrCl, Halogen Free, Lead Free, Pb Free, REACH, RoHS, and SVHC-free compliance, this component also features a wirewound construction ensuring durability and performance.
Typical applications include integration in smartphones, tablet terminals, HDDs, SSDs, digital video cameras, digital still cameras, mobile display panels, portable game devices, and compact power supply modules. Its magnetic shield construction allows compatibility with high-density mounting and larger currents.
This inductor features a ferrite core construction providing strong magnetic shielding. It supports a package size of 252010 with dimensions 2.5 mm length, 2 mm depth, and 1 mm height. Designed for surface mount termination style suitable for high-density mounting on PCB.
Operates reliably within temperature ranges from -40°C up to 105°C. Maximum DC resistance is low at 126mΩ improving efficiency in power circuits. Compliance with BrCl, Halogen Free, Lead Free, Pb, REACH, RoHS, SVHC-free standards ensures environmental safety.
Application guidance includes use in smartphones, tablets, HDDs, SSDs, digital cameras, and compact power supply modules.
Explore the comprehensive range of Surface Mount Inductors and related electronic components on EnvMart for industrial, telecommunications, consumer electronics, and embedded systems applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 2.2 μH with a tolerance of ±20%.
It can handle a maximum DC current of 1.58 A.
The dimensions are 2.5 mm in length, 2 mm in depth, and 1 mm in height.
The inductor features a surface mount termination style, suitable for high-density mounting on PCBs.
The maximum DC resistance is 126 mΩ, which helps improve efficiency in power circuits.
It operates reliably within a temperature range of -40°C to 105°C.
This inductor features a ferrite core construction and is wirewound for performance.
It complies with BrCl, Halogen Free, Lead Free, Pb Free, REACH, RoHS, and SVHC-free standards.
Typical applications include smartphones, tablets, HDDs, SSDs, digital cameras, and compact power supply modules.
The inductor supports a package size of 252010.
This model belongs to the VLS-CX-1 series.
The country of origin for this inductor is China.
