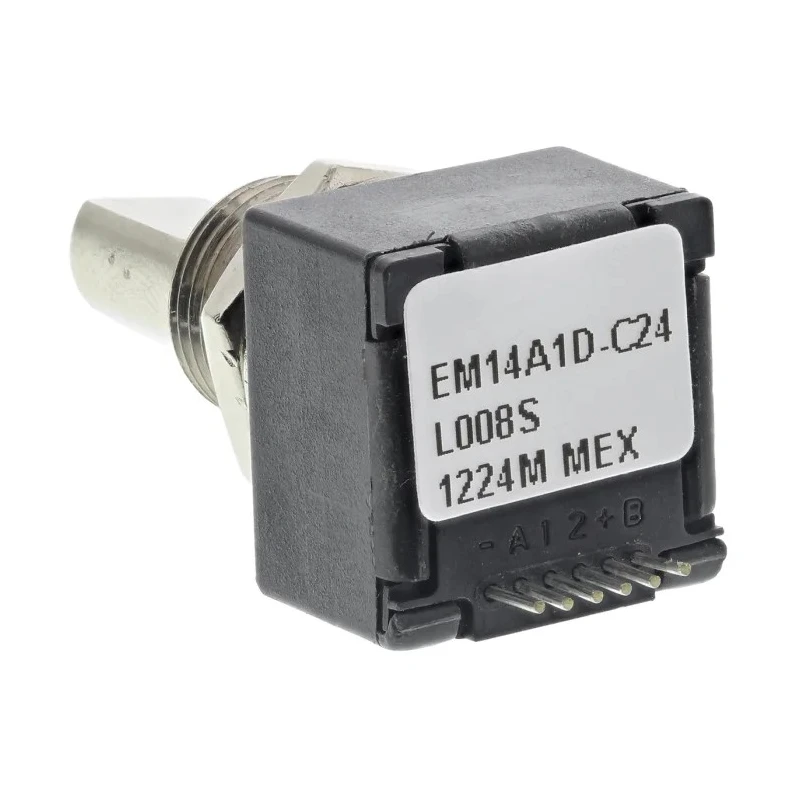

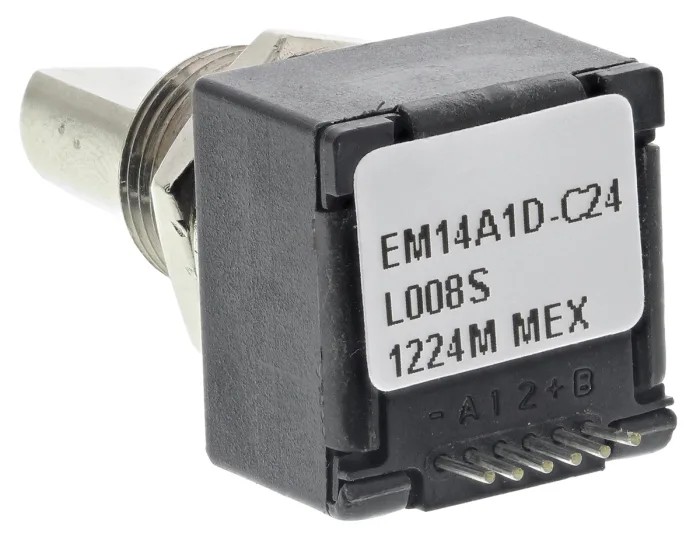

Bourns EM14 Series 5V dc Optical Incremental Encoder 8 ppr Quadrature Signal Flatted Shaft 6.35 mm

Bourns EM14A1D-C24-L008S is a high-quality optical incremental encoder from the EM14 Series designed for motion control applications requiring precision and reliability. Operating at a supply voltage of 5V dc, it delivers 8 pulses per revolution with a quadrature output signal suitable for position and speed sensing.

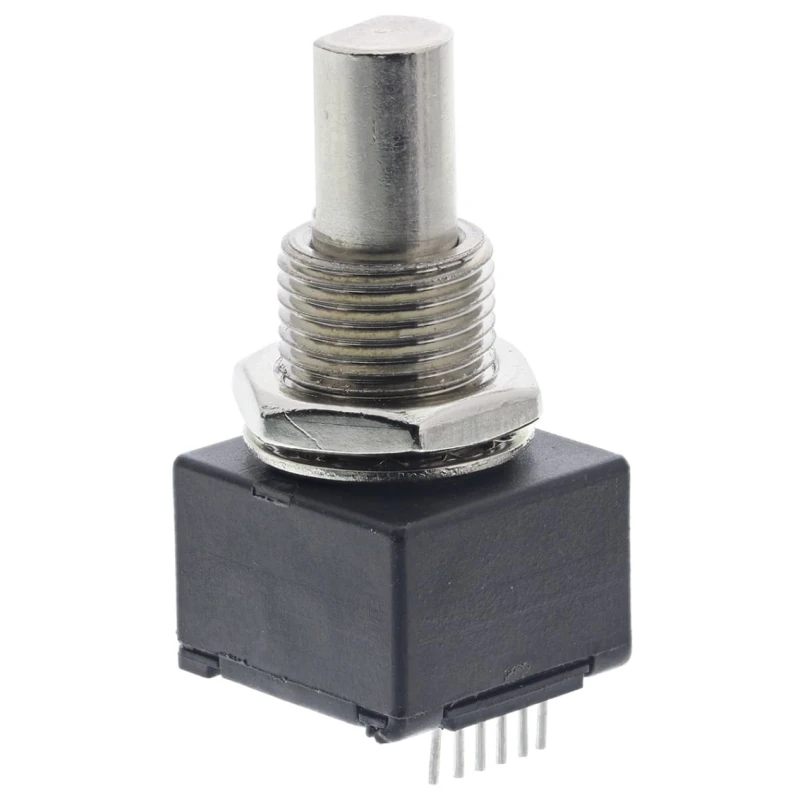

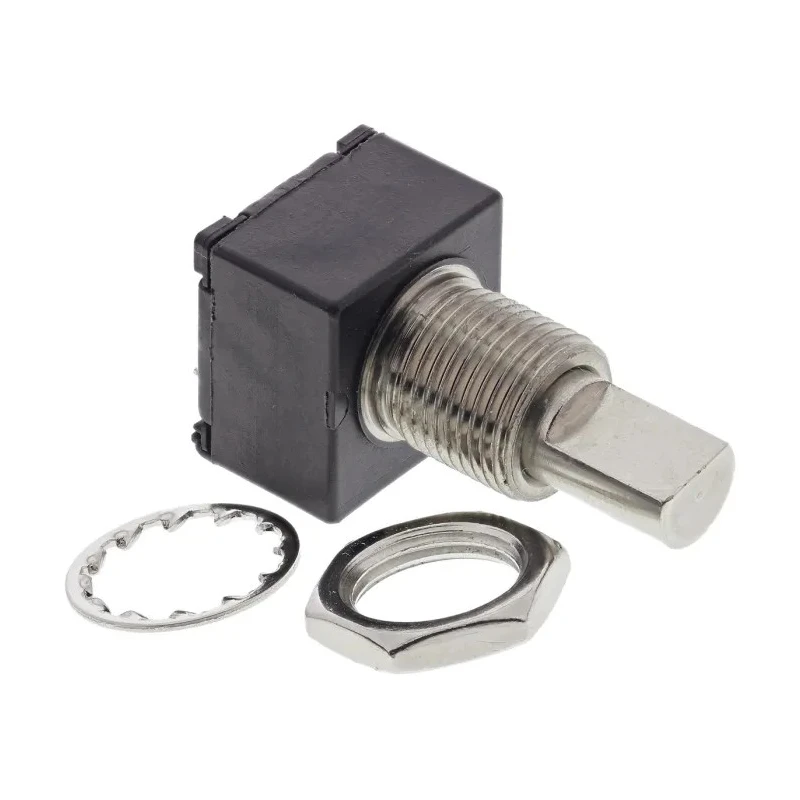

This encoder features a flatted type shaft with a sturdy 6.35 mm diameter and panel mount configuration, allowing easy installation in various industrial setups. The shaft is equipped with a splashproof seal providing IP54 protection against dust ingress and water splashes, enhancing durability in harsh environments.

With compatibility for HCMOS, CMOS, and TTL output signal types, the encoder can integrate seamlessly into diverse interface platforms. It supports a maximum rotation speed of 120 rpm and operates efficiently over a wide temperature range from -40°C to 70°C, making it suitable for demanding industrial and automation scenarios.

The device is built for high rotational life cycles, ensuring long-term operation without performance degradation. Its axial multi-purpose pin terminal facilitates reliable and versatile electrical connections. Typical industrial uses include human/machine interface (HMI) controls, automation systems, robotics, and machinery requiring precise rotational feedback.

Compact 14 mm rotary optical encoder with panel mount design. Flatted shaft style with 6.35 mm diameter for secure mechanical coupling. IP54 splashproof shaft seal protecting against dust and moisture. Supports quadrature signals compatible with HCMOS, CMOS, and TTL standards.

Wide operating temperature range from -40°C to 70°C for harsh conditions. Max speed 120 rpm suitable for precise motion control applications. Axial multi-purpose pin terminals for flexible electrical interface. Robust construction assures long rotational life and reliability.

Ideal for human-machine interface and industrial automation tasks.

Manufactured in Mexico, this Bourns EM14 encoder series product is engineered to meet stringent RoHS compliance and quality standards. Explore the extensive range of Motion Control Sensors available at EnvMart for your industrial and automation equipment needs.
