Reckmann Thermocouple Connector Panel for Use with Type K Thermocouple KM Series R9-1786

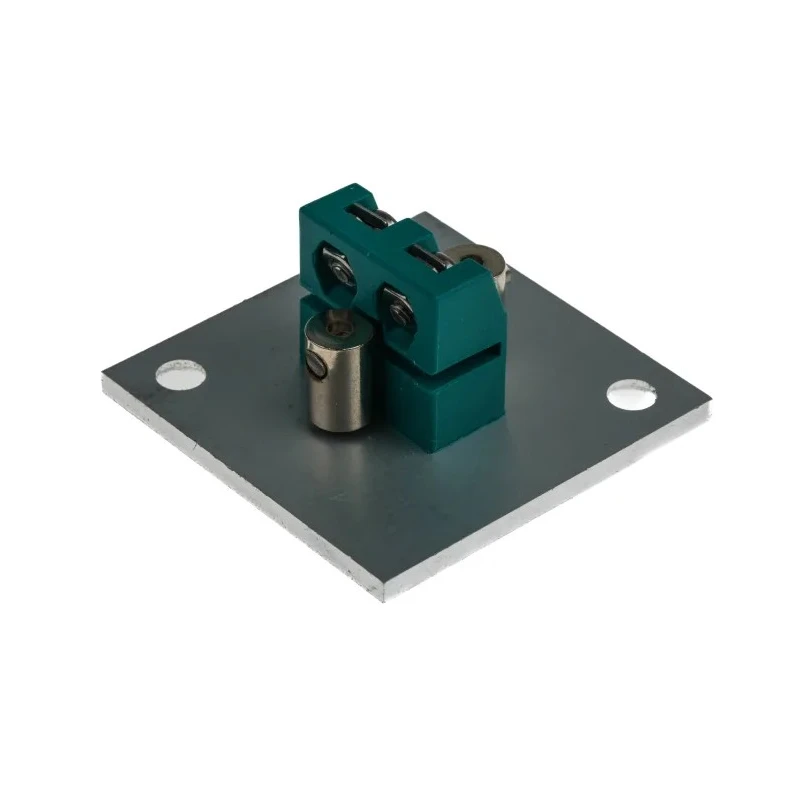

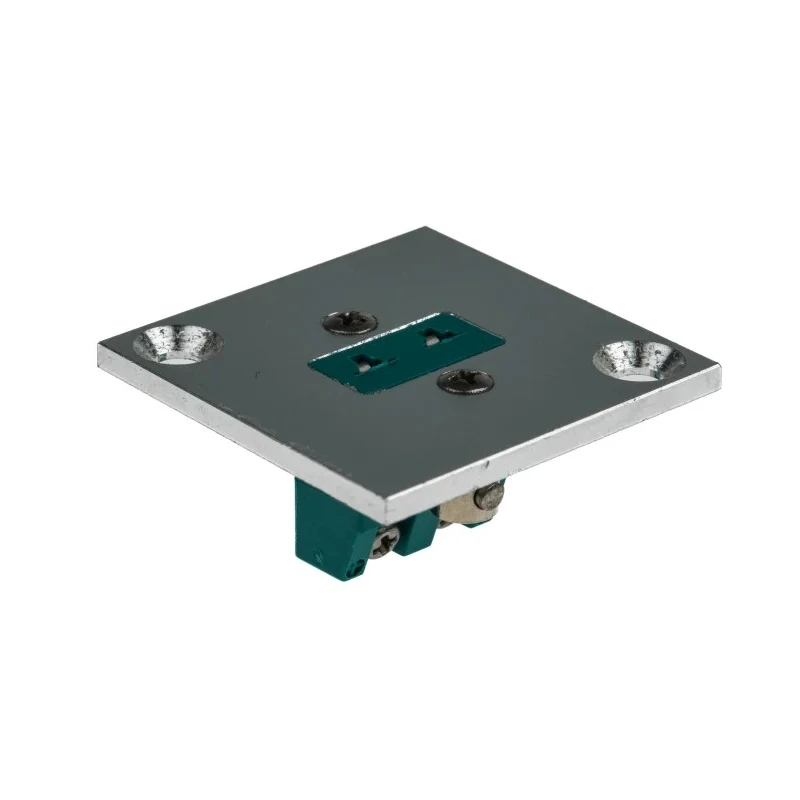

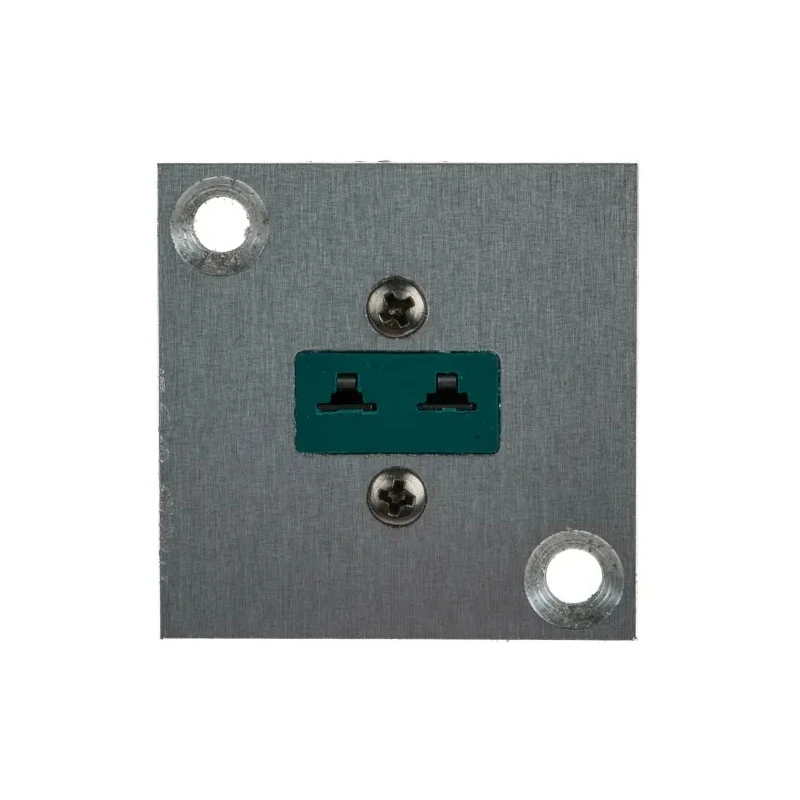

Reckmann R9-1786 Thermocouple Connector Panel from the KM series is an industrial-grade accessory designed specifically for use with Type K thermocouples. Featuring a front plate made of anodised aluminium, it provides robust mechanical protection and excellent resistance to corrosion, making it ideal for control panel or device installation in various industrial environments.

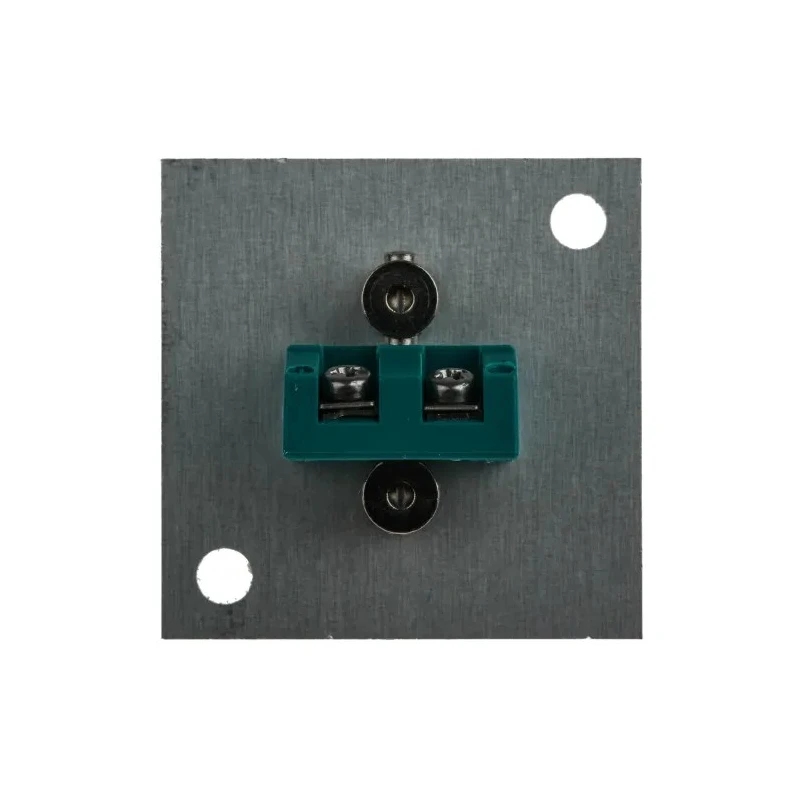

The connector panel is equipped with flat sockets made from high-quality thermal materials combined with screw terminals that ensure secure and stable electrical connections. It facilitates connections for miniature compensation connectors commonly used in precise temperature measurement setups up to 200 °C.

The panel is colour-coded following IEC 584-3 1989 and BS4937 Part 30 1993 standards, which reduces risks of wiring errors and enhances operational safety. Its polarised contacts prevent reverse polarity, thus protecting connected devices and maintaining measurement integrity.

The design accommodates both standard and miniature connection types, suitable for thermocouples and their extension or compensating cables, enabling precise temperature control without introducing thermoelectromotive forces.

The front plate is made from anodised aluminium ensuring durability and corrosion resistance. Flat sockets are constructed from thermal material and include screw terminals for secure connections. Suitable for miniature compensation connectors used in thermocouple circuits.

Supports temperature measurement up to 200 degrees Celsius. Colour-coded according to IEC 584-3 1989 and BS4937 Part 30 1993 standards to prevent connection errors. Designed to prevent thermoelectromotive force interference for accurate measurements.

Polarised contacts prevent reverse polarity connections enhancing safety and reliability. Compatible with miniature Thermocouple Connectors for single and multiple measuring circuits.

This connector panel is suitable for a wide range of industries including manufacturing, HVAC systems, laboratory testing, and industrial automation where accurate temperature measurement is critical. It integrates seamlessly into control panels, providing reliable and repeatable connection performance.
