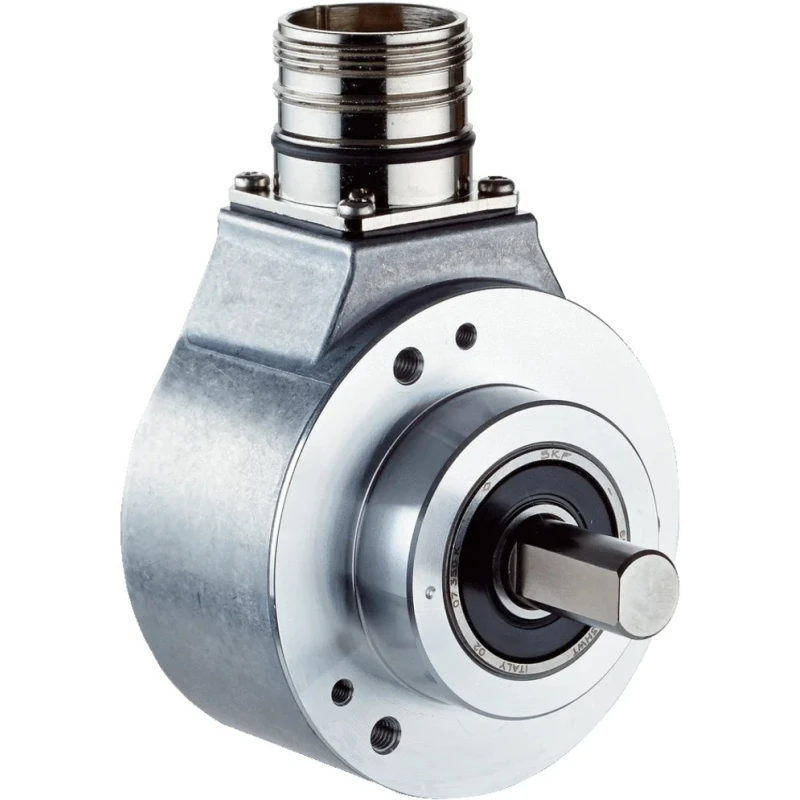

SICK DBS60 Core Series Incremental Encoder 30V, 100 PPR, HTL, TTL Signal, Solid Shaft 10 mm DBS60

SICK DBS60 Core Series Incremental Encoder DBS60 operates with a supply voltage up to 30V and delivers precise incremental position feedback with 100 pulses per revolution using HTL and TTL output signals. The solid type shaft measures 10 mm in diameter and is engineered for durability and precise coupling in motion control systems.

This encoder's robust design features a compact diameter of 58 mm and depth of 44.35 mm, housed to provide IP65 protection against dust and water ingress, making it suitable for industrial and automation environments. It can withstand operating temperatures ranging from -30°C to 100°C, enabling use in demanding factory and logistics automation applications.

Equipped with plug-in terminals for straightforward installation, the DBS60 meets stringent electromagnetic compatibility standards EN 61000-6-2 and EN 61000-6-3. The encoder supports switching frequencies of up to 300 kHz and maximum rotational speeds up to 9000 rpm.

Applications include precise measurement of position, speed, and distance across asynchronous motors, elevators, packaging machines, warehousing and transport logistics, roller conveyors, slat conveyors, printed circuit board devices, transfer systems, and elevator car control.

The DBS60 Core Series is designed to reduce storage costs with a wide voltage range interface combining 5 V TTL and 24 V HTL or TTL signals. Its rugged construction ensures durability with large bearing distances allowing high shaft loads and longer service life.

Incremental encoder technology enables precise measurement of position, speed, and distance. 100 pulses per revolution (ppr) resolution supports accurate rotary sensing. TTL and HTL compatible output signals facilitate integration flexibility.

Solid shaft with 10 mm diameter ensures reliable mechanical coupling. Compact 58 mm diameter housing with IP65 rating protects in industrial environments. Wide temperature operation from -30°C to 100°C. Supports maximum rotational speed of 9000 rpm and switching frequency of 300 kHz.

Plug-in terminal type for easy and secure electrical connection. Complies with EN 61000-6-2 and EN 61000-6-3 electromagnetic standards. Manufactured in Malaysia ensuring high quality and durability. Explore more precision industrial Encoders and motion control sensors at EnvMart for your automation needs.
