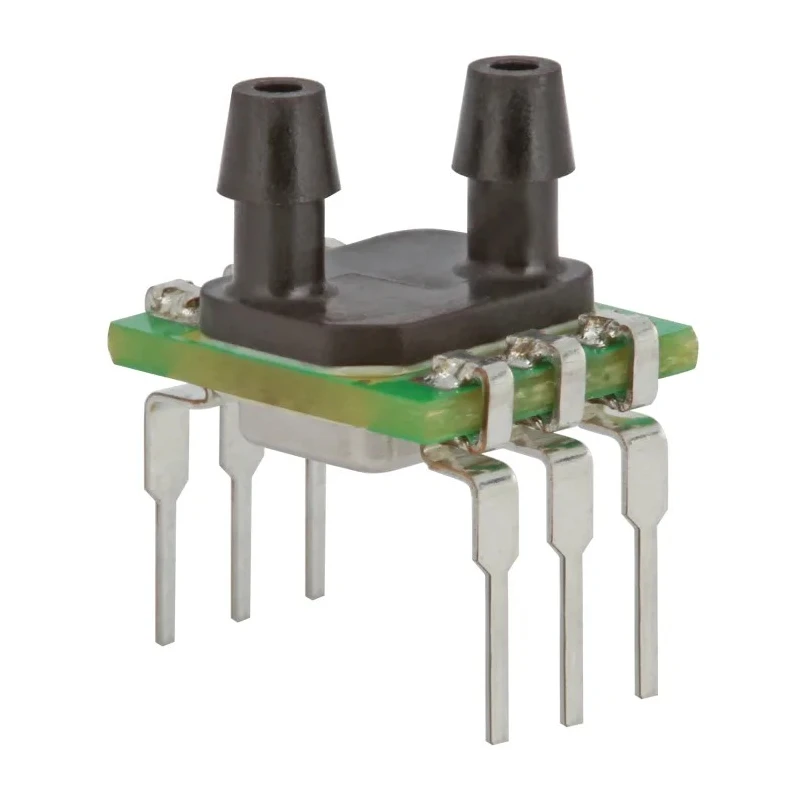

Honeywell Technologies Piezoresistive Pressure Sensor Through Hole 6 DIP ABP2DDAN005NDAA5XX
Specifications
| Country of Origin | China |
|---|---|
| Accuracy | ±0.25 % |
| Brand | Honeywell Technologies |
| Maximum Operating Pressure | 100 kPa |
| Height | 7mm |
| Length | 7.3mm |
| Model | ABP2DDAN005NDAA5XX |
| Sensor Type | Piezoresistive Pressure Sensor |
| Width | 6.3mm |
| Mount Type | Through Hole |
| Series | ABP2 |
| Maximum Operating Temperature | 110°C |
| Port Type | Dual Axial Barbed |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 6 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 1.8V |
| Minimum Operating Pressure | 600Pa |
| Maximum Overload Pressure | 16bar |
Key Features
- The sensor supports a maximum overload pressure of 16 bar.
- It operates reliably within a temperature range of -40°C to 110°C.
- The device requires a supply voltage between 1.8V and 3.6V.
- Accuracy of the sensor is ±0.25%, ensuring precise measurements.
- The package type is DIP with 6 pins and dual axial barbed ports for pressure connection.
- Maximum operating pressure is rated at 100 kPa with a minimum operating pressure of 600 Pa.
- The sensor dimensions are compact with height 7mm, length 7.3mm, and width 6.3mm.
- RoHS compliant manufacturing ensures environmental safety standards.
Product Description
Honeywell Technologies ABP2DDAN005NDAA5XX is a high-precision piezoresistive pressure sensor packaged in a through hole 6 DIP layout, engineered for demanding electronic component applications.
This sensor provides a digital output signal suitable for monitoring pressures up to 100 kPa with a maximum overload pressure capacity of 16 bar. Its dual axial barbed ports facilitate fluid or gas pressure interfacing with a stable and highly sensitive response.
The device operates over a wide temperature range from -40°C to 110°C, making it suitable for industrial environmental conditions. Its power supply requirements range from 1.8V to 3.6V, optimizing power consumption in embedded systems.
The sensor’s ±0.25% accuracy ensures reliable measurement fidelity, and long-term stability supports extended operational life with minimal drift. Compact dimensions of 7mm height, 7.3mm length, and 6.3mm width enable ease of PCB integration in space-constrained designs.
The ABP2 series sensor ICs are RoHS compliant and manufactured in China, suitable for use in electronic, industrial, manufacturing, HVAC, and automotive sensor applications where precise pressure monitoring is critical.
Typical use cases include fluid pressure sensing in hydraulic or pneumatic systems, industrial process control, and environmental monitoring instruments. The sensor’s maximum overload pressure is 16 bar to prevent damage under extreme conditions.
Operating temperature range from -40°C to 110°C supports harsh environments. Pin count of 6 matches DIP package specifications for easy mounting. Dual axial barbed ports support flexible pressure fluid interface options.
Maintains high accuracy and stability required by industrial and laboratory instruments. Explore the wide range of Pressure Sensor ICs and components at EnvMart for expert solutions and quality assurance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this sensor is 100 kPa, with a maximum overload pressure capacity of 16 bar.
This model has an accuracy of ±0.25%, ensuring reliable measurement fidelity.
The sensor has compact dimensions of 7mm in height, 7.3mm in length, and 6.3mm in width.
It operates reliably within a temperature range of -40°C to 110°C, making it suitable for harsh environments.
The sensor is equipped with dual axial barbed ports for flexible pressure fluid interfacing.
The device requires a supply voltage between 1.8V and 3.6V, optimizing power consumption in embedded systems.
This sensor features a DIP package with 6 pins, suitable for through-hole mounting.
Yes, the sensor is RoHS compliant, ensuring it meets environmental safety standards.
It is suitable for electronic, industrial, manufacturing, HVAC, and automotive applications where precise pressure monitoring is critical.
The minimum operating pressure for this model is 600 Pa.
This model is part of the ABP2 series of pressure sensor ICs.
The sensor is manufactured in China.
