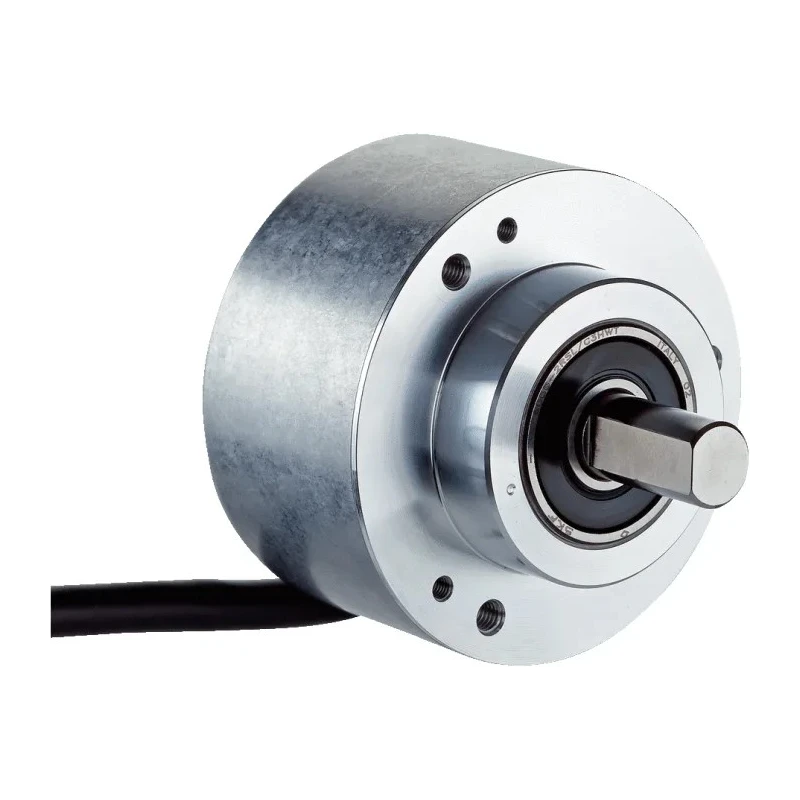

SICK DBS60 Core Series Incremental Encoder, 30V, 3600 ppr, TTL/HTL Output, Solid Shaft 10mm DBS60E-S4FK03600

SICK DBS60E-S4FK03600 Incremental Encoder is engineered for precision and durability in industrial automation applications, featuring a robust solid shaft design and advanced signal output. With a resolution of 3600 pulses per revolution, this encoder accurately measures position and speed, providing essential feedback for motion control systems.

The device supports both TTL and HTL output signals, facilitating seamless integration with various controllers, PLCs, and automation networks. Its solid shaft with a diameter of 10 mm guarantees reliable mechanical coupling, while the maximum revolution rating of 9000 rpm enables the encoder to be used in high-speed applications such as conveyors, elevators, and packaging machinery.

Provides 3600 pulses per revolution for accurate position and speed measurement. Supports TTL and HTL output signals for flexible interfacing with control systems. Solid shaft design with a diameter of 10 mm ensures secure mechanical integration.

Operates over a wide supply voltage range up to 30V DC, suitable for various industrial environments. Compact housing with 58mm diameter and IP65 protection for enhanced durability. Capable of up to 9000 rpm maximum revolution for dynamic motion control tasks.

Suitable for measuring position, speed, and distance in factory and logistics automation. Full shaft mount type allows versatile installation options. Works reliably in demanding conditions between -30°C and 85°C.

This encoder is IP65 rated for dust and moisture resistance, making it ideal for tough factory environments. It operates effectively in a wide temperature range from -30°C to 85°C, supporting reliable performance throughout demanding industrial processes.

The SICK DBS60 Core Series is known for ruggedness and flexibility, with diverse flange and shaft versions to meet different installation requirements. The full shaft mount facilitates straightforward mechanical setup, and the cable interface ensures secure electrical connections.

Applications include asynchronous motors, elevator systems, warehousing and transport logistics, PCB manufacturing, and speed measurement on conveyor systems. The encoder's compact dimensions (58mm diameter, 44.35mm depth) allow for installation in tight spaces while maintaining high operational efficiency.

For engineers seeking reliable incremental feedback in factory and logistics automation, the SICK DBS60E-S4FK03600 delivers outstanding performance and integration. Explore SICK Encoders and related motion control solutions in the EnvMart automation category.
