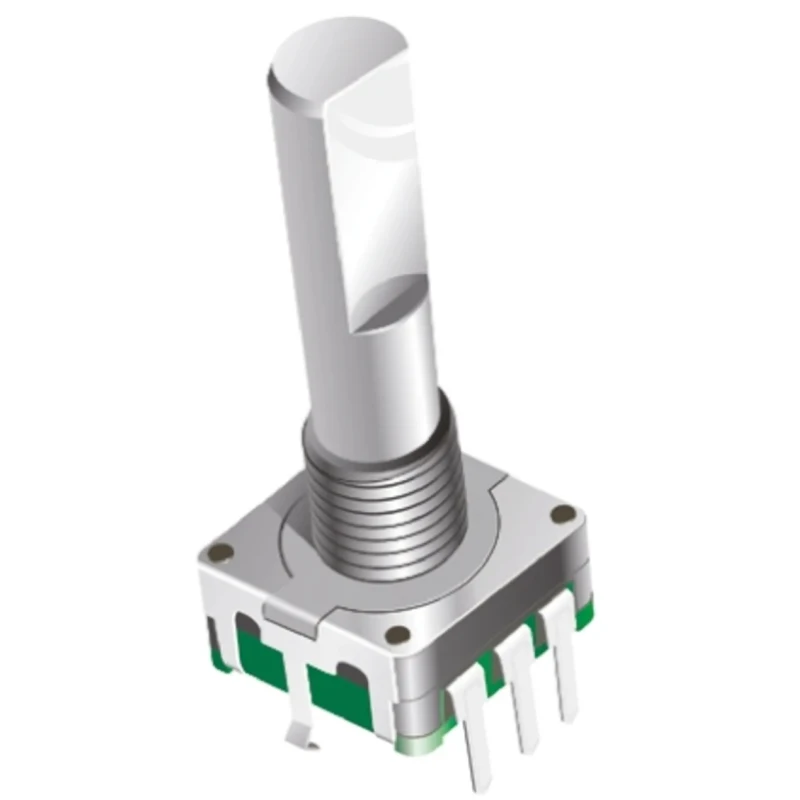

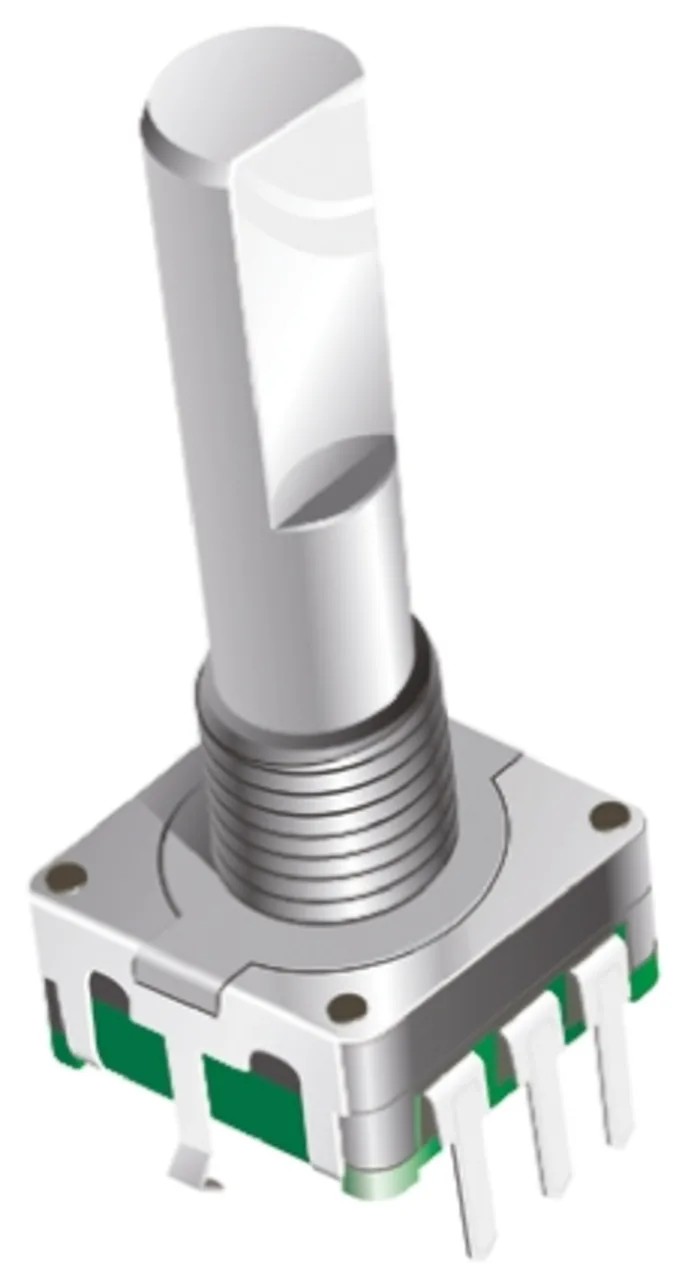

Bourns Incremental Mechanical Rotary Encoder 12 ppr with 6 mm Flat Shaft Through Hole PEC11R-4020F-N0012
Specifications
| Country of Origin | China |
|---|---|
| Brand | Bourns |
| Model | PEC11R-4020F-N0012 |
| Mount Type | Through Hole |
| Current Rating | 10mA |
| Series | PEC11R |
| Shaft Diameter | 6mm |
| Shaft Length | 20mm |
| Pulses per Revolution | 12ppr |
| Standards/Approvals | RoHS |
| Termination Style | Surface Mount |
| Shaft Style | Flat |
| Encoder Reading | Incremental |
| Encoder Signal | Digital Square Wave |
| Index Output | Not Indexed |
| Maximum Operating Speed | 60rpm |
Key Features
- This encoder provides a digital square wave output signal for precise position sensing.
- The shaft length measures 20 mm and features a flat style for secure coupling.
- It supports a maximum operating speed of 60 rpm for moderate-speed applications.
- The compact design includes surface mount termination and complies with RoHS standards.
- Current rating is 10 mA, making it suitable for various low-current control systems.
- The product is made in China and part of the PEC11R series known for reliability.
Product Description
Bourns PEC11R-4020F-N0012 incremental mechanical rotary encoder features a 12 pulses per revolution output and a 6 mm flat shaft, designed for through-hole mounting in electronic and industrial applications.
The device generates a digital square wave output signal and is not indexed, allowing continuous rotation measurement without returning to a home position. Its 20 mm shaft length with a flat profile ensures secure mechanical coupling.
This rotary encoder is ideal for use in industrial controls, robotics, audio equipment, and automation systems requiring reliable position feedback at moderate speeds up to 60 rpm.
The surface mount termination style facilitates straightforward PCB integration, while the RoHS compliance guarantees environmental and safety standards adherence. With a current rating of 10 mA and compact form factor, it supports precise incremental position sensing in various manufacturing, laboratory, and industrial equipment settings.
This encoder delivers a digital square wave signal output for accurate feedback. It features a 6 mm diameter flat shaft with a length of 20 mm for secure installation. Maximum operating speed is limited to 60 rpm, suitable for many control applications.
The mount type is through hole for robust mechanical support. The product is RoHS compliant and built as part of the trusted PEC11R series. Manufactured in China meeting quality manufacturing standards.
This product is suitable for use in industrial automation, instrumentation, and audio device settings. Browse EnvMart's extensive rotary encoder selection for compatible solutions and accessories.
Explore more products in our Rotary Encoders category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model generates a digital square wave output signal for precise position sensing.
The maximum operating speed is limited to 60 rpm, making it suitable for moderate-speed applications.
It features a shaft diameter of 6 mm, designed for secure coupling.
This encoder provides 12 pulses per revolution (ppr), allowing for precise incremental position feedback.
The current rating is 10 mA, which is suitable for various low-current control systems.
It uses a through hole mounting type for robust mechanical support in applications.
The shaft length measures 20 mm, providing adequate length for secure installation.
Yes, it is RoHS compliant, ensuring adherence to environmental and safety standards.
It features a surface mount termination style, facilitating straightforward PCB integration.
This encoder is part of the PEC11R series, known for its reliability in various applications.
This model is not indexed, allowing for continuous rotation measurement without returning to a home position.
It is suitable for use in industrial controls, robotics, audio equipment, and automation systems requiring reliable position feedback.
